11–60

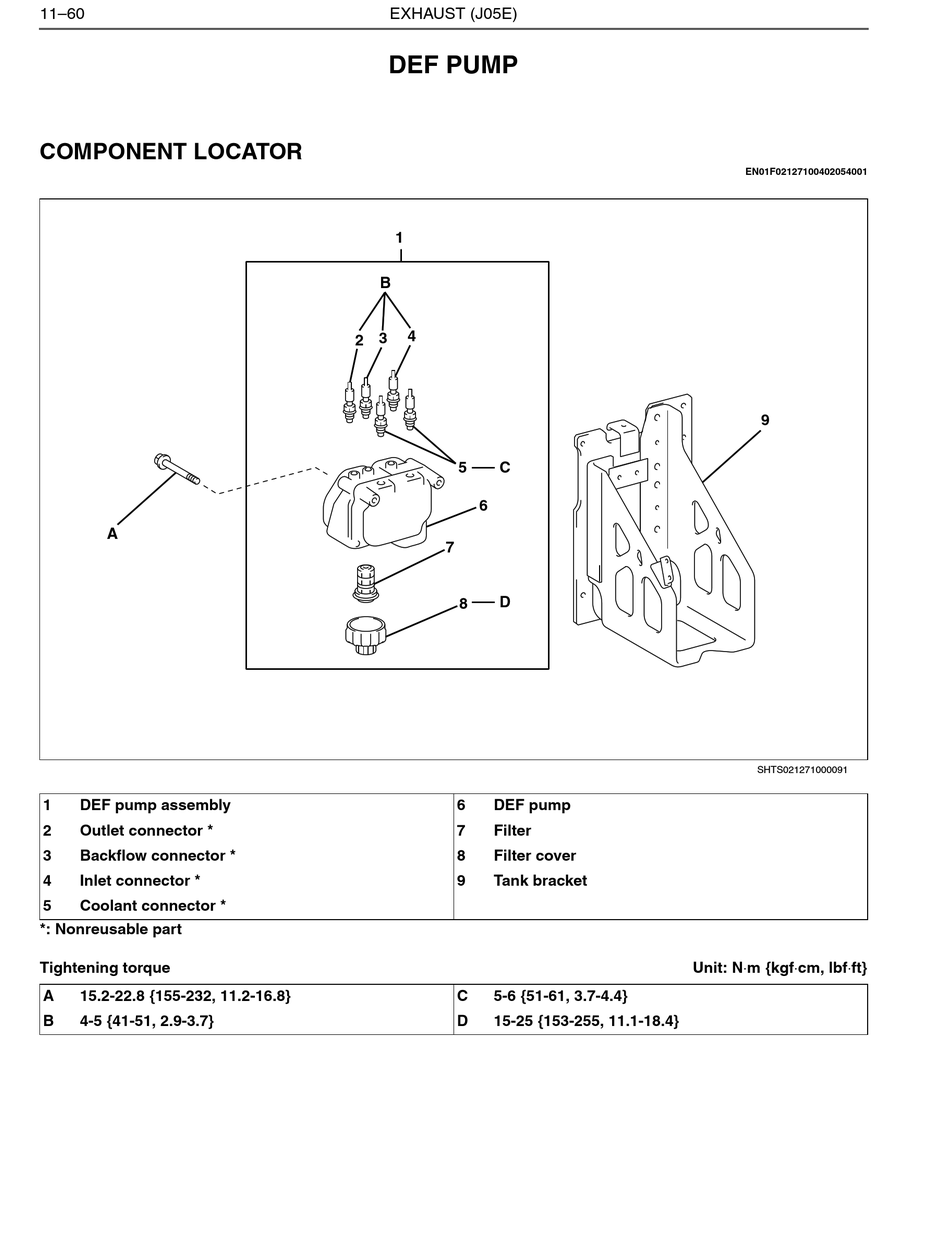

COMPONENT LOCATOR

A
1 DEF pump assembly
2 Outlet connector *
3 Backflow connector *
4 Inlet connector *
5 Coolant connector *
*: Nonreusable part
Tightening torque
A 15.2-22.8 {155-232, 11.2-16.8}
B 4-5 {41-51, 2.9-3.7}
EXHAUST (J05E)

DEF PUMP

1
B
4
2 3
5 C
6
7
D
8
6 DEF pump
7 Filter
8 Filter cover
9 Tank bracket
C 5-6 {51-61, 3.7-4.4}
D 15-25 {153-255, 11.1-18.4}
EN01F02127100402054001
9
SHTS021271000091
Unit: Nm {kgfcm, lbfft}
