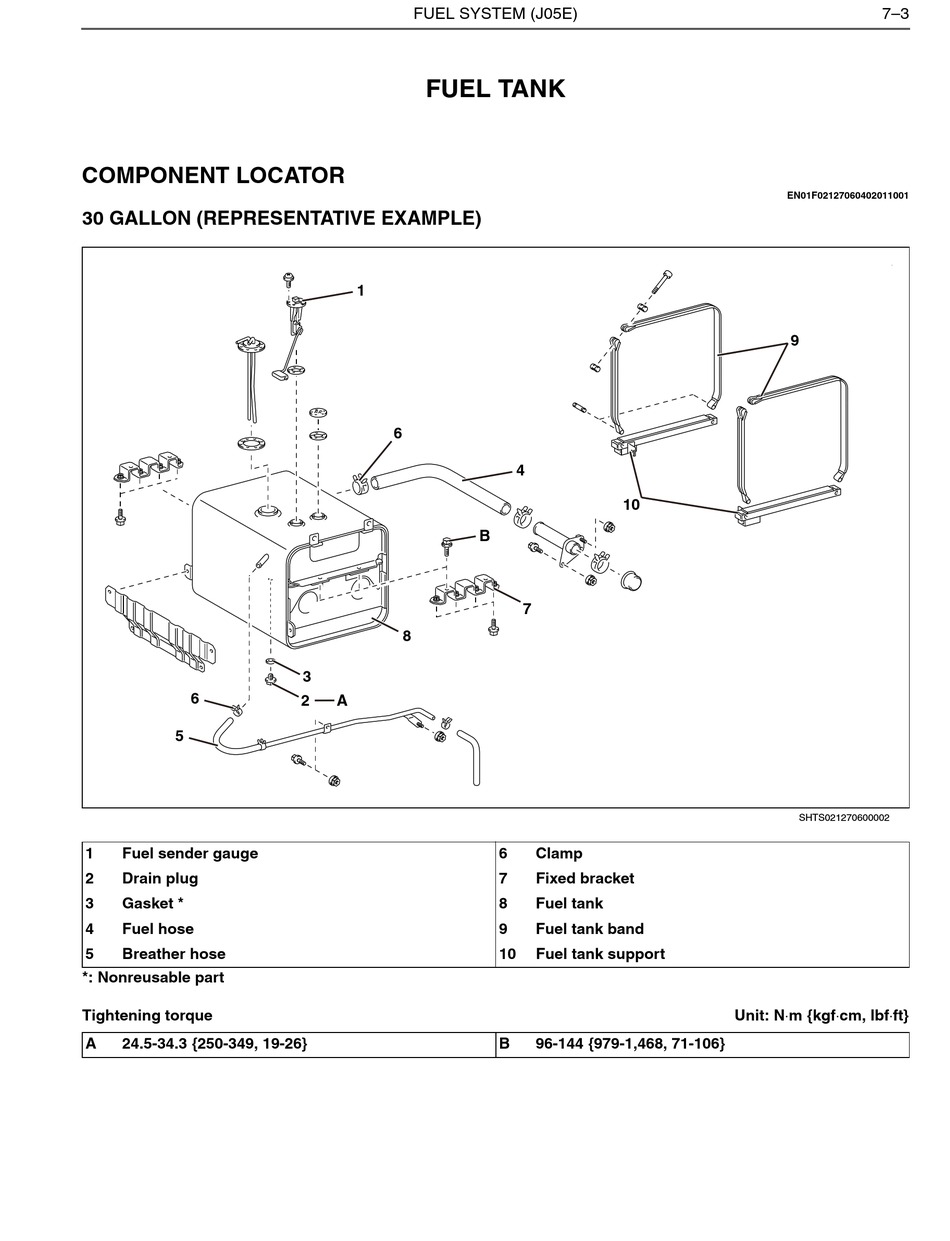

COMPONENT LOCATOR

30 GALLON (REPRESENTATIVE EXAMPLE)
6
5
1 Fuel sender gauge
2 Drain plug
3 Gasket *
4 Fuel hose
5 Breather hose
*: Nonreusable part
Tightening torque
A 24.5-34.3 {250-349, 19-26}
FUEL SYSTEM (J05E)
COMPOSITION DIAGRAM

FUEL TANK

1
6
B
8
3
2 A
4
10
7
6 Clamp
7 Fixed bracket
8 Fuel tank
9 Fuel tank band
10 Fuel tank support
B 96-144 {979-1,468, 71-106}
7–3
EN01F02127060402011001
9
SHTS021270600002
Unit: Nm {kgfcm, lbfft}
