Replacement - Hino S5-LJ05E04A Workshop Manual

11–90
DEF SENSOR
TANK
BRACKET
DCU BRACKET
DCU
DCU
BRACKET
HARNESS
EXHAUST (J05E)

REPLACEMENT

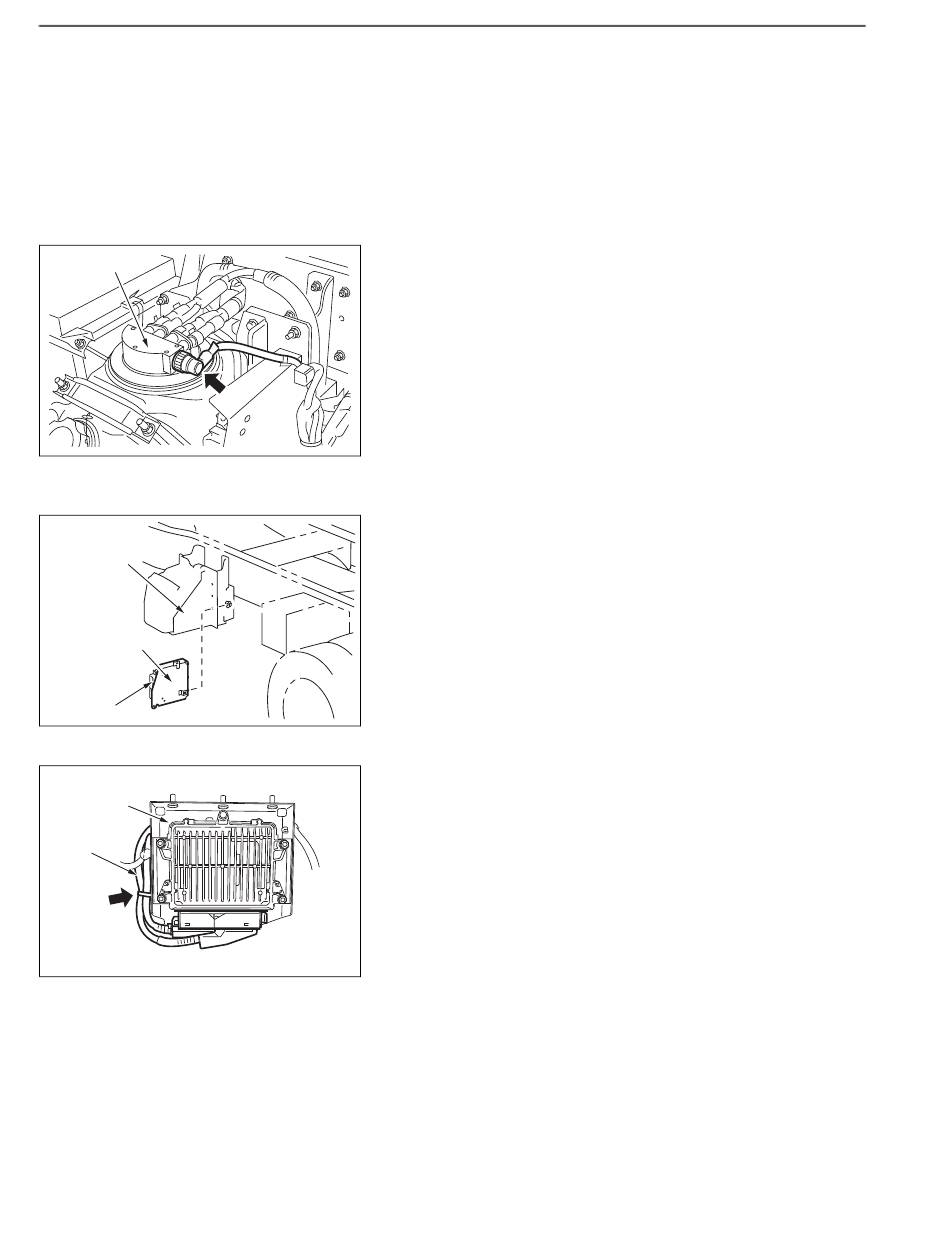

REMOVING THE DCU
1. REMOVING THE OUTSIDE TEMPERATURE SENSOR
Reference: EXHAUST (J05E), OUTSIDE TEMPERATURE SEN-
SOR, REPLACEMENT, REMOVING THE OUTSIDE TEMPERA-
TURE SENSOR (Page 11-120)
2. DISCONNECTING THE DEF SENSOR CONNECTOR
(1) Disconnect the connector from the DEF sensor.
SHTS021271000158
3. REMOVING THE DCU BRACKET
(1) Unfasten the nuts (3 pcs.) and remove the DCU with the DCU
bracket from the tank bracket.
SHTS021271000159
(2) Remove the harness clamp from the DCU bracket.
SHTS021271000160
