DPR
DIFFERENTIAL
PRESSURE
SENSOR
EXHAUST (J05E)
MOUNTING THE DPR DIFFERENTIAL PRESSURE
SENSOR

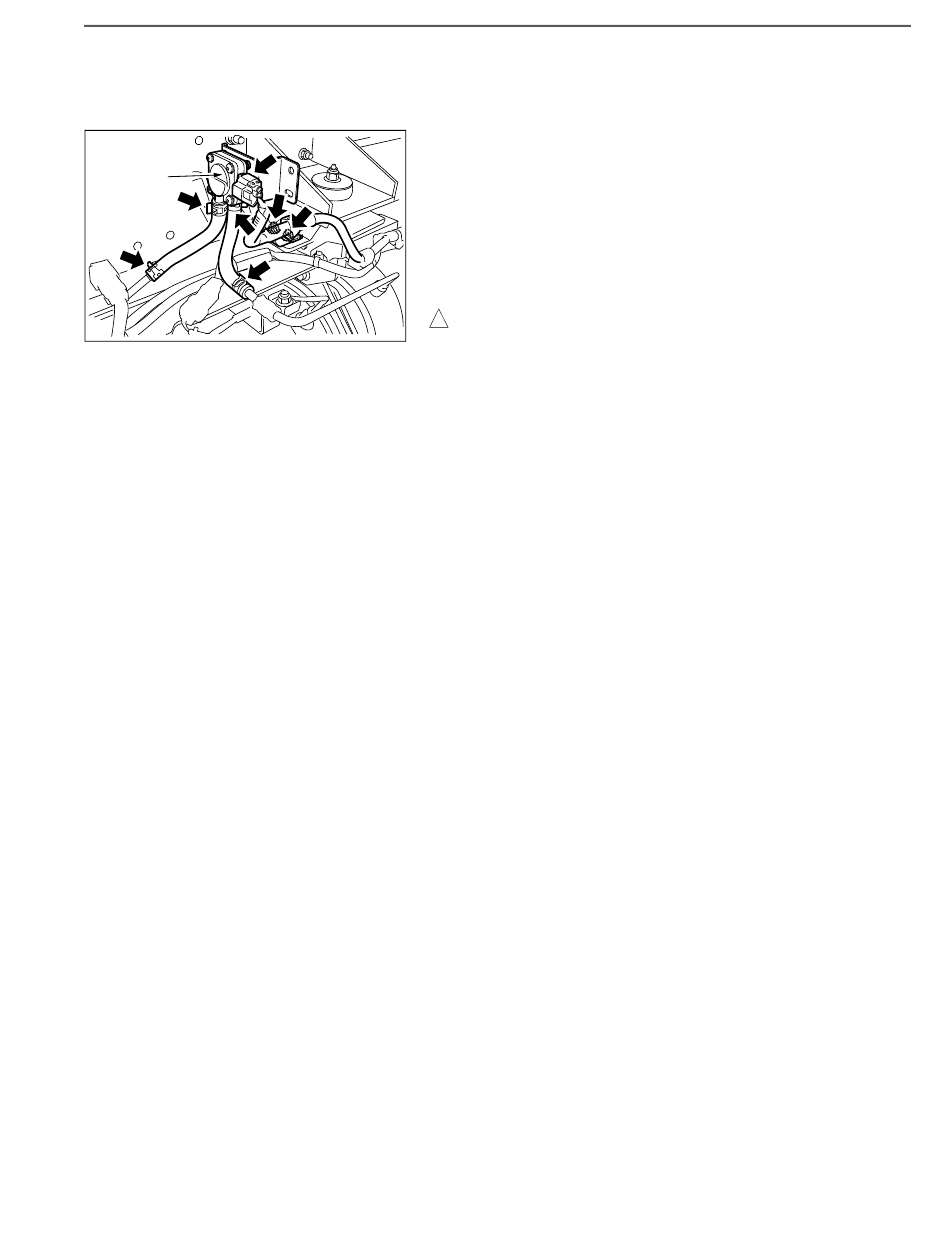

1. MOUNTING THE DPR DIFFERENTIAL PRESSURE SENSOR
(1) Mount the DPR differential pressure sensor to the bracket with 2
nuts.
Tightening Torque:
31 N·m {316 kgf·cm, 22.9 lbf·ft}
2. CONNECTING THE HOSE
(1) Align the markings on the hoses, differential pressure sensor, and
muffler. Mount 2 hoses to the DPR differential pressure sensor
and differential pressure pipe with 4 clamps.
! CAUTION
• If the DPR differential pressure sensor hose is inserted incor-
SHTS021271000174
rectly, the DPR will not operate properly.
• Use care to avoid twisting or kink of the hoses.
• Insert the hoses to the end at which they come in contact
with the DPR differential pressure sensor body.
• Insert the hoses to the end at which they come in contact
with the spools on the differential pressure pipes.
3. CONNECTING THE HARNESS
(1) Connect the connector to the DPR differential pressure sensor.
(2) Mount the harness clamp.
