FILTER
EQUALIZER
FILTER COVER
EXHAUST (J05E)

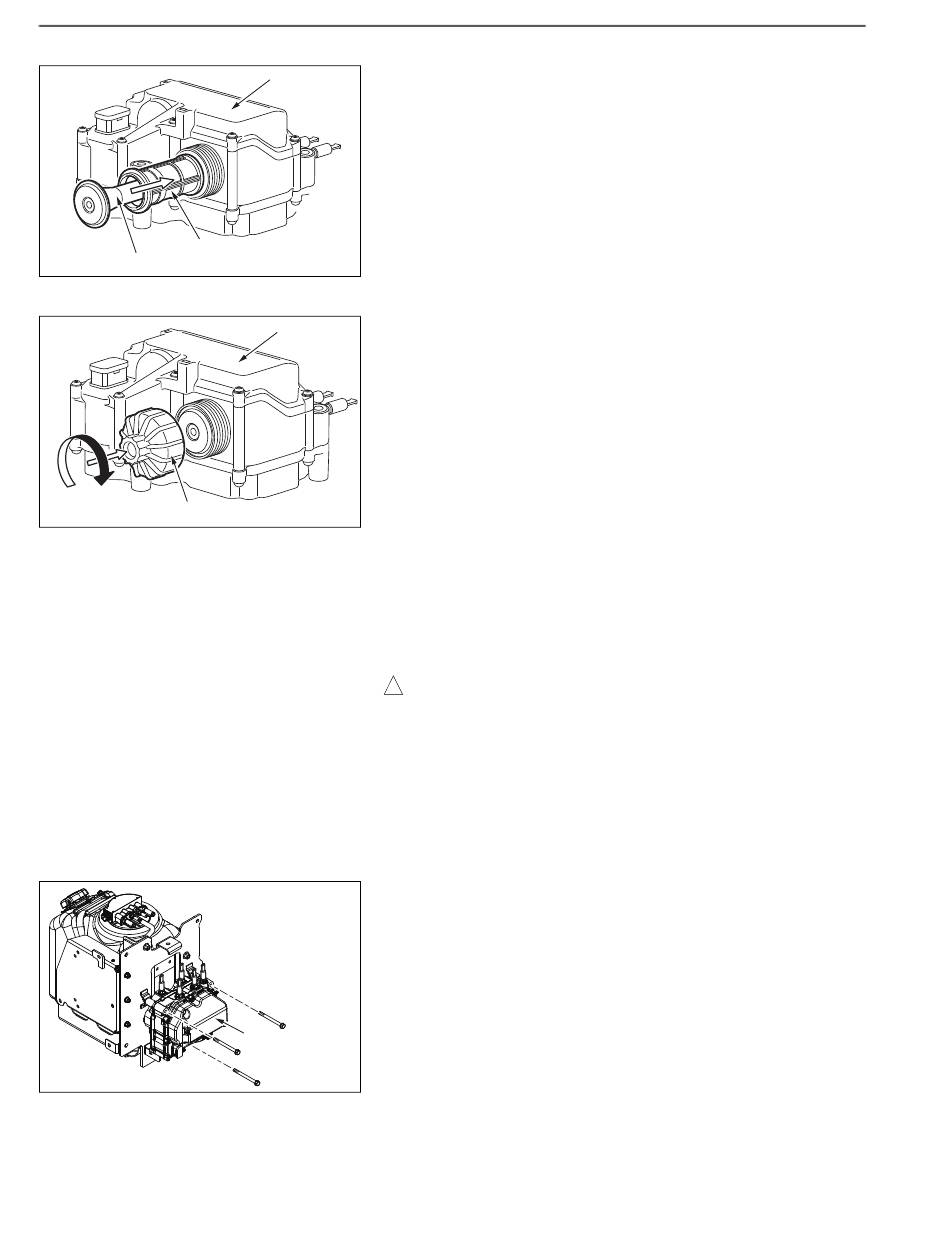

3. MOUNTING THE FILTER
(1) Replace with a new filter and equalizer and mount them to the
DEF PUMP
DEF pump.
SHTS021271000094
(2) Turn the filter cover clockwise using a 27 mm {1.06 in.} box
(dodecagon) to mount it to the DEF pump.
DEF PUMP
Tightening Torque:
15-25 N·m {153-255 kgf·cm, 11.1-18.4 lbf·ft}
SHTS021271000095
REMOVING THE DEF PUMP
1. CAUTIONS
! CAUTION
After-run (DEF drawn back to the DEF tank) is performed after the
starter key is turned to "LOCK" and the muffler temperature
drops. Before starting work, wait for at least 10 minutes after turn-
ing the starter key to "LOCK."
2. REMOVING THE DEF TANK ASSEMBLY
Reference: EXHAUST (J05E), DEF TANK, REPLACEMENT,
REMOVING THE DEF TANK ASSEMBLY (Page 11-79)
3. REMOVING THE DEF PUMP
(1) Unfasten the bolts (3 pcs.) to remove the DEF pump from the tank
bracket.
DEF PUMP
SHTS021271000096
