Hino S5-LJ05E04A Workshop Manual page 364

10–88
CONNECTING
ROD CAP
CONNECTING ROD
BEARING
CONCAVE PORTION
OIL HOLE
WING NUT
GUIDE
CONNECTING ROD
ENGINE MECHANICAL (J05E)
3.
(1)
NOTICE
Press the one end of the connecting rod bearing at the opposite
side of the concave to facilitate removal.
SHTS021270900199
(2)
CONCAVE PORTION
NOTICE
Press the one end of the connecting rod bearing at the opposite
side of the concave to facilitate removal.
CONNECTING ROD
BEARING
SHTS021270900200
4.
(1)
PRESS
SUB ASSY
! CAUTION
•
SHTS021270900201
•
(2)
SHTS021270900202

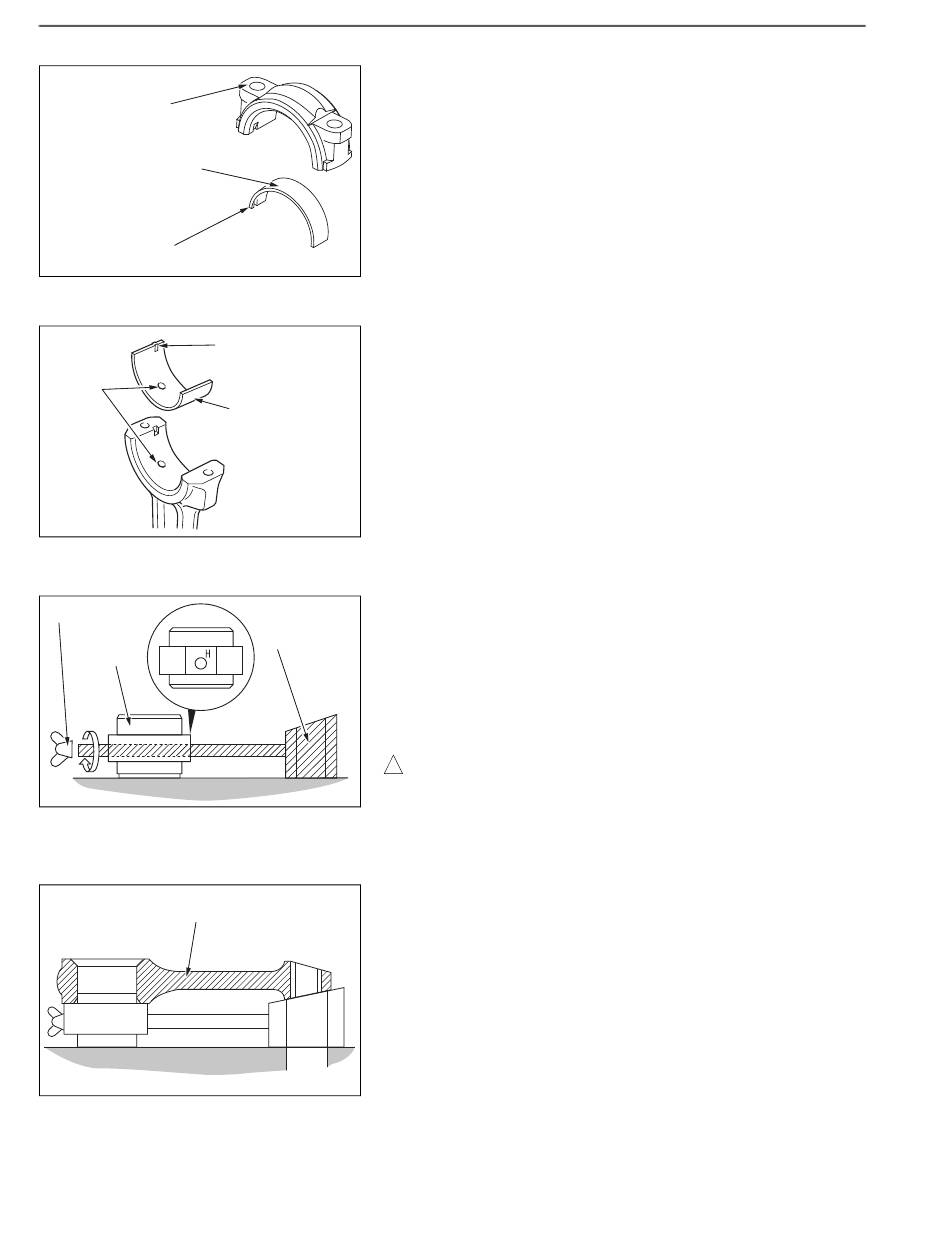

REMOVING THE CONNECTING ROD BEARING
Remove the connecting rod bearing connected to the connecting
rod cap.
Remove the connecting rod bearing connected to the connecting
rod.
REMOVING THE CONNECTING ROD BUSH
Assemble the SST (press subassembly and guide) on the level
bench and use the other SST (wing nut) to secure the assembly.
SST: S0948-11130
Guide
S0940-21530
Press subassembly
SL271-01036
Wing nut
Orient the "H" mark engraved on the guide to the top before
assembly.
Make sure that the lower ends of the guide and the press
subassembly are level.
With a bearing removed from a large end of a connecting rod,
assemble the connecting rod and set it on the SST assembly.
