Hino S5-LJ05E04A Workshop Manual page 642

17–8
TURBOCHARGER
ASSEMBLY
TURBOCHARGER
ASSEMBLY
TURBOCHARGER
ASSEMBLY
ELECTRIC ACTUATOR
TURBOCHARGER (J05E)
9. REMOVING THE FLEXIBLE
Reference: EXHAUST (J05E), EXHAUST PIPE, REPLACE-
MENT, REMOVING THE EXHAUST SYSTEM COMPONENT
PARTS (Page 11-9)
10. REMOVING THE EXHAUST PIPE (ATC)
Reference:
REPLACEMENT, REMOVING THE EXHAUST PIPE (ATC)
(Page 11-17)
11. REMOVING EXHAUST BRAKE
Reference: EXHAUST (J05E), EXHAUST BRAKE, REPLACE-
MENT, REMOVING THE EXHAUST BRAKE (Page 11-122)

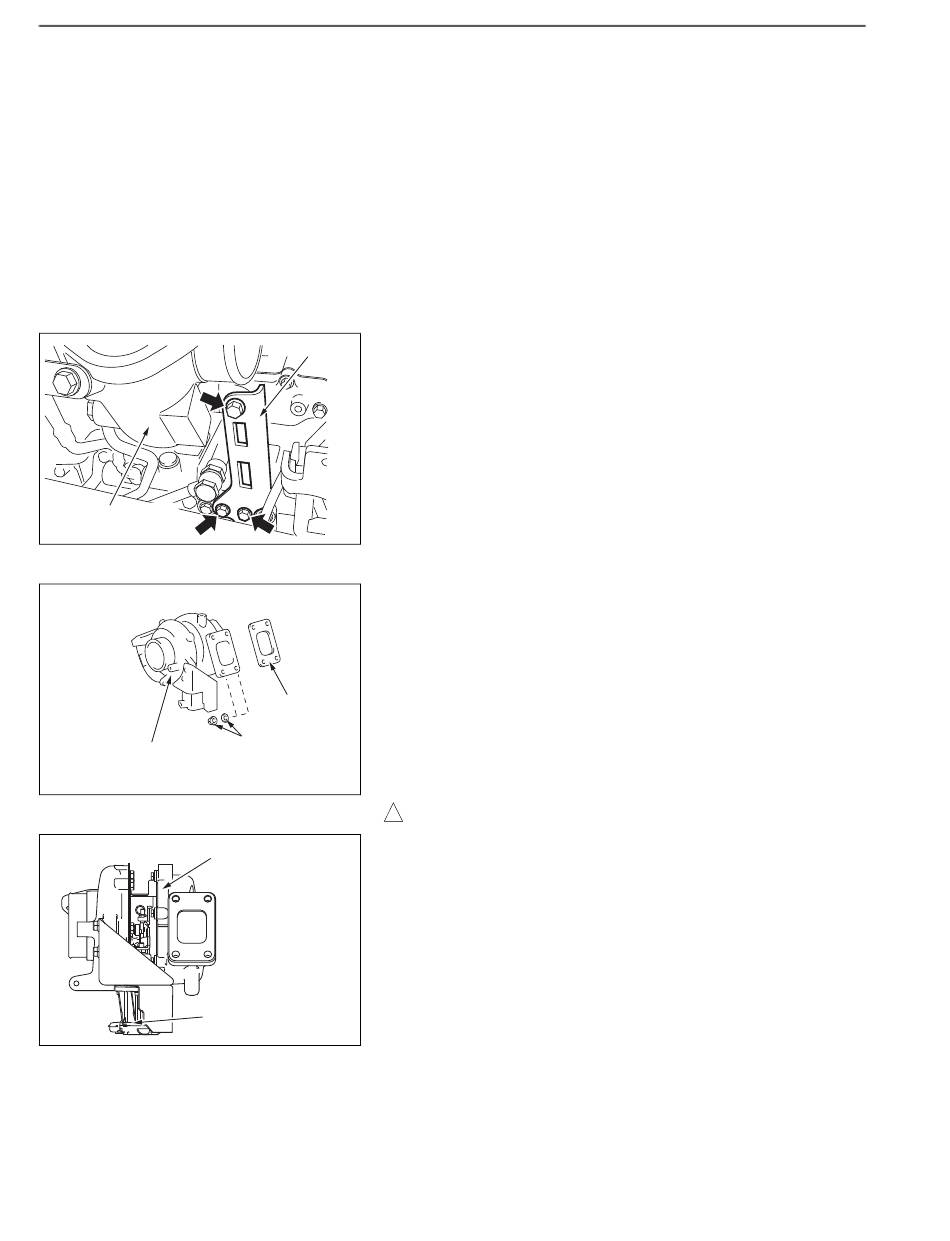

12. REMOVING THE TURBOCHARGER ASSEMBLY
(1) Unfasten the 3 bolts to remove the bracket from the turbocharger
BRACKET
assembly and oil cooler assembly.
SHTS021271600011
(2) Unfasten the nuts (4 pcs.) to remove the turbocharger assembly
and gasket from the exhaust manifold.
GASKET
NUT
SHTS021271600012
! CAUTION
• The electric actuator is plastic and easily damaged. Use care
to place it in an appropriate direction for storage after
removal.
•
Heat-resisting steel is used for bolts and nuts. Do not mix
them with ordinary bolts and nuts when mounting.
SHTS021271600013
(3) After removing the turbocharger assembly, block the exhaust
manifold port to prevent entry of foreign matters.
EXHAUST (J05E), EXHAUST PIPE (ATC),
