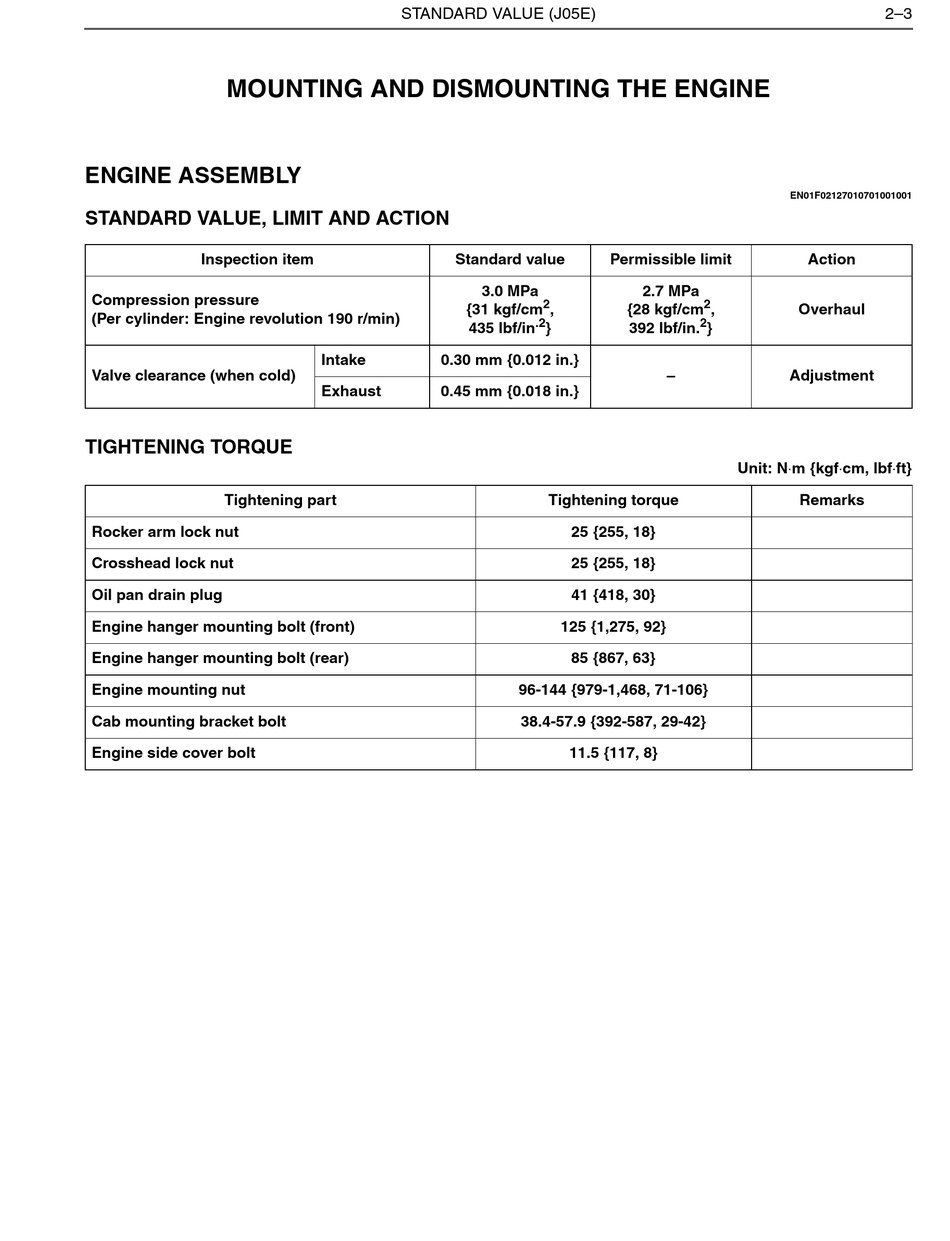

MOUNTING AND DISMOUNTING THE ENGINE

ENGINE ASSEMBLY

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Compression pressure
(Per cylinder: Engine revolution 190 r/min)
Valve clearance (when cold)
TIGHTENING TORQUE
Tightening part
Rocker arm lock nut
Crosshead lock nut
Oil pan drain plug
Engine hanger mounting bolt (front)
Engine hanger mounting bolt (rear)
Engine mounting nut
Cab mounting bracket bolt
Engine side cover bolt
STANDARD VALUE (J05E)
BASIC VALUE
Standard value
3.0 MPa
{31 kgf/cm
435 lbf/in
Intake 0.30 mm {0.012 in.}
Exhaust 0.45 mm {0.018 in.}
Permissible limit
2.7 MPa
2
, {28 kgf/cm
.2
} 392 lbf/in.
–
Tightening torque
25 {255, 18}
25 {255, 18}
41 {418, 30}
125 {1,275, 92}
85 {867, 63}
96-144 {979-1,468, 71-106}
38.4-57.9 {392-587, 29-42}
11.5 {117, 8}
EN01F02127010701001001
Action
2
, Overhaul
2
}
Adjustment
Unit: Nm {kgfcm, lbfft}
Remarks
2–3
