GASKET
PRESSURE
FEED PIPE
EGR VALVE
LINK
GASKET
INTAKE (J05E)

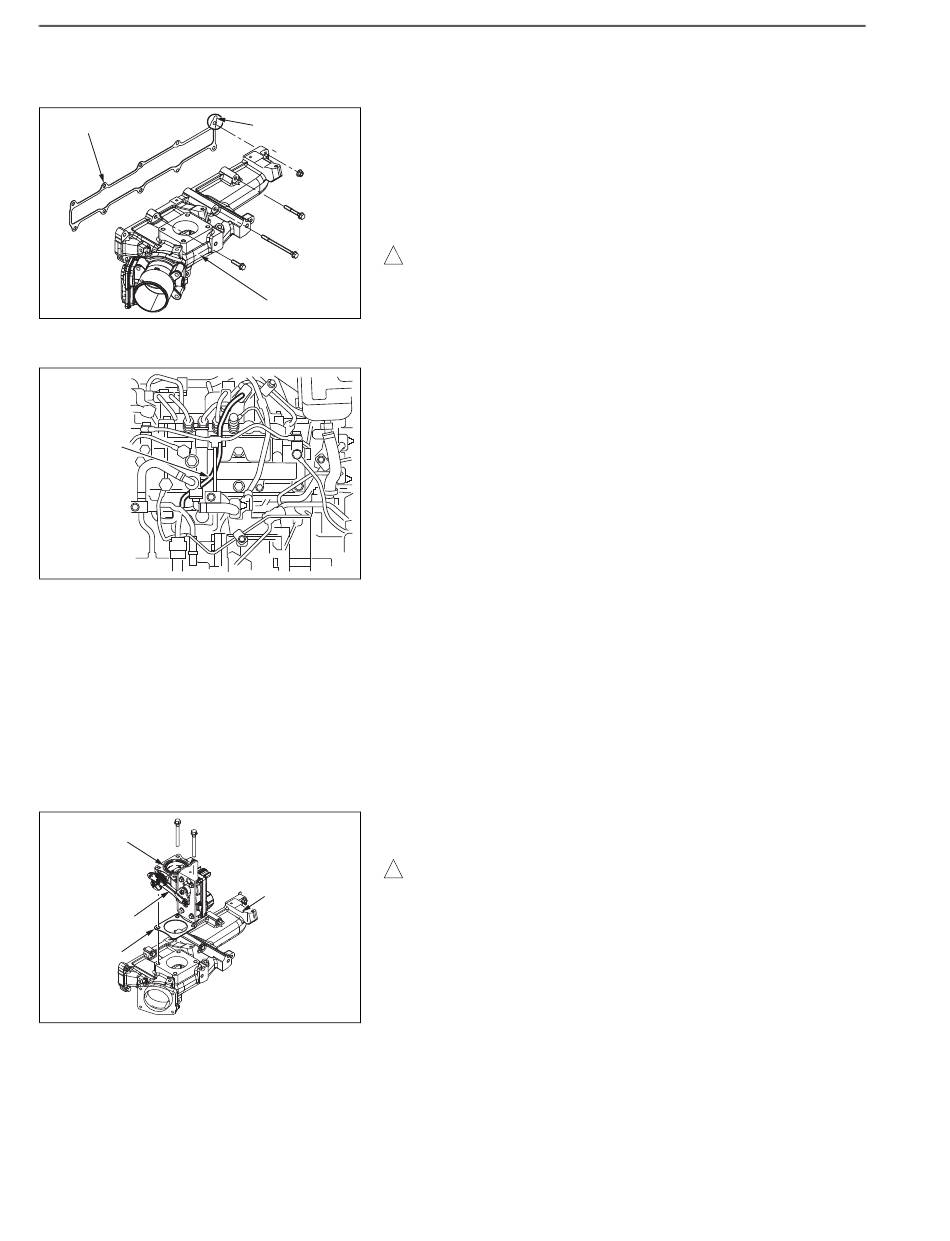

MOUNTING THE INTAKE MANIFOLD
1. MOUNTING THE INTAKE MANIFOLD
(1) Clean the inside of the intake manifold and cylinder head.
PROJECTION
(2) Replace the gasket with a new one, and mount the intake mani-
fold on the cylinder head with 8 bolts and 2 nuts that secured the
intake manifold.
Tightening Torque:
28.5 N·m {291 kgf·cm, 21 lbf·ft}
! CAUTION
Mount the gasket so that the lug of the gasket is positioned on the
INTAKE
rearmost stud bolt side of the cylinder head.
MANIFOLD
SHTS021270800007
(3) Mount the new pressure feed pipe to the supply pump and com-
mon rail.
(4) Mount the 2 clips with 2 nuts and fix the pressure feed pipe.
SHTS021270800008
2. MOUNTING THE GLOW PLUG
Reference: ENGINE MECHANICAL (J05E), GLOW PLUG,
REPLACEMENT, MOUNTING THE GLOW PLUGS (Page 10-
130)
3. MOUNTING THE COMMON RAIL
Reference:
REPLACEMENT, MOUNTING THE COMMON RAIL (Page 7-50)
4. MOUNTING THE EGR VALVE
(1) Replace the gasket with a new one, and temporarily attach the
EGR valve to the intake manifold.
! CAUTION
Do not hold the link when replacing the EGR valve assembly. If the
INTAKE
MANIFOLD
link is held, it may bend and cause a malfunction.
SHTS021270800009
FUEL SYSTEM (J05E), COMMON RAIL,
