Hino S5-LJ05E04A Workshop Manual page 344

10–68
VIBRATION CONTROL
STUD
LIQUID
GASKET
B
A
B
C
A
A
A
HV ONLY
B
A
A
ENGINE MECHANICAL (J05E)

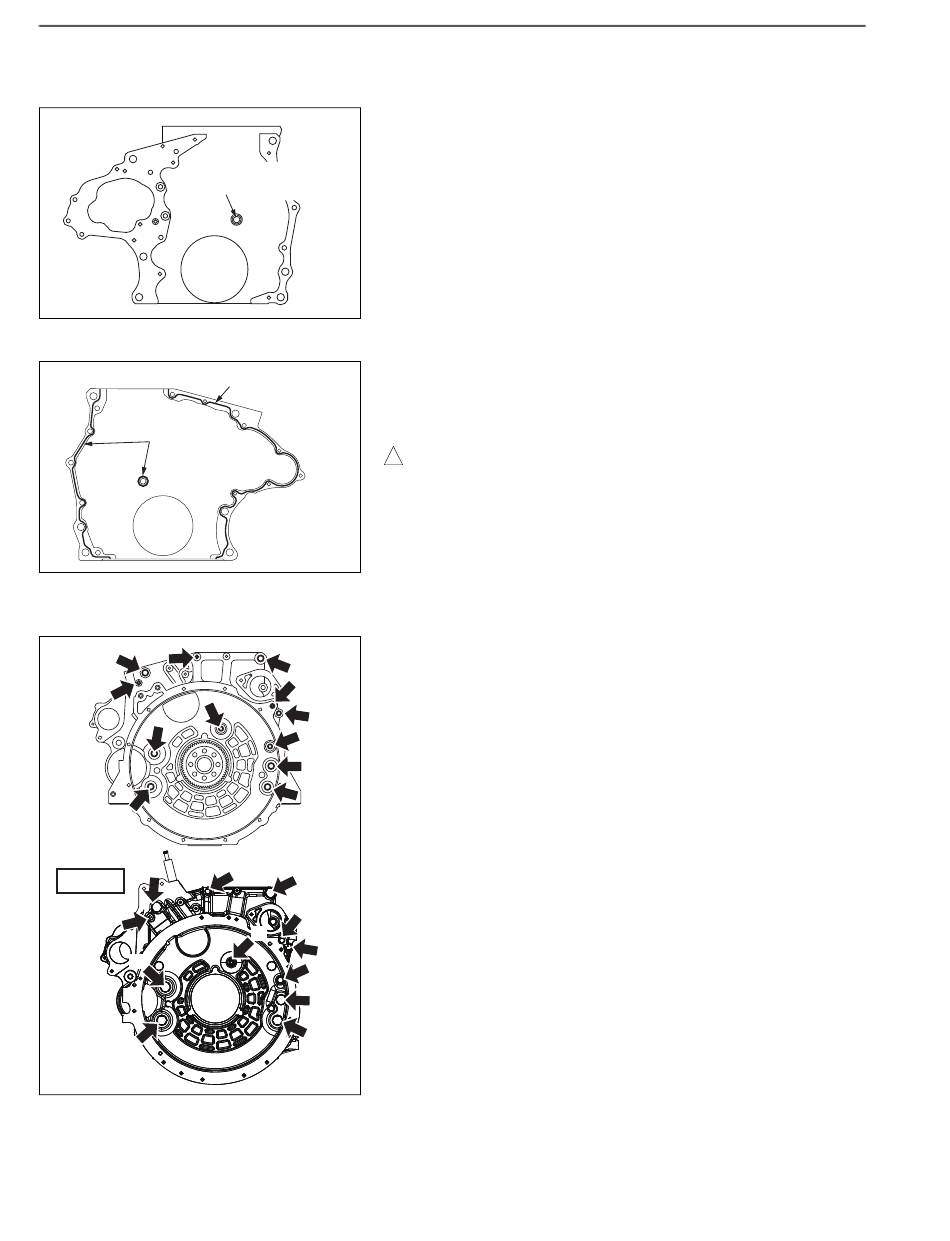

MOUNTING THE FLYWHEEL HOUSING
1.
(1)
SHTS021270900144
(2)
LIQUID GASKET
(3)
! CAUTION
•
•
•
SHTS021270900145
(4)
(5)
A
C
C
D
A
A
B
A
C
C
C
D
A
A
SHTS021270900146
MOUNTING THE FLYWHEEL HOUSING
Fasten the damping stud onto the flywheel housing.
Tightening Torque:
55 N·m {561 kgf·cm, 41 lbf·ft}
Use the scraper to remove dirt and fouling from the joint surfaces
of the flywheel housing and rear end plate.
Apply liquid gasket (ThreeBond TB1207D: Silver or equivalent or
ThreeBond TB1217G: Gray or equivalent) to the flywheel housing
as shown in the figure.
Apply the liquid gasket seamlessly.
Apply the liquid gasket with 1.5-2.5 mm {0.0590-0.0984 in.}
width.
Mount the case within 20 minutes after applying the liquid
gasket.
Fasten 2-4 guide bolts and align the flywheel housing with the cyl-
inder block mounting position along the guide bolts.
Tighten the bolts and nuts with the specified tightening torques to
secure the flywheel housing.
Tightening Torque:
196 N·m {1,999 kgf·cm, 145 lbf·ft}
Part A: M16
28.5 N·m {291 kgf·cm, 21 lbf·ft}
Part B: M8
55 N·m {561 kgf·cm, 41 lbf·ft}
Part C: M10
55 N·m {561 kgf·cm, 41 lbf·ft}
Part D: M10
