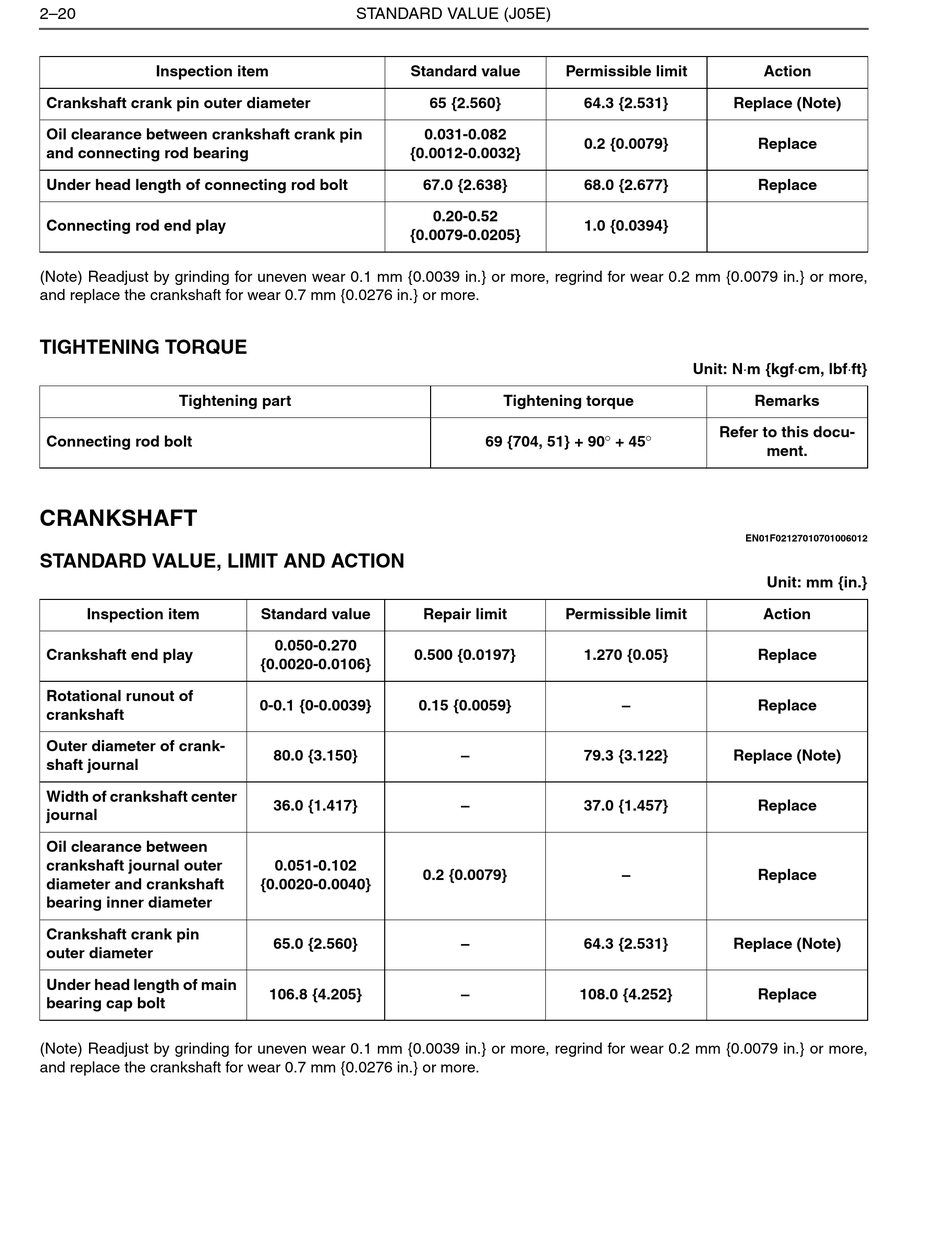

2–20
Inspection item
Crankshaft crank pin outer diameter
Oil clearance between crankshaft crank pin
and connecting rod bearing
Under head length of connecting rod bolt
Connecting rod end play
(Note) Readjust by grinding for uneven wear 0.1 mm {0.0039 in.} or more, regrind for wear 0.2 mm {0.0079 in.} or more,
and replace the crankshaft for wear 0.7 mm {0.0276 in.} or more.
TIGHTENING TORQUE
Tightening part
Connecting rod bolt

CRANKSHAFT

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Crankshaft end play
Rotational runout of
crankshaft
Outer diameter of crank-
shaft journal
Width of crankshaft center
journal
Oil clearance between
crankshaft journal outer
diameter and crankshaft
bearing inner diameter
Crankshaft crank pin
outer diameter
Under head length of main
bearing cap bolt
(Note) Readjust by grinding for uneven wear 0.1 mm {0.0039 in.} or more, regrind for wear 0.2 mm {0.0079 in.} or more,
and replace the crankshaft for wear 0.7 mm {0.0276 in.} or more.
STANDARD VALUE (J05E)
Standard value
65 {2.560}
0.031-0.082
{0.0012-0.0032}
67.0 {2.638}
0.20-0.52
{0.0079-0.0205}
Standard value Repair limit
0.050-0.270
0.500 {0.0197}
{0.0020-0.0106}
0-0.1 {0-0.0039} 0.15 {0.0059}
80.0 {3.150}
36.0 {1.417}
0.051-0.102
0.2 {0.0079}
{0.0020-0.0040}
65.0 {2.560}
106.8 {4.205}
Permissible limit
64.3 {2.531}
0.2 {0.0079}
68.0 {2.677}
1.0 {0.0394}
Tightening torque
69 {704, 51} + 90 + 45
Permissible limit
1.270 {0.05}
–
–
79.3 {3.122}
–
37.0 {1.457}
–
–
64.3 {2.531}
–
108.0 {4.252}
Action
Replace (Note)
Replace
Replace
Unit: Nm {kgfcm, lbfft}
Remarks
Refer to this docu-
ment.
EN01F02127010701006012
Unit: mm {in.}
Action
Replace
Replace
Replace (Note)
Replace
Replace
Replace (Note)
Replace
