Hino S5-LJ05E04A Workshop Manual page 17

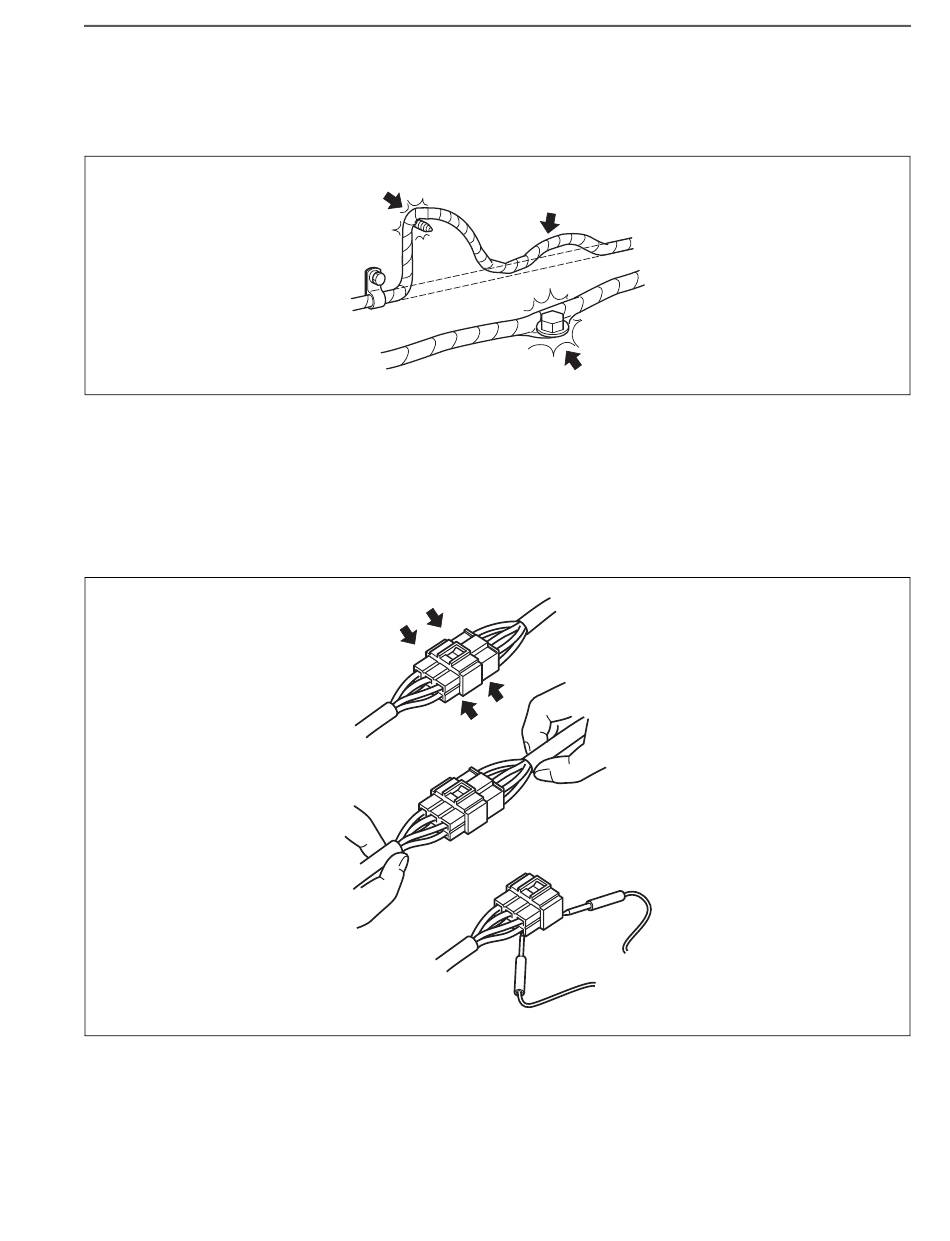

(3) Handling of wire harness
a. Perform marking on a clamp and a clip and secure then in original position so that the wire harness will not inter-
fere with the end and acute angle section of the body and a bolt.
b. To attach a part, take care not to bite the wire harness.
(4) Handling of connectors
a. When removing a connector, hold a connector (area shown in an arrow in the figure) and then pull it off. Do not
pull wire harnesses.
b. Pull off a lockable connector after unlocking.
c. When connecting a lockable connector, make sure to insert a lockable connector until it makes a click sound.
d. When inserting a test lead, insert it from the back of a connector.
e. If it is difficult to insert a test lead from the back of a connector, make and use an inspection harness.
GENERAL INTRODUCTION
INCORRECT
INCORRECT
CORRECT
INCORRECT
INCORRECT
INCORRECT
1–13
SHTS01ZZZ0000018
SHTS01ZZZ0000019
