STACK DUCT
INTAKE
HOSE
CLAMP
SHTS021270800023
CAB
BRACKET
DUCT
MOUNT
SHTS021270800024
INTAKE (J05E)

REPLACEMENT

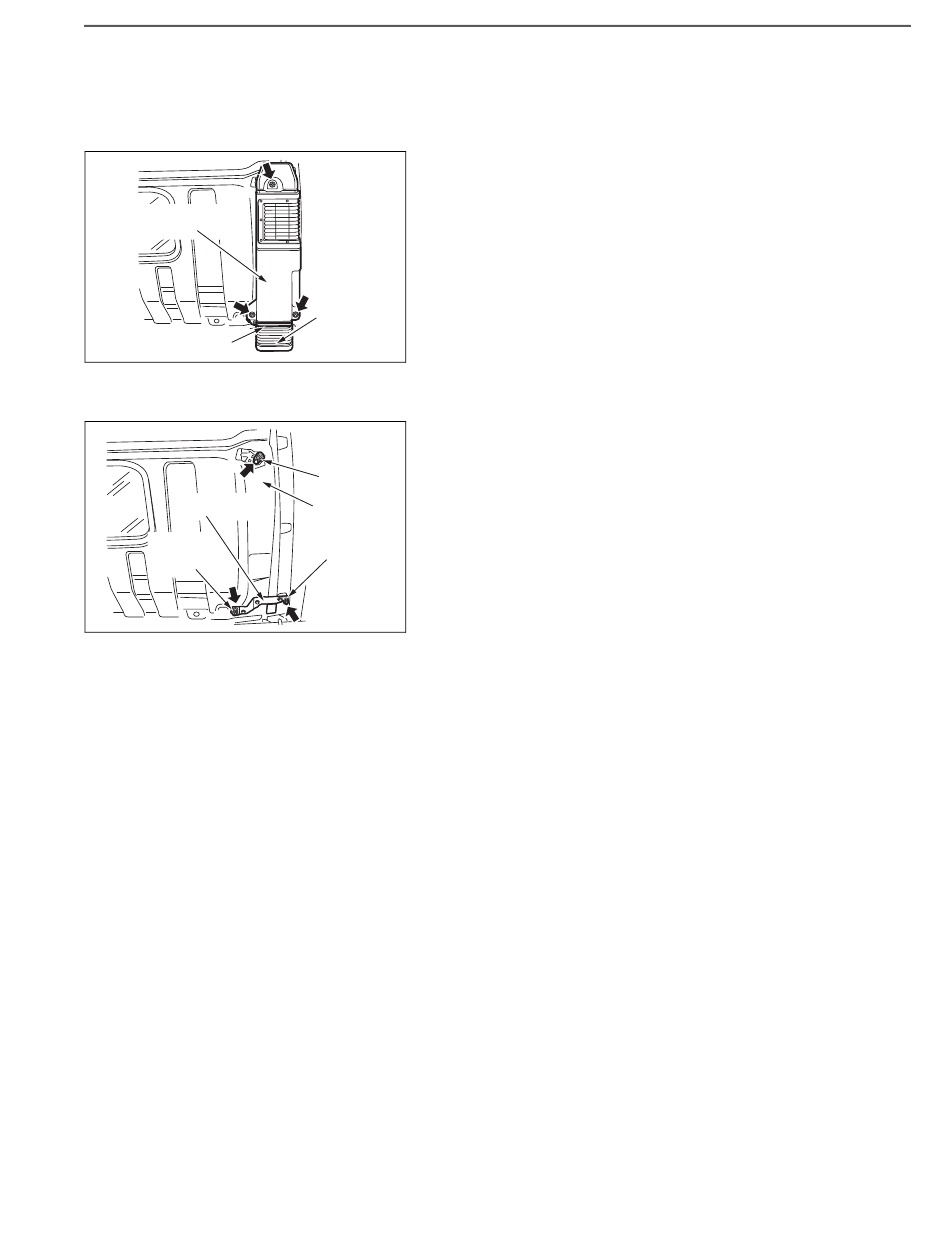

REMOVING THE STACK DUCT
1. REMOVING THE STACK DUCT
(1) Unfasten the 3 nuts to remove the stack duct from the duct mount.
(2) Loosen the clamp, and disconnect the intake hose from the bot-
tom of the stack duct.
2. REMOVING THE DUCT MOUNT
(1) Unfasten the bolt to remove the duct mount from the cab.
(2) Unfasten the 2 bolts to remove 2 duct mounts from the bracket.
DUCT
MOUNT
DUCT
MOUNT
