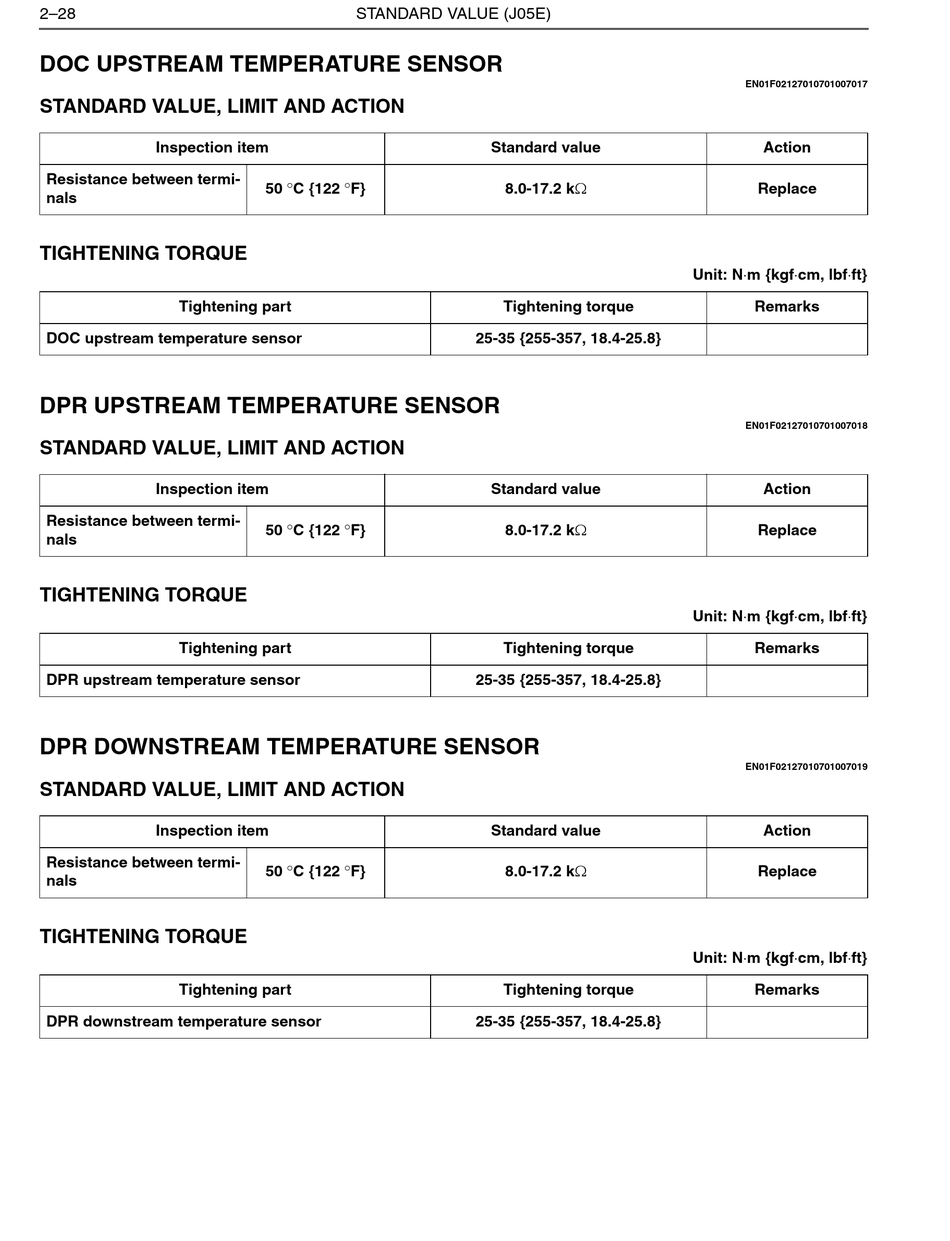

DOC UPSTREAM TEMPERATURE SENSOR

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Resistance between termi-
nals
TIGHTENING TORQUE
Tightening part
DOC upstream temperature sensor

DPR UPSTREAM TEMPERATURE SENSOR

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Resistance between termi-
nals
TIGHTENING TORQUE
Tightening part
DPR upstream temperature sensor

DPR DOWNSTREAM TEMPERATURE SENSOR

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Resistance between termi-
nals
TIGHTENING TORQUE
Tightening part
DPR downstream temperature sensor
STANDARD VALUE (J05E)
50 C {122 F}
50 C {122 F}
50 C {122 F}
Standard value
8.0-17.2 k
Tightening torque
25-35 {255-357, 18.4-25.8}
Standard value
8.0-17.2 k
Tightening torque
25-35 {255-357, 18.4-25.8}
Standard value
8.0-17.2 k
Tightening torque
25-35 {255-357, 18.4-25.8}
EN01F02127010701007017
Action
Replace
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701007018
Action
Replace
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701007019
Action
Replace
Unit: Nm {kgfcm, lbfft}
Remarks
