CENTER PIPE No.1
SUPPORT BRACKET
DPR CLEANER
CENTER PIPE No.1
CENTER PIPE No.1
SUPPORT BRACKET
DPR CLEANER
CENTER PIPE No.1
EXHAUST (J05E)
5.
(1)
(2)
! CAUTION
To hold and stabilize the DPR cleaner, make sure to lash it with a
lashing device before installation or removal.
DPR CLEANER
SHTS021271000049
(3)
(4)
! CAUTION
Pay attention to weight balance.
SHTS021271000050
MOUNTING DPR CLEANER
1.
(1)
! CAUTION
To hold and stabilize the DPR cleaner, make sure to lash it with a
lashing device before installation or removal.
(2)
(3)
DPR CLEANER
! CAUTION
SHTS021271000051
To prevent exhaust gas leakage, make sure to replace with a new
gasket, bolts, and nuts.
(4)
SHTS021271000052

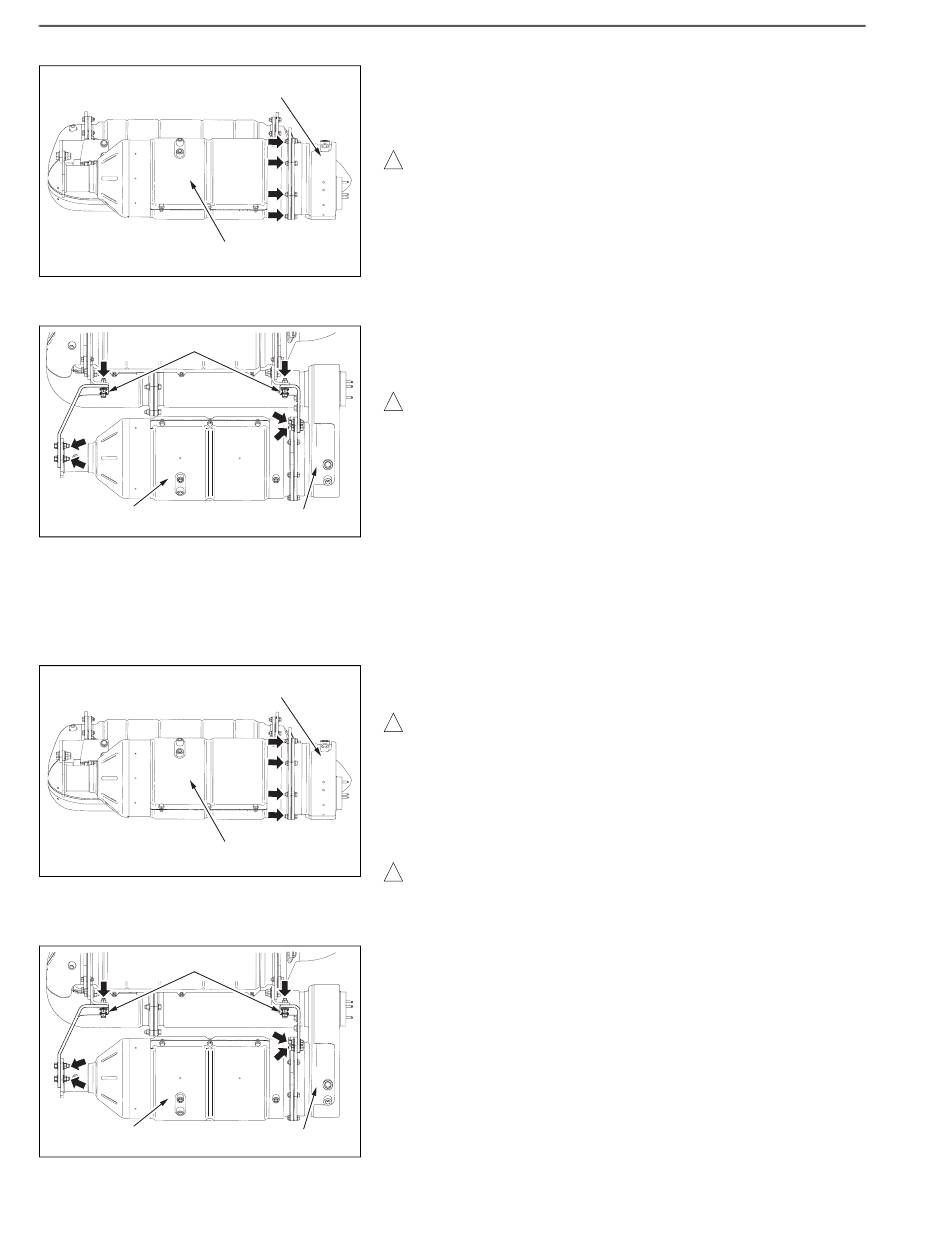

REMOVING THE DPR
Unfasten the 8 bolts and 8 nuts to remove the DPR cleaner and
gasket from the center pipe No.1.
Set the transmission jack under the DPR cleaner and lash with a
lashing device.
Unfasten the 8 bolts and 8 nuts to remove 2 support brackets and
8 washers from the DPR cleaner.
Pull off the DPR cleaner from the vehicle while supporting it to
prevent falling.
TEMPORARY MOUNTING OF THE DPR CLEANER
Set a transmission jack under the DPR cleaner and lash with a
lashing device.
Set the DPR cleaner to the mounting position while supporting it
to prevent falling.
Replace with a new gasket, 8 bolts, and 8 nuts and temporarily
tighten the DPR cleaner to the center pipe No.1.
Temporarily tighten 2 support brackets and 8 washers to the DPR
cleaner with 8 bolts and 8 nuts.
