OIL PIPE A
OIL PIPE B
GASKET
TURBOCHARGER (J05E)
2.
3.
4.
5.
(1)
6.
(1)
TURBO-
CHARGER
ASSEMBLY
TURBOCHARGER
INSULATOR
SHTS021271600006
7.
(1)
TURBOCHARGER
ASSEMBLY
! CAUTION
Use care not to splash the oil in the pipes and turbocharger
assembly.
NOTICE
When disconnecting the oil pipe, engine oil will spill. Prepare a
reservoir and clean clothes.
SHTS021271600007
(2)
GASKET
! CAUTION
Use care not to splash the oil in the pipes and turbocharger
assembly.
NOTICE
When disconnecting the oil pipe, engine oil will spill. Prepare a
reservoir and clean clothes.
(3)
! CAUTION
SHTS021271600008
Use special care to prevent the entry of foreign matter into the tur-
bocharger assembly.
DRAINING THE COOLANT
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
REMOVING THE RADIATOR (Page 12-5)
REMOVING THE INTAKE HOSE
Reference: INTAKE (J05E), INTAKE PIPE (EXHAUST SIDE),
REPLACEMENT, REMOVING THE INTAKE PIPE (EXHAUST
SIDE) (Page 9-12)
REMOVING THE INTAKE PIPE
Reference: INTAKE (J05E), INTAKE PIPE (EXHAUST SIDE),
REPLACEMENT, REMOVING THE INTAKE PIPE (EXHAUST
SIDE) (Page 9-12)
DISCONNECTING THE HARNESS
Disconnect the electric actuator connector.

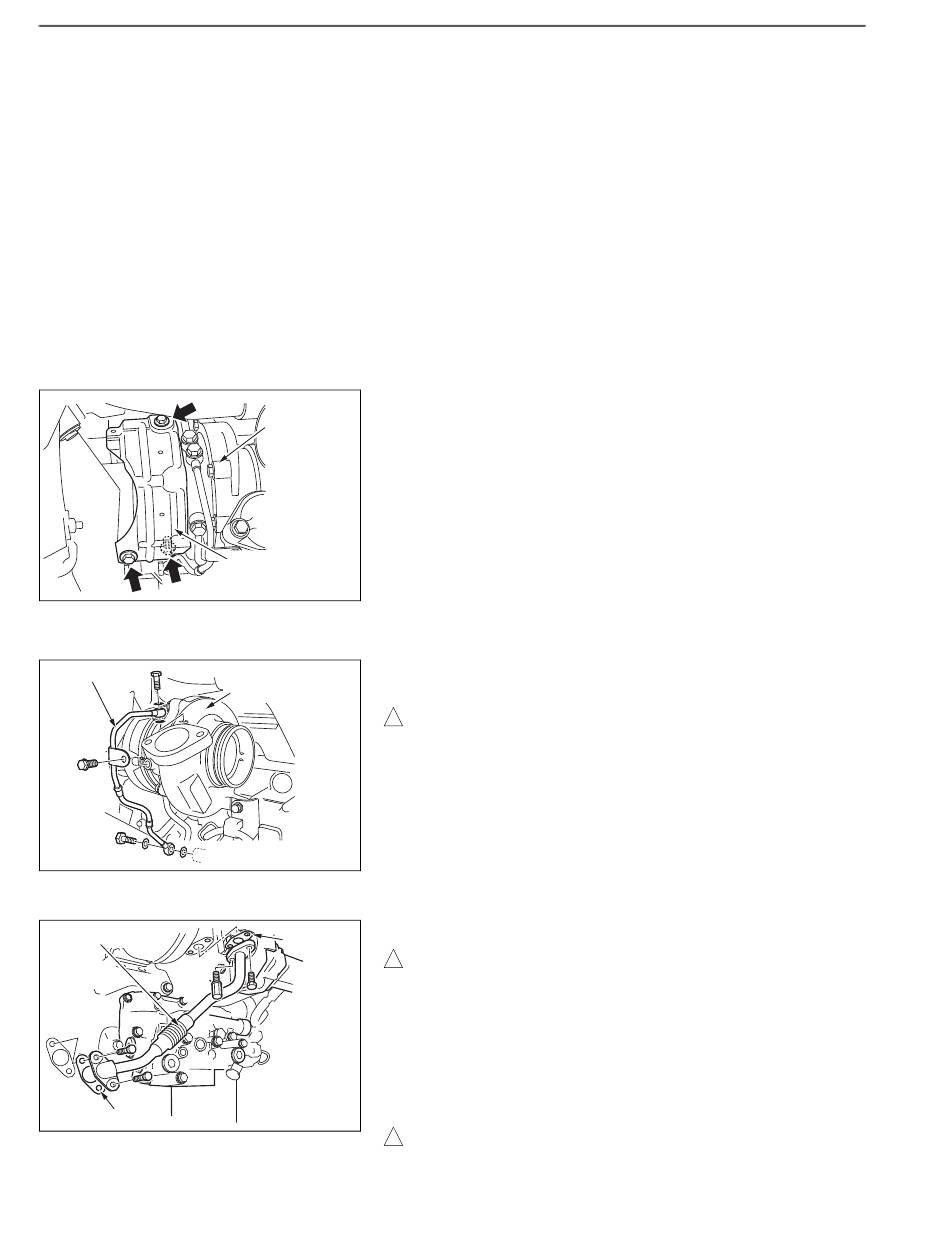

REMOVING THE TURBOCHARGER INSULATOR
Unfasten the 3 bolts to remove the turbocharger insulator from the
turbocharger assembly.
DISCONNECTING THE OIL PIPE
Unfasten the bolt and 2 union bolts to remove the oil pipe A and
gaskets from the turbocharger assembly and oil cooler assembly.
Unfasten the 4 bolts to remove the oil pipe B and gaskets from the
turbocharger assembly and cylinder block.
Block oil holes of the turbocharger assembly to prevent entry of
foreign matters.
