FUEL FEED
PIPE No.1
CLIP
RETURN PIPE No.2
FUEL FILTER CASE
ENGINE HARNESS
FUEL SYSTEM (J05E)
(4)
HOSE
CLAMP
(5)
FUEL FEED
(6)
PIPE No.2
SHTS021270600046
(7)
CLIP
SHTS021270600047
(8)
RETURN PIPE
No.2
SHTS021270600048
4.
(1)
! CAUTION
Before connecting the connectors, make sure that the terminals
are free of a spark mark.
5.
WATER LEVEL
WARNING SWITCH
SHTS021270600049

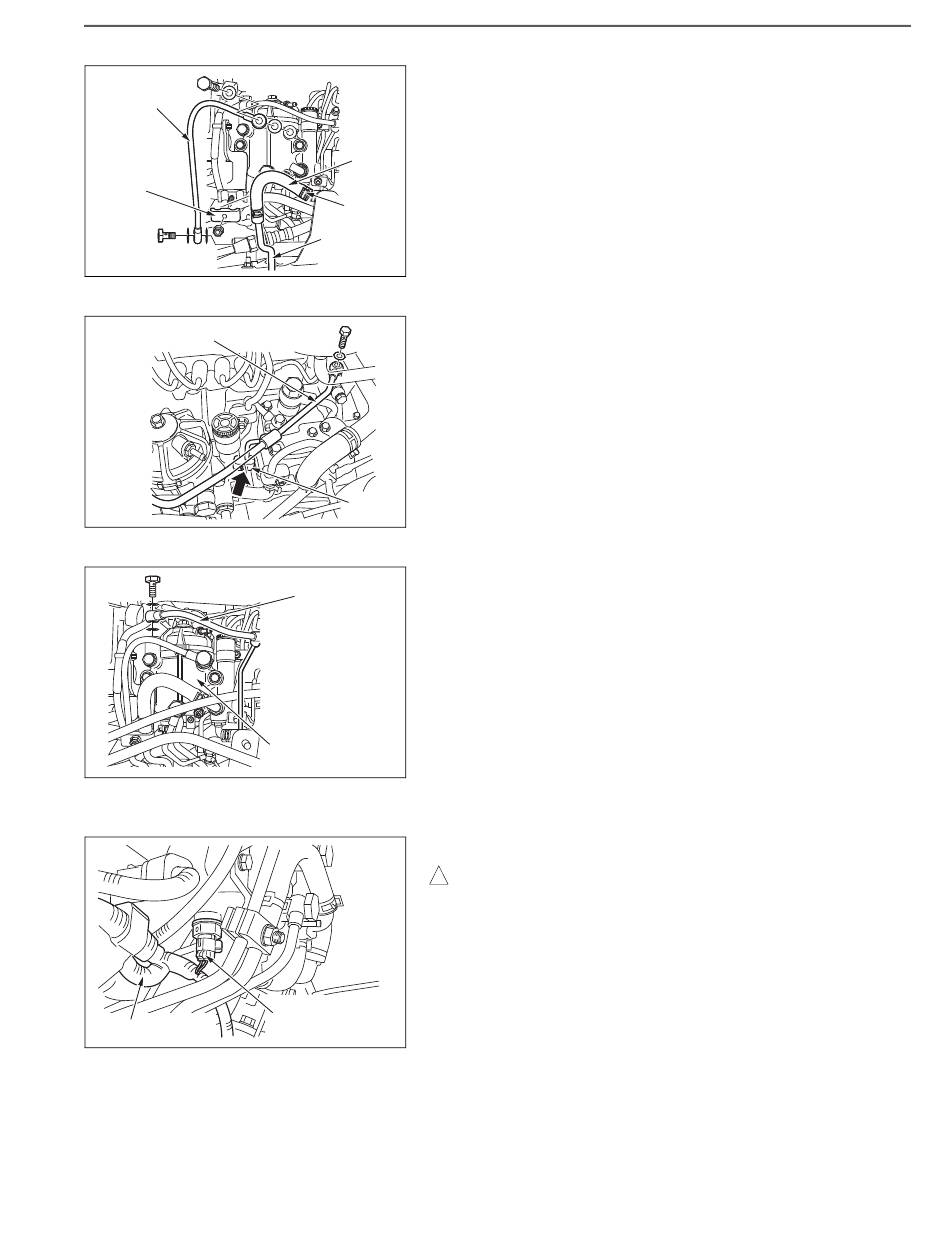

Connect fuel feed pipe No.1 and fuel feed pipe No.2 to the fuel fil-
ter and supply pump with a new gasket and 3 union bolts.
Tightening Torque:
25 N·m {255 kgf·cm, 18 lbf·ft}
Supply pump side
30 N·m {306 kgf·cm, 22 lbf·ft}
Fuel filter side
Mount the hose to the fuel filter with 2 clamps.
Mount the clip with the nut and fix fuel feed pipe No.1.
Mount the clip with the nut and fix return pipe No.2.
Connect return pipe No.2 to the fuel filter case with a new gasket
and 2 union bolts.
Tightening Torque:
30 N·m {306 kgf·cm, 22 lbf·ft}
Fuel filter side
24.5 N·m {250 kgf·cm, 18 lbf·ft}
Intake manifold side
CONNECTING THE HARNESS
Connect the connector to the water level warning switch.
AIR BLEEDING OF FUEL SYSTEM
Reference: FUEL SYSTEM (J05E), FUEL FILTER AND CASE
(ENGINE SIDE), REPLACEMENT, AIR BLEEDING OF FUEL
SYSTEM (Page 7-16)
