Def-Scr; Dpr Cleaner - Hino S5-LJ05E04A Workshop Manual

2–24

DEF-SCR

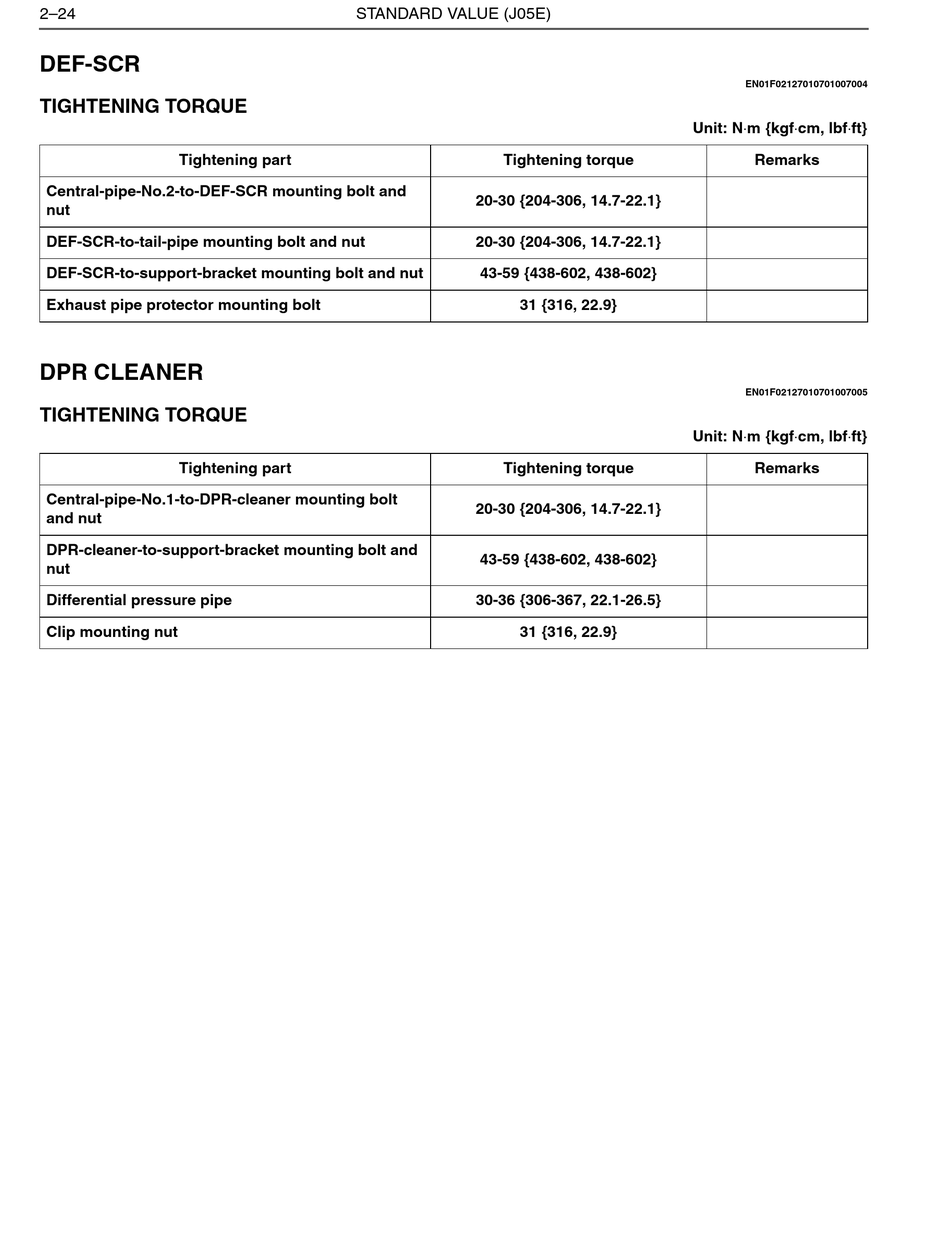

TIGHTENING TORQUE
Tightening part
Central-pipe-No.2-to-DEF-SCR mounting bolt and
nut
DEF-SCR-to-tail-pipe mounting bolt and nut
DEF-SCR-to-support-bracket mounting bolt and nut
Exhaust pipe protector mounting bolt

DPR CLEANER

TIGHTENING TORQUE
Tightening part
Central-pipe-No.1-to-DPR-cleaner mounting bolt
and nut
DPR-cleaner-to-support-bracket mounting bolt and
nut
Differential pressure pipe
Clip mounting nut
STANDARD VALUE (J05E)
Tightening torque
20-30 {204-306, 14.7-22.1}
20-30 {204-306, 14.7-22.1}
43-59 {438-602, 438-602}
31 {316, 22.9}
Tightening torque
20-30 {204-306, 14.7-22.1}
43-59 {438-602, 438-602}
30-36 {306-367, 22.1-26.5}
31 {316, 22.9}
EN01F02127010701007004
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701007005
Unit: Nm {kgfcm, lbfft}
Remarks
