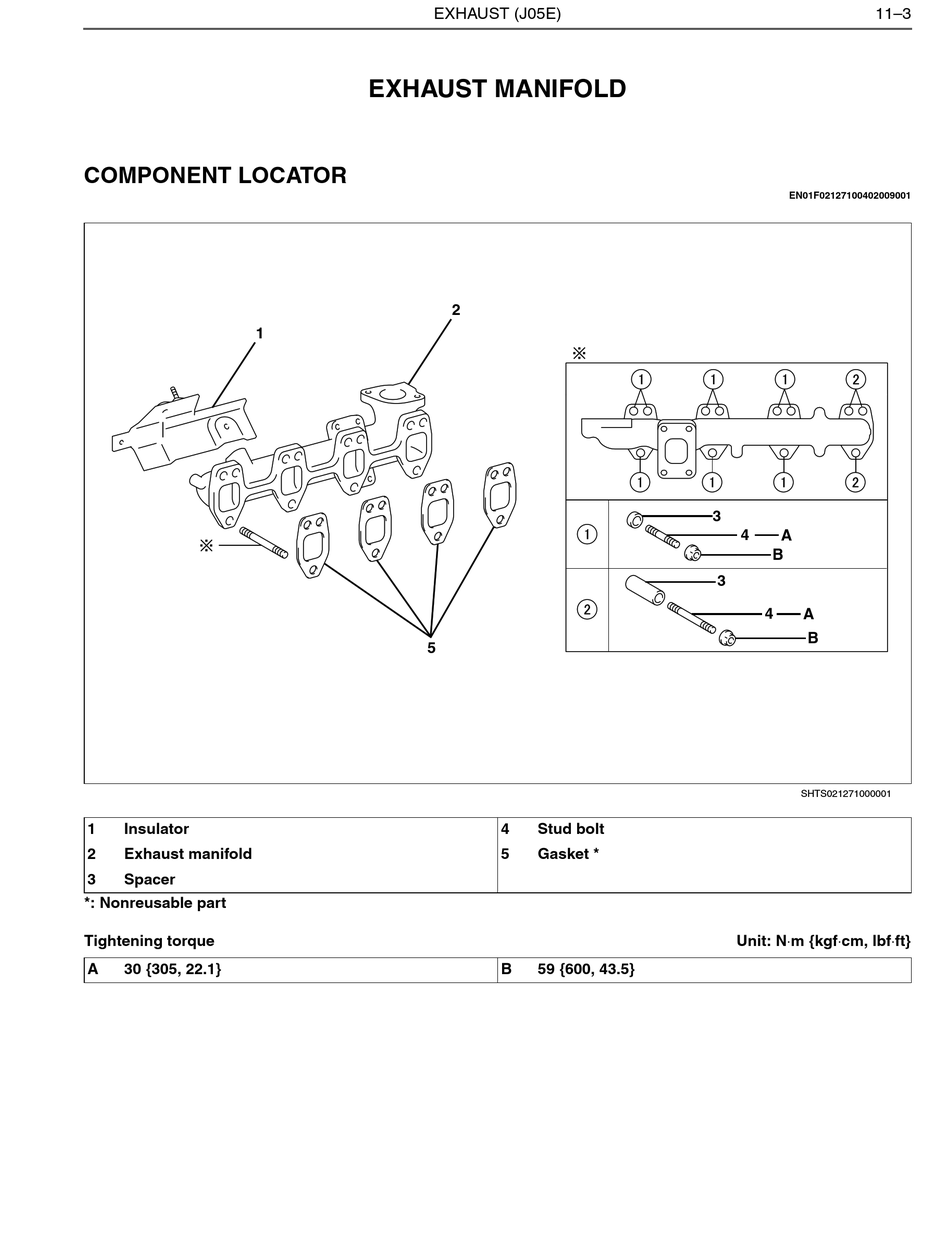

COMPONENT LOCATOR

1
1 Insulator
2

Exhaust manifold

3 Spacer
*: Nonreusable part
Tightening torque
A 30 {305, 22.1}
EXHAUST (J05E)
COMPOSITION DIAGRAM
EXHAUST MANIFOLD
2
5
4 Stud bolt
5 Gasket *
B 59 {600, 43.5}
11–3
EN01F02127100402009001
3
4
A
B
3
4 A
B
SHTS021271000001
Unit: Nm {kgfcm, lbfft}
