10–62
PLATE
BOLT x4
CENTER BOLT
CLAW
ENGINE MECHANICAL (J05E)

REPLACEMENT

REMOVING CRANKSHAFT REAR OIL SEAL
1.
2.
(1)
! CAUTION

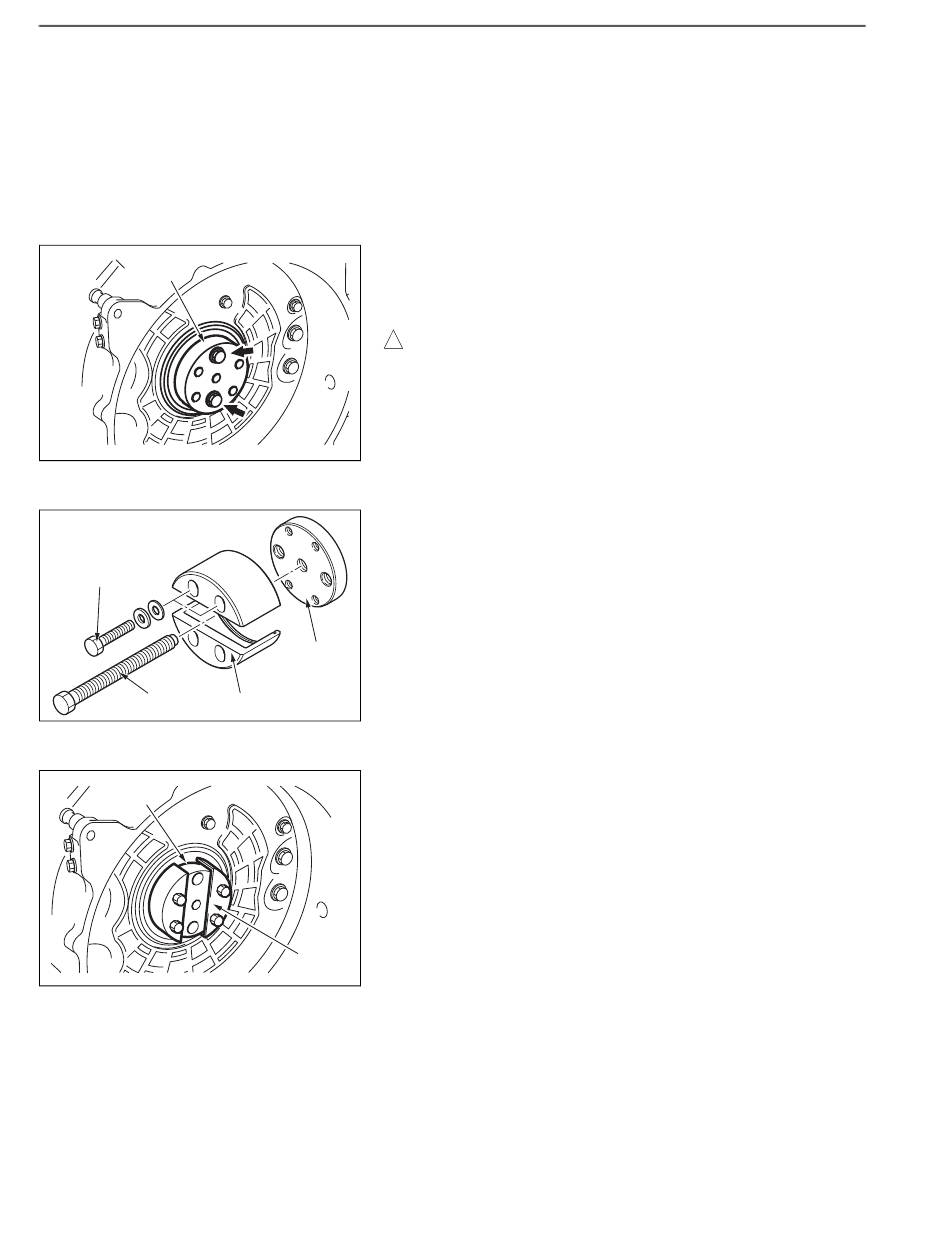

Align the large hole of the plate with the collar knock of the crank-
shaft.
SHTS021270900131
NOTICE
SST kit
PLATE
HOOK x2
SHTS021270900132
(2)
(3)
HOOK
SHTS021270900133
REMOVING THE FLYWHEEL ASSEMBLY
Reference: ENGINE MECHANICAL
ASSEMBLY, OVERHAUL,
ASSEMBLY (Page 10-57)
REMOVING CRANKSHAFT REAR OIL SEAL
Fasten the flywheel assembly mounting bolts (2 pcs.) to secure
the SST plate on the crankshaft.
SST: S0942-01742
Oil seal puller
Hook the 2 SST hooks on the claw of the crankshaft rear oil seal
and secure the hooks to the SST plate with the SST bolts.
From the crankshaft, remove the flywheel assembly mounting
bolts (2 pcs.) securing the SST plate.
EN01F02127090402021002
(J05E), FLYWHEEL
REMOVING THE FLYWHEEL
