Hino S5-LJ05E04A Workshop Manual page 327

CHECK THAT THERE ARE
NO HIT MARKS OR
SCRATCHINGS.
OIL SEAL PRESS
OIL SEAL
GUIDE
OIL SEAL GUIDE
INSERT WITH FELTED SURFACE OUTWARD
ENGINE MECHANICAL (J05E)

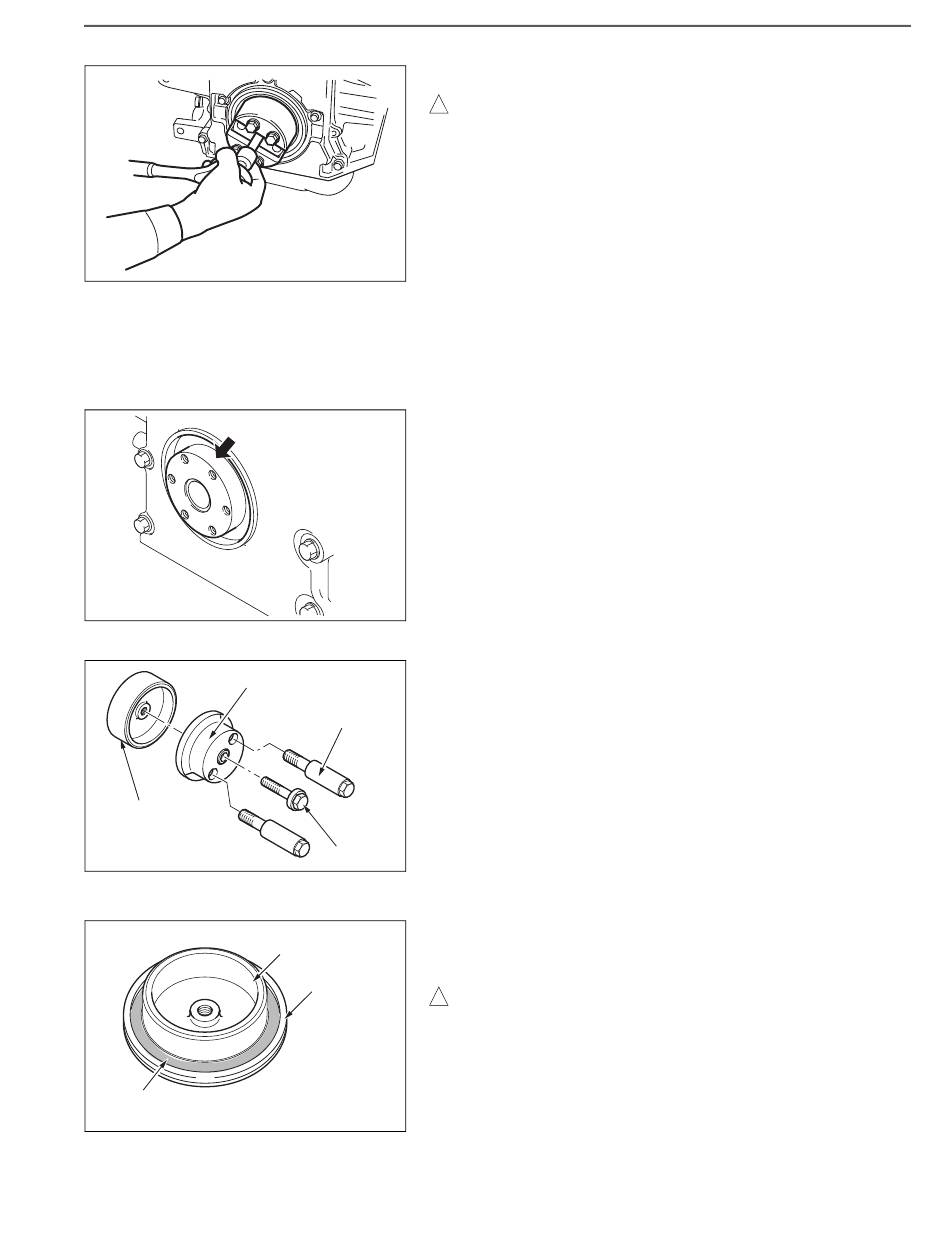

(4) Fit and gradually tighten the SST center bolt to pull off the crank-
shaft front oil seal.
! CAUTION
• Inspect the engagement of the SST and oil seal half way
through the work and pull off the seal without removing the
SST.
• The crankshaft front oil seal is nonreusable.
SHTS021270900109
MOUNTING THE CRANKSHAFT FRONT OIL SEAL
1. MOUNTING THE CRANKSHAFT FRONT OIL SEAL
(1) Check that there is no dent or dirt in the oil seal insertion part of
the front oil seal retainer and crankshaft.
SHTS021270900110
(2) Remove dirt from the SST.
SST:
NOTICE
GUIDE BOLT
SST kit
BOLT
SHTS021270900111
(3) Apply the small amount of engine oil to the interference and cir-
cumference surfaces of a new crankshaft front oil seal.
(4) Note the direction of the oil seal and insert it to the oil seal guide
of the SST.
OIL SEAL
! CAUTION
• Use care to have correct longitudinal orientation of the
crankshaft front oil seal. (The felted side must face to the
crankshaft pulley side.)
•
Mount the oil seal so that is not inclined.
SHTS021270900112
S0940-71030
Oil seal press
10–51
