Hino S5-LJ05E04A Workshop Manual page 396

10–120
BOLT FOR CHECKING
BOLT FOR
CHECKING
OIL HOSE
SST
ENGINE MECHANICAL (J05E)
(2)
SHTS021270900283
2.
(1)
COOLING JET
SHTS021270900284
(2)
! CAUTION
Use new engine oil for injection.
SHTS021270900285
(3)
CYLINDER BLOCK
SHTS021270900286
Use the dye penetrant testing (red check) to inspect the cylinder
block for crack and damage. If found defective, replace the cylin-
der block.

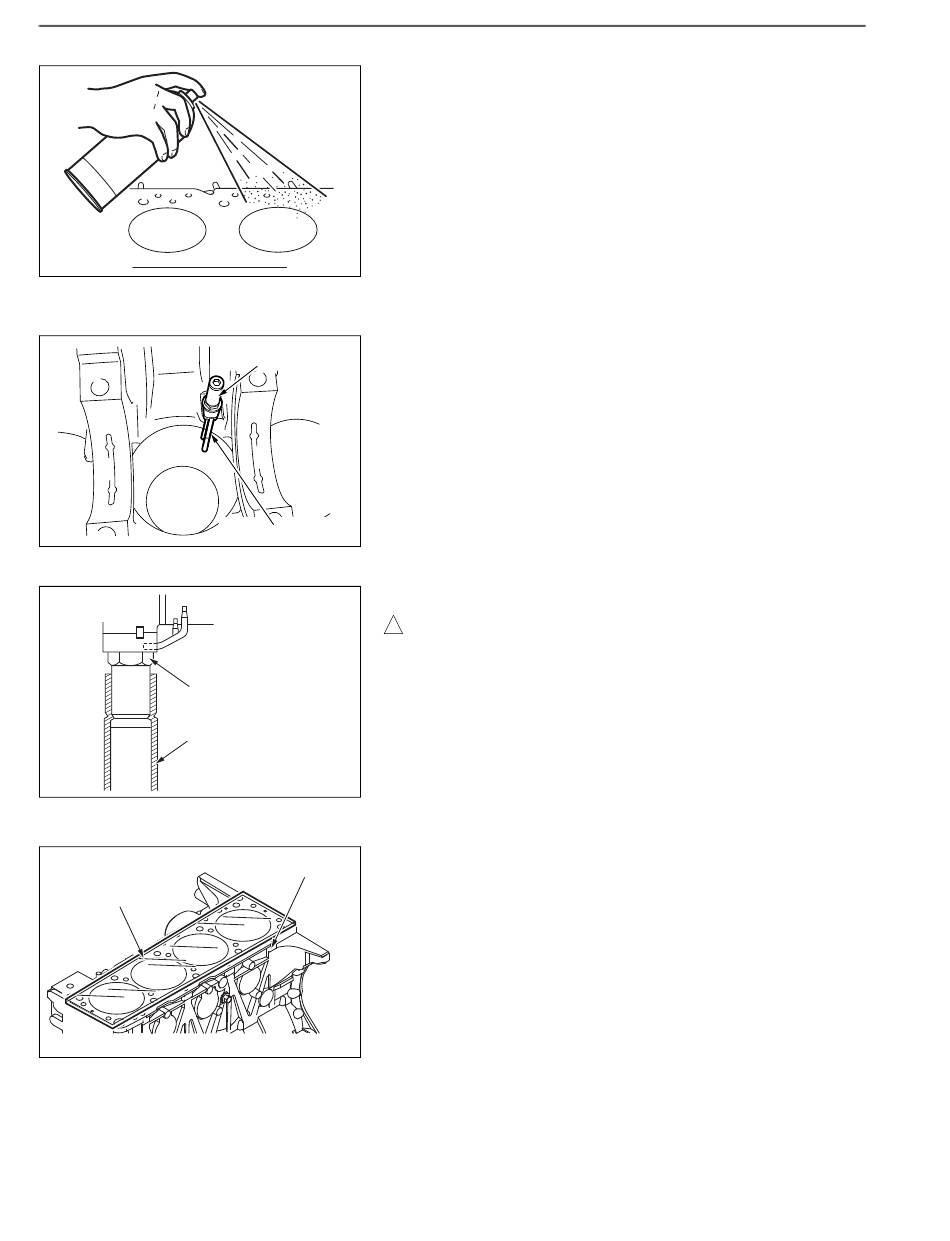

INSPECTING COOLING JET INJECTION POSITION
Unfasten the standard union bolt and use the SST to mount the
cooling jet to the cylinder block.
SST: SZ910-24098
Bolt for checking
Connect the oil hose for injection test to the SST from under the
cylinder block.
Set the SST to the upper surface of cylinder block.
SST: 09219-E4030
Gauge
