10–114
LINER IDENTIFICATION MARK
ENGINE MODEL
FRONT OF ENGINE
ENGINE MECHANICAL (J05E)
INSPECTING THE COMPONENTS
1.
(1)
! CAUTION
After cleaning the cylinder liners, prevent rusts. Use a bearing
scraper or other similar tools to scrape off rusts if any.
SHTS021270900272
MOUNTING THE CYLINDER LINER
1.
(1)
(2)
NOTICE
Vertical insertion can be performed with or without using the SST.
SST
SHTS021270900273
! CAUTION
•
CYLINDER
LINER
"A", "B", "C"
MARK
POSITION
SHTS021270900274
•
FRONT
SIDE
OF BLOCK
EXAMPLE
B A C B
SHTS021270900275

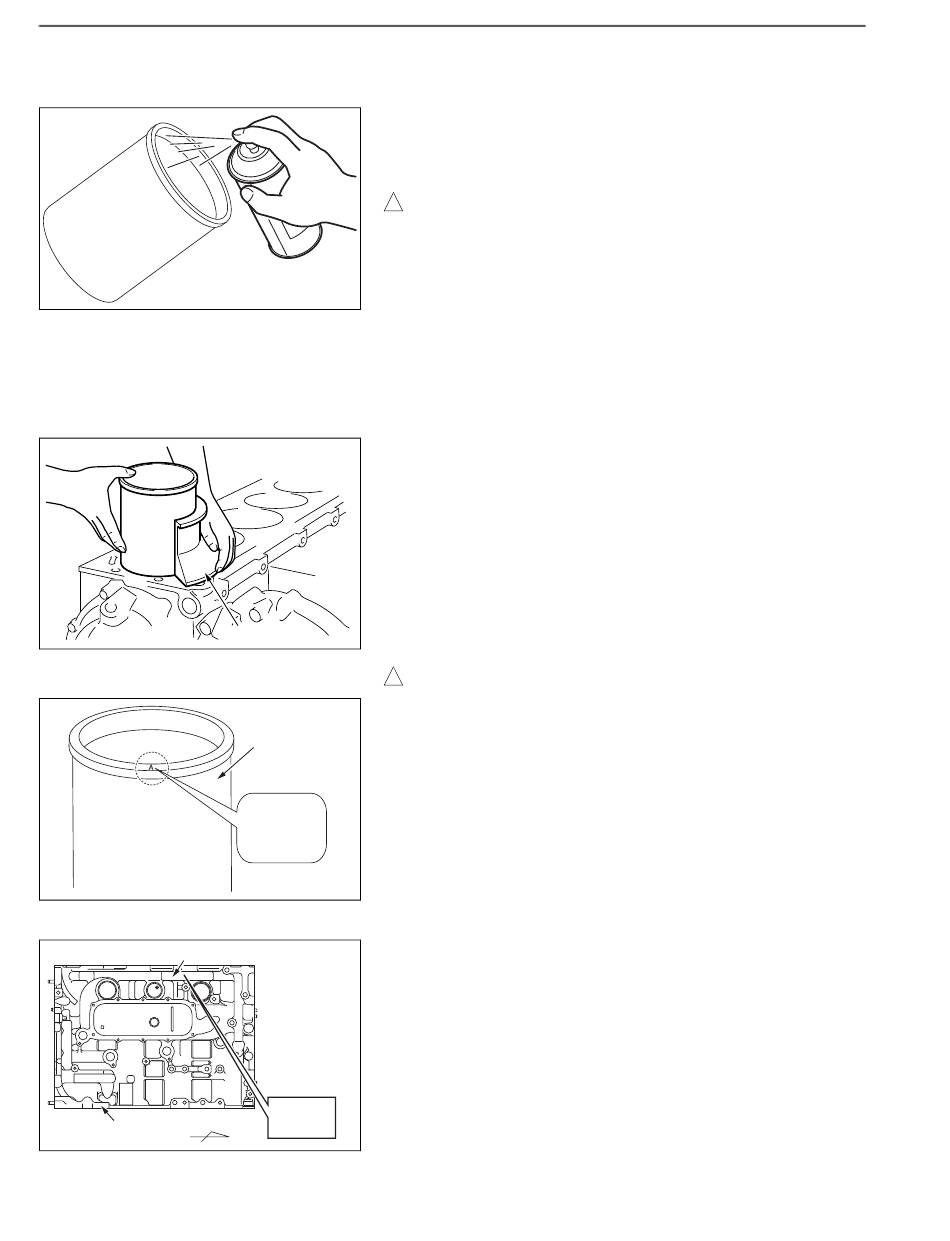

INSPECTING THE CYLINDER LINER FOR CRACK AND DAM-
AGE
Use the dye penetrant testing (red check) to inspect the cylinder
liner for crack and damage. If found defective, replace the cylinder
liner.
MOUNTING THE CYLINDER LINER
Apply engine oil to the inner surface of the cylinder block bore.
Align the alignment mark indicated on the cylinder liner and the
one indicated on the cylinder block and use the SST to insert the
cylinder liner in the vertical posture.
SST: S0947-11490
Guide
When mounting new cylinder liners, select appropriate cylin-
der liners that have the same identification mark (A, B or C)
as the liner identification mark engraved on the cylinder
block in the order of cylinders.
The figure shows that the No.1 cylinder has liner B.
