Hino S5-LJ05E04A Workshop Manual page 418

11–10
HARNESS
BRACKET
EXHAUST (J05E)
3. DISCONNECTING SENSORS
NOTICE
Remove the connectors and clips from the vehicle side. Sensors
do not need to be removed from the muffler.
(1) Remove the DPR differential pressure sensor.
Reference: EXHAUST (J05E), DPR DIFFERENTIAL PRES-
SURE SENSOR, REPLACEMENT, REMOVE THE DPR DIF-
FERENTIAL PRESSURE SENSOR (Page 11-96)
(2) Remove the SCR upstream NOx controller.
Reference: EXHAUST (J05E), SCR UPSTREAM NOx SEN-
SOR, REPLACEMENT, REMOVING THE SCR UPSTREAM
NOx SENSOR (Page 11-99)
(3) Remove the SCR downstream NOx controller.
Reference: EXHAUST (J05E), SCR DOWNSTREAM NOx SEN-
SOR, REPLACEMENT, REMOVING THE SCR DOWNSTREAM
NOx SENSOR (Page 11-102)
(4) Disconnect the DOC upstream temperature sensor.
Reference: EXHAUST (J05E), DOC UPSTREAM TEMPERA-
TURE
UPSTREAM TEMPERATURE SENSOR (Page 11-108)
(5) Disconnect the DPR upstream temperature sensor.
Reference: EXHAUST (J05E), DPR UPSTREAM TEMPERA-
TURE SENSOR, REPLACEMENT, REMOVING THE DPR
UPSTREAM TEMPERATURE SENSOR (Page 11-111)
(6) Disconnect a DPR downstream temperature sensor.
Reference: EXHAUST (J05E), DPR DOWNSTREAM TEMPER-
ATURE SENSOR, REPLACEMENT, REMOVING THE DPR
DOWNSTREAM TEMPERATURE SENSOR (Page 11-113)
(7) Disconnect the SCR upstream temperature sensor.
Reference: EXHAUST (J05E), SCR UPSTREAM TEMPERA-
TURE SENSOR, REPLACEMENT, REMOVING THE SCR
UPSTREAM TEMPERATURE SENSOR (Page 11-116)

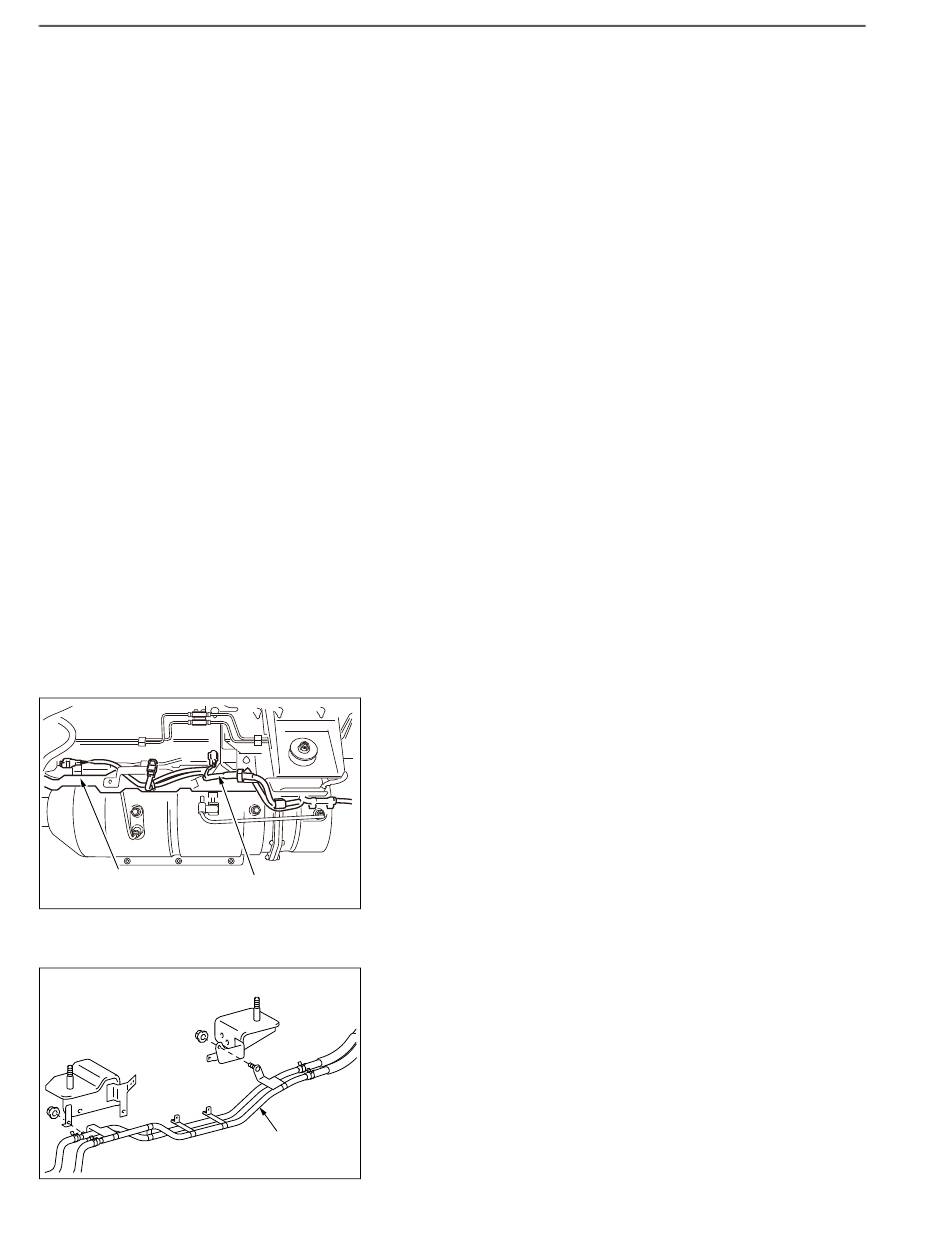

4. REMOVING THE HARNESS
(1) Remove the harness from the harness bracket.
HARNESS
SHTS021271000013
5. REMOVING THE WATER PIPE
(1) Unfasten the 2 nuts to remove the water pipe from the muffler
bracket.
NOTICE
The hose does not need to be removed.
WATER PIPE
SHTS021271000014
SENSOR, REPLACEMENT, REMOVING DOC
