MOUNTING THE SCR UPSTREAM NOx SENSOR

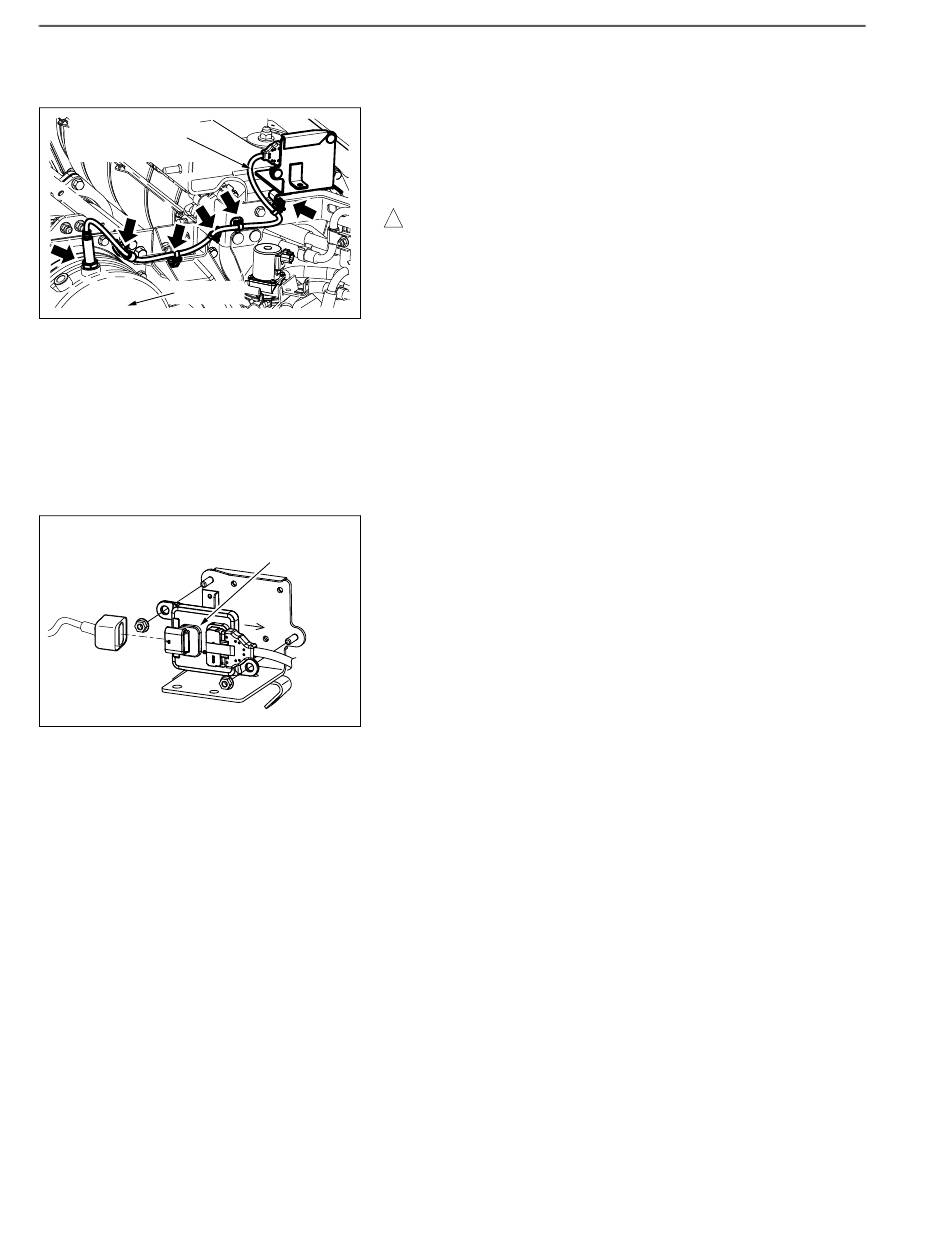

1. MOUNTING THE SCR UPSTREAM NOx SENSOR
(1) Connect the SCR upstream NOx sensor to the muffler and then
the harness clamp.
Tightening Torque:
40-60 N·m {408-612 kgf·cm, 29.5-44.2 lbf·ft}
! CAUTION
• When reusing, clean the old anti-seizure lubricant on the
SCR upstream NOx sensor and apply anti-seizure lubricant
(WEICOM Anti-Seize ASW "High Tech" Assembly Paste or
equivalent) to the thread area.
•
A new upstream NOx sensor has anti-seizure lubricant
SHTS021271000178
applied.
•
Pay attention not to twist the harness of the SCR upstream
NOx sensor.
•
Do not allow the harness to interfere with the bracket or bolt.
(2) Mount the clip with a nut.
Tightening Torque:
31 N·m {316 kgf·cm, 22.9 lbf·ft}
(3) Mount the SCR upstream NOx controller to the bracket with 2
nuts.
SCR UPSTREAM
Tightening Torque:
NOx SENSOR
5.5 N·m {56 kgf·cm, 4.1 lbf·ft}
2. CONNECTING THE HARNESS
(1) Connect the connector to the SCR upstream NOx controller.
