Hino S5-LJ05E04A Workshop Manual page 627

16–18
JIG E (FOR PRESS)
STARTING/CHARGING (J05E)

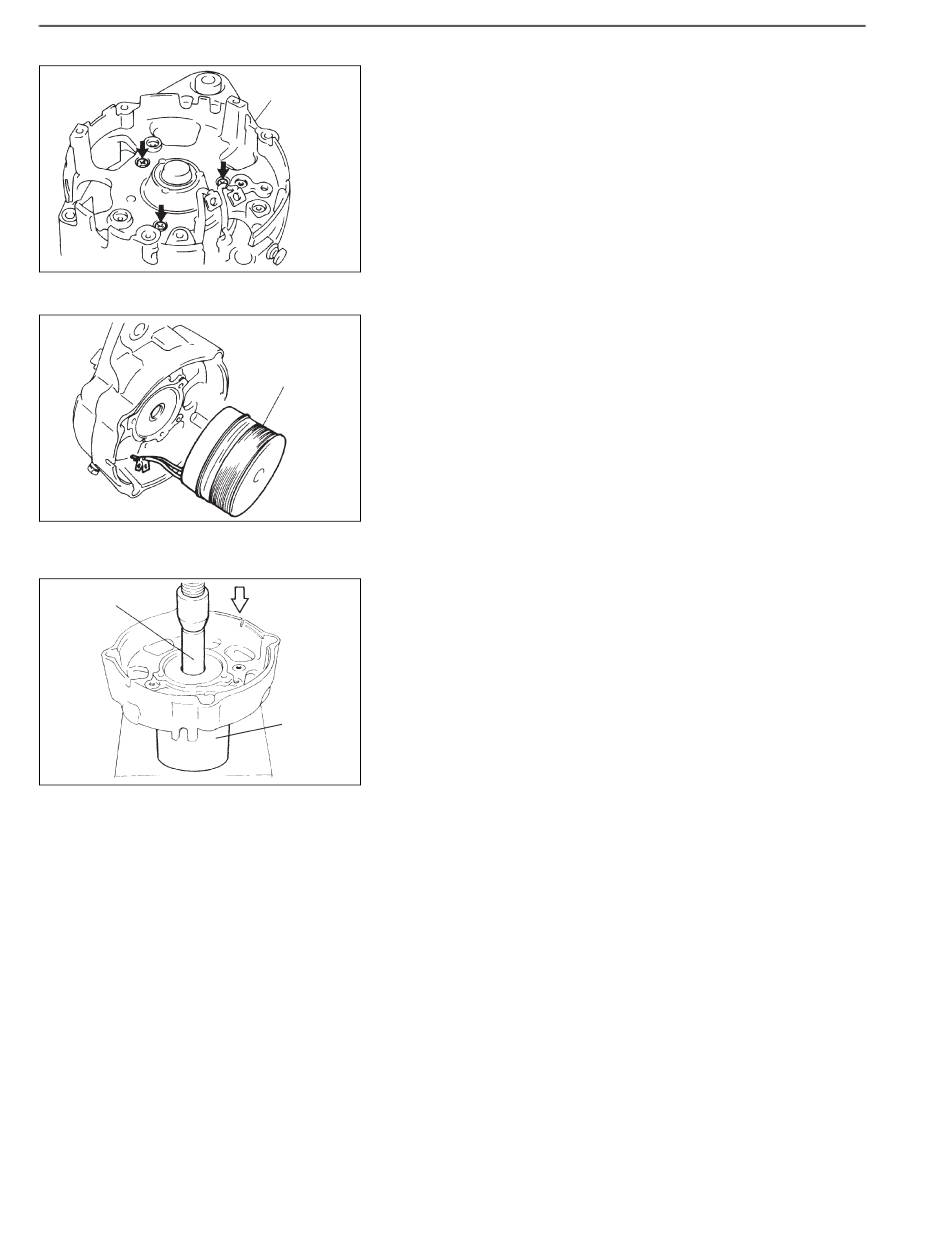

12. REMOVING THE FIELD COIL
(1) Remove the 3 screws to remove the field coil from the rear frame.
REAR FRAME
SHTS021271500049
(2) Field coil removed.
FIELD COIL
SHTS021271500050
13. REMOVING THE REAR BEARING
(1) Using the JIG E and press, remove the rear bearing from the rear
PRESS
frame.
NOTICE
Do not reuse the rear bearing.
JIG E
(FOR
SUPPORT)
SHTS021271500051
