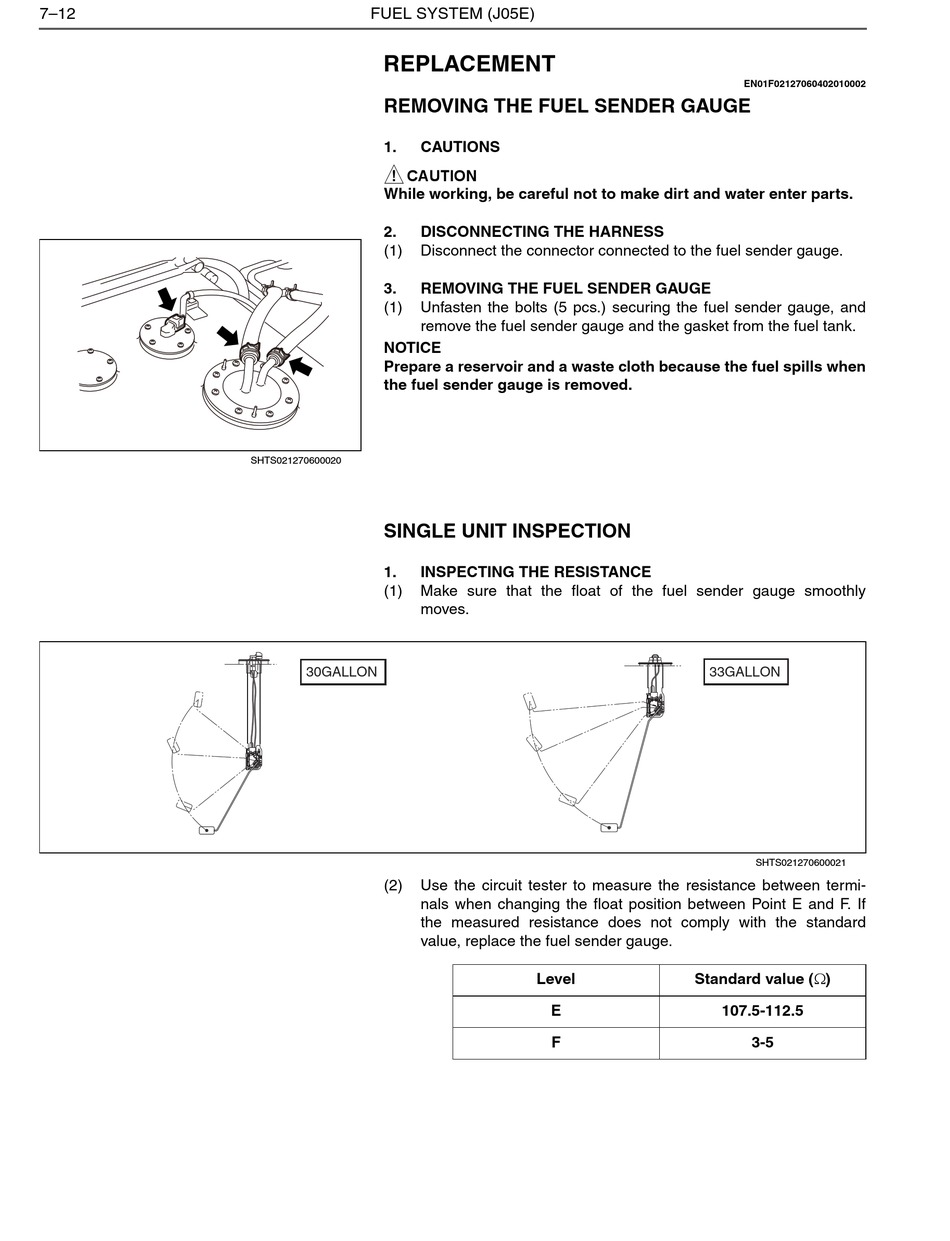

7–12 FUEL SYSTEM (J05E)

REPLACEMENT

REMOVING THE FUEL SENDER GAUGE
1. CAUTIONS
! CAUTION
While working, be careful not to make dirt and water enter parts.
2. DISCONNECTING THE HARNESS
(1) Disconnect the connector connected to the fuel sender gauge.
3. REMOVING THE FUEL SENDER GAUGE
(1) Unfasten the bolts (5 pcs.) securing the fuel sender gauge, and
remove the fuel sender gauge and the gasket from the fuel tank.
NOTICE
Prepare a reservoir and a waste cloth because the fuel spills when
the fuel sender gauge is removed.
SHTS021270600020
SINGLE UNIT INSPECTION
1. INSPECTING THE RESISTANCE
(1) Make sure that the float of the fuel sender gauge smoothly
moves.
30GALLON
(2) Use the circuit tester to measure the resistance between termi-
nals when changing the float position between Point E and F. If
the measured resistance does not comply with the standard
value, replace the fuel sender gauge.
33GALLON
Level Standard value ()
E
F
EN01F02127060402010002
SHTS021270600021
107.5-112.5
3-5
