6.6. Arbitration

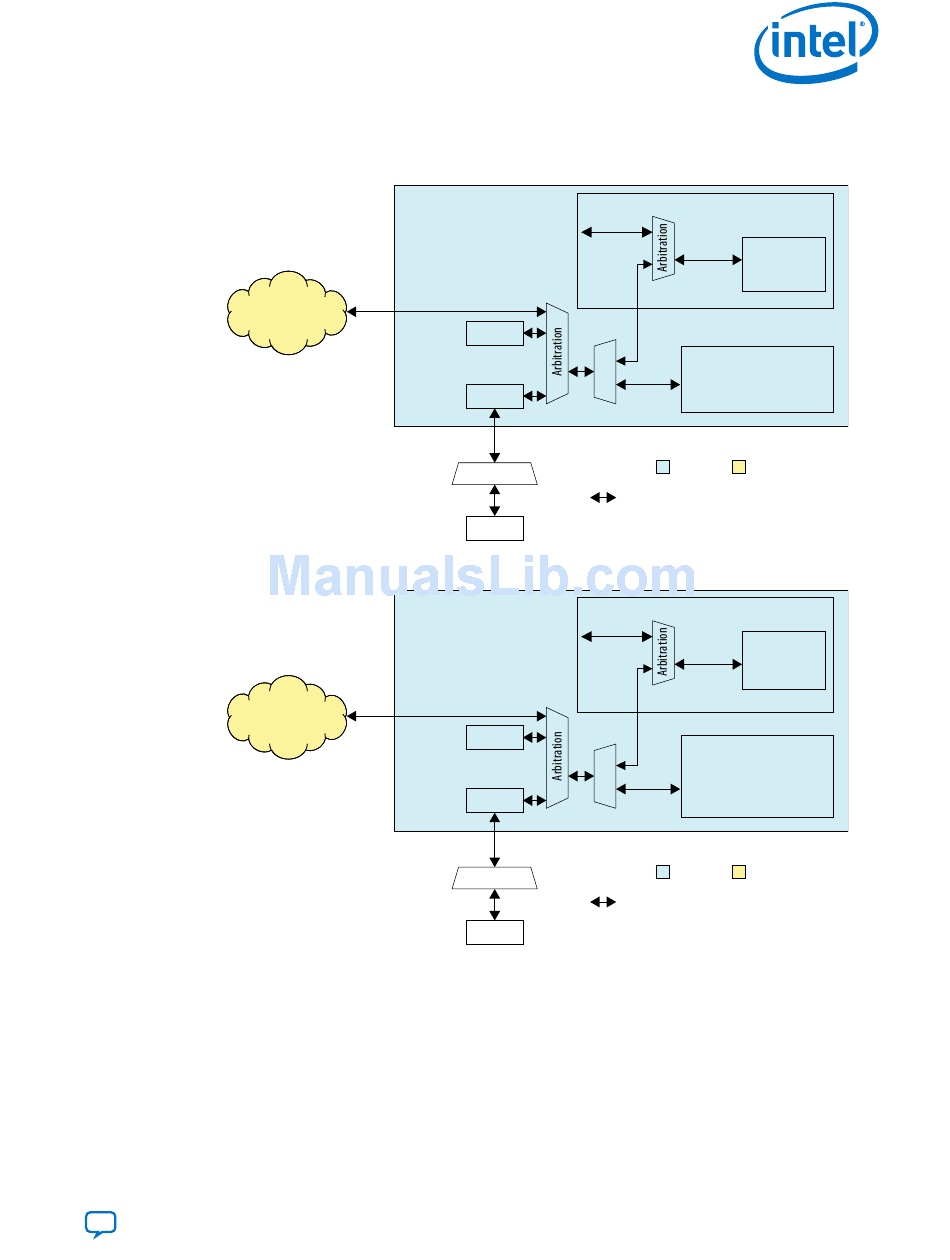

Figure 211. Cyclone 10 GX ATX PLL with Embedded Streamer
Reconfiguration
Figure 212. Cyclone 10 GX Native PHY with Embedded Streamer
Reconfiguration
Send Feedback
Cyclone 10 GX ATX PLL IP
User
Logic
Cyclone 10 GX Native PHY
User
Logic
Cyclone 10 GX ATX PLL
To/From
PreSICE
Reconfiguration
Interface
Streamer
ADME
Debug Fabric
Connectivity to channel reconfiguration registers
and optional soft registers
Host Link
Cyclone 10 GX Transceiver
To/From
PreSICE
Reconfiguration
Interface
Streamer
ADME
Debug Fabric
Connectivity to channel reconfiguration registers
and optional soft registers
Host Link
®
Intel Cyclone
Internal
Configuration
Bus
Configuration
Registers
Avalon-MM
Interface
Optional Reconfiguration Logic
(Capability, Control and Status)
Intel IP User Logic
Internal
Configuration
Channel
Bus
Configuration
Avalon-MM Registers
Interface
Optional Reconfiguration Logic
(Capability, Control and Status,
PRBS Soft Accumulators
Intel IP User Logic
®
