3.2.1. Dedicated Reference Clock Pins

To minimize the jitter, the advanced transmit (ATX) PLL and the fractional PLL (fPLL)
can source the input reference clock directly from the reference clock buffer without
passing through the reference clock network. The input reference clock is also fed into
the reference clock network.

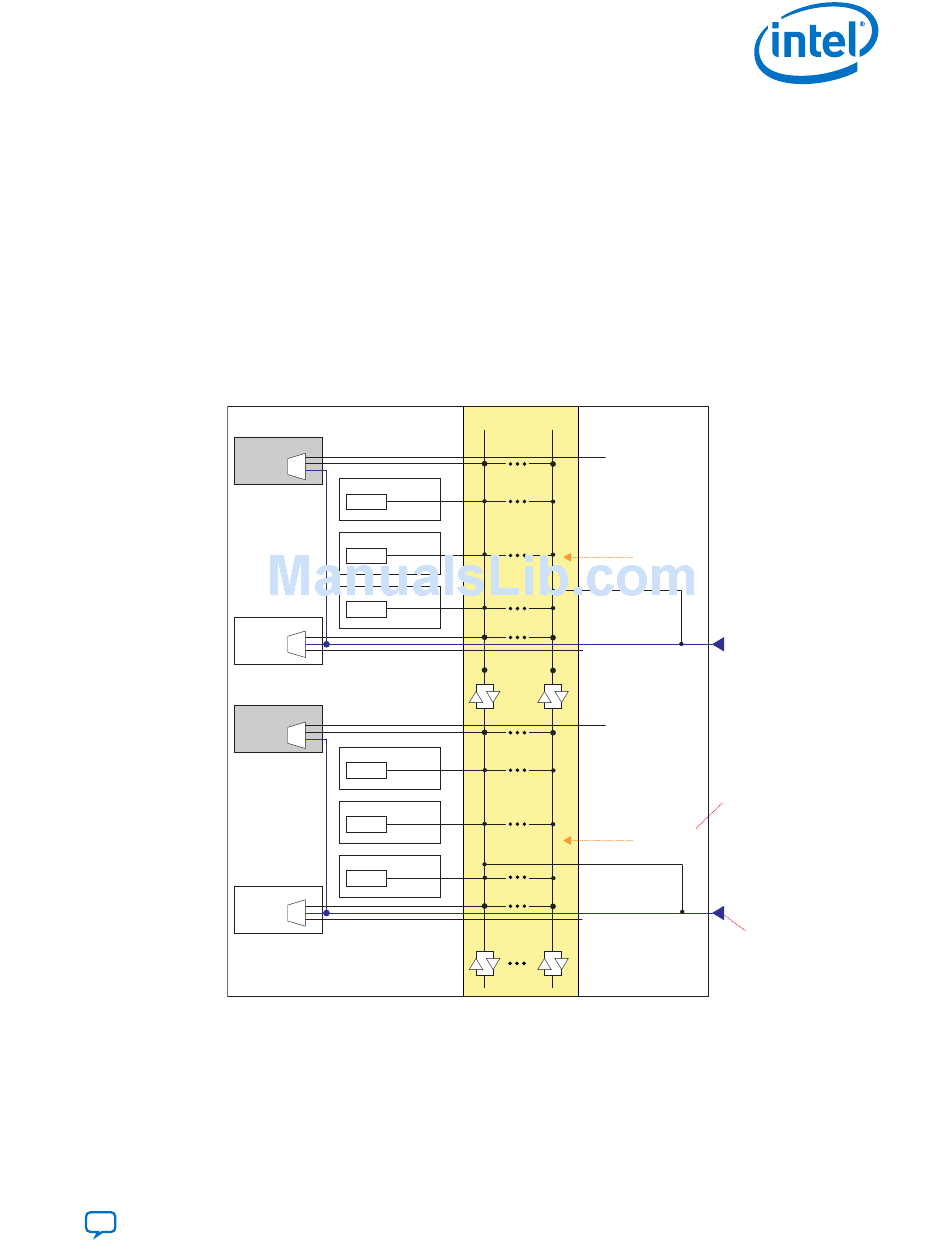

Figure 123. Dedicated Reference Clock Pins
There are two dedicated reference clock (
pin feeds the bottom ATX PLL and fPLL. The top
reference clock pins including the 4 channels bank can also drive the reference clock network.
fPLL1
ATX PLL1
fPLL0
ATX PLL0

3.2.2. Receiver Input Pins

Receiver input pins can be used as an input reference clock source to transceiver PLLs.
However, they cannot be used to drive core fabric.
