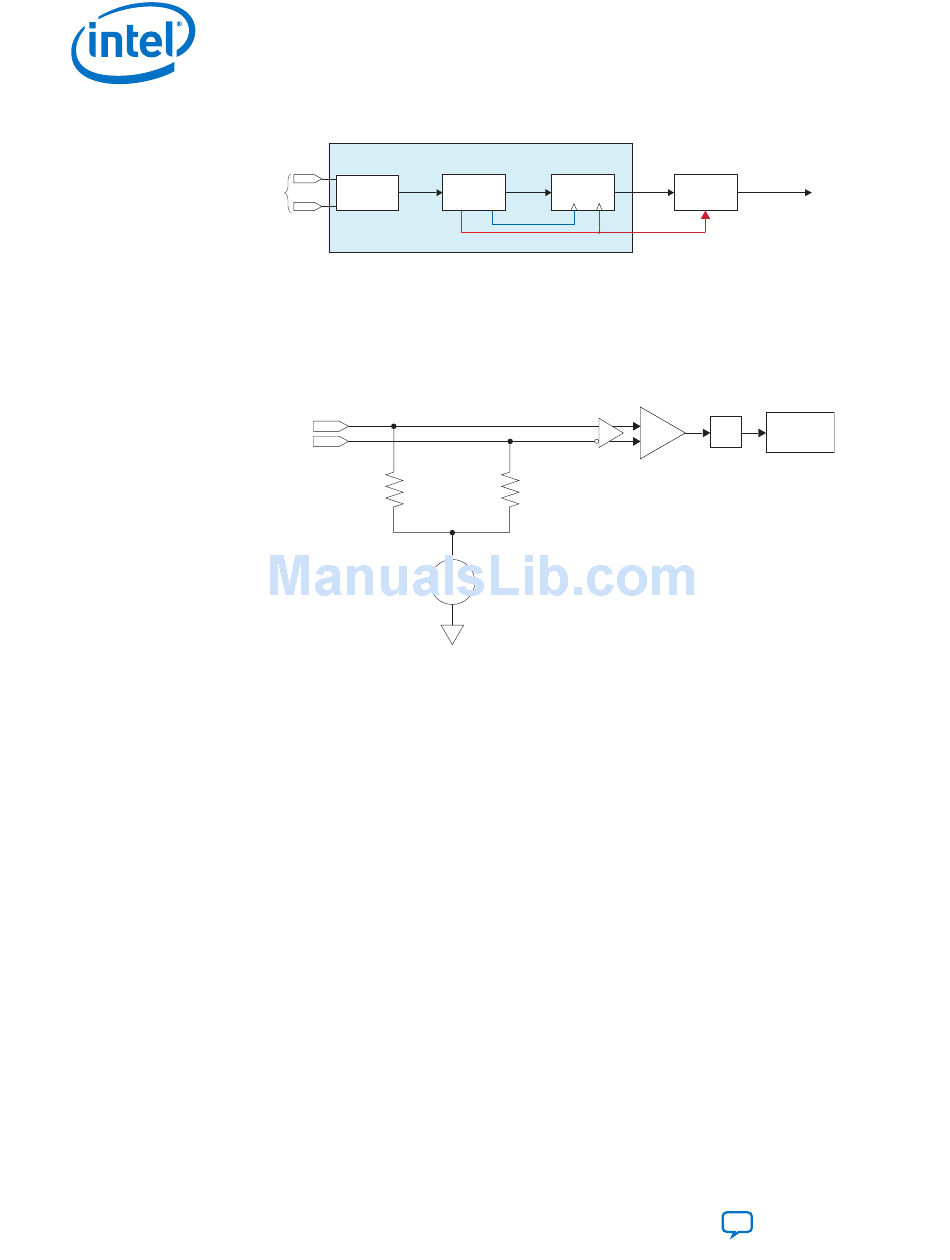

Figure 171. Receiver PMA Block Diagram
Receiver Serial
Differential Input
5.1.2.1. Receiver Buffer
The receiver input buffer receives serial data from
serial data to the clock data recovery (CDR) unit and deserializer.
Figure 172. Receiver Buffer
From Serial Data
(rx_serial_data)
R1* - Half of the actual on-chip termination selected
The receiver buffer supports the following features:
• Programmable common mode voltage (V
• Programmable differential On-Chip Termination (OCT)
• Signal Detector
• Continuous Time Linear Equalization (CTLE)
• Variable Gain Amplifiers (VGA)
5.1.2.1.1. Programmable Common Mode Voltage (V
The receiver buffer has on-chip biasing circuitry to establish the required V
receiver input.
The Quartus Prime software automatically chooses the optimal setting for RX V
Note: On-chip biasing circuitry is available only if you select OCT. If you select external
termination, you must implement off-chip biasing circuitry to establish the V
receiver input buffer.
Manual V
® ®
