3.1.4. CMU PLL

The clock multiplier unit (CMU) PLL resides locally within each transceiver channel. The
channel PLL's primary function is to recover the receiver clock and data in the
transceiver channel. In this case the PLL is used in clock and data recovery (CDR)
mode.
When the channel PLL of channels 1 or 4 is configured in the CMU mode, the channel
PLL can drive the local clock generation block (CGB) of its own channel, then the
channel cannot be used as a receiver.
The CMU PLL from transceiver channel 1 and channel 4 can also be used to drive other
transceiver channels within the same transceiver bank. The CDR of channels 0, 2, 3,
and 5 cannot be configured as a CMU PLL.
For datarates lower than 6 Gbps, the local CGB divider has to be engaged (TX local
division factor in transceiver PHY IP under the TX PMA tab).

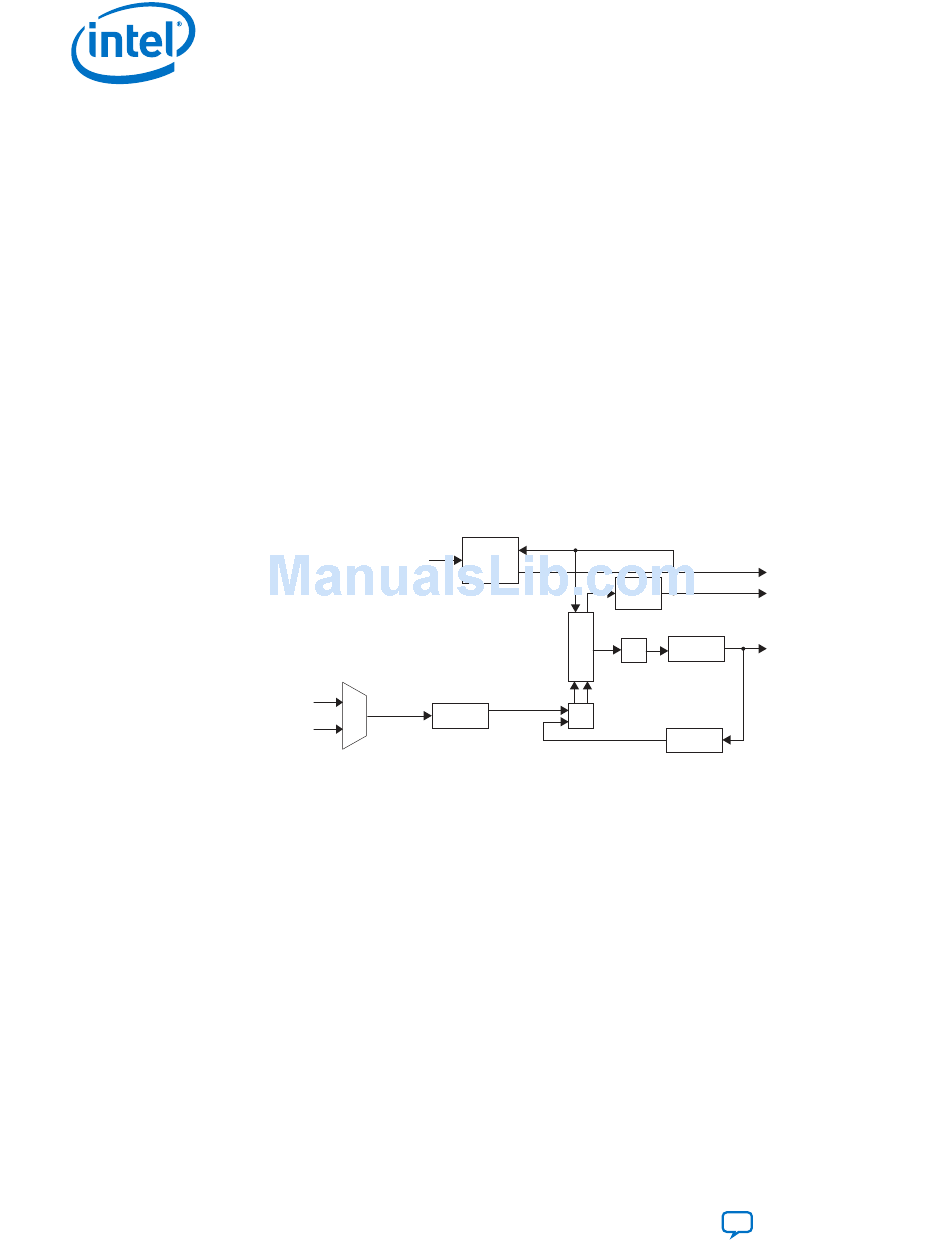

Figure 121. CMU PLL Block Diagram
Reference clock network
Receiver input pin
Input Reference Clock
The input reference clock for a CMU PLL can be sourced from either the reference
clock network or a receiver input pin. The input reference clock is a differential signal.
For protocol jitter compliance at a datarate > 10 Gbps, Intel recommends using the
dedicated reference clock pin in the same triplet with the CMU PLL as the input
reference clock source. The input reference clock must be stable and free-running at
device power-up for proper PLL operation. If the reference clock is not available at
device power-up, then you must recalibrate the PLL when the reference clock is
available. Refer to the Calibration section for details about PLL calibration and the
clock requirement.
CLKUSR
Note:
The CMU PLL calibration is clocked by the
available for calibration to proceed. Refer to the Calibration section for more details
about the
Reference Clock Multiplexer (Refclk Mux)
The refclk mux selects the input reference clock to the PLL from the various reference
clock sources available.
® ®
Intel Cyclone 10 GX Transceiver PHY User Guide
206
on page 373
User Control
(LTR/LTD)
Refclk
Multiplexer
Input reference
clock
N Counter
clock.
CLKUSR
Lock to
Reference
Controller
Lock
Detector
CP &
VCO
LF
Up
Down
refclk
PFD
fbclk
clock which must be stable and
CLKUSR
3. PLLs and Clock Networks
UG-20070 | 2018.09.24
Lock to Reference
PLL Lock Status
L Counter Output
M Counter
