To enable serial loopback mode:
1. Perform the necessary steps from steps 1 to 7 in Steps to Perform Dynamic
Reconfiguration.
2. Perform a read-modify-write to address 0x2E1 to set bit 0 to 1'b1
3. Perform the necessary steps from steps 9 to 12 in Steps to Perform Dynamic
Reconfiguration.
To disable serial loopback mode:
1. Perform the necessary steps from steps 1 to 7 in Steps to Perform Dynamic
Reconfiguration.
2. Perform a read-modify-write to address 0x2E1 to set bit 0 to 1'b0
3. Perform the necessary steps from steps 9 to 12 in Steps to Perform Dynamic
Reconfiguration.
You can also enable the serial loopback mode by turning on Enable rx_seriallpbken
port in the Native PHY IP Parameter Editor and driving the port to 1'b1.
Reverse Serial Loopback Mode (Pre-CDR)
In the pre-CDR mode, data received through the RX input buffer is looped back to the
TX output buffer. You can enable the reverse serial loopback mode by performing
read-modify-write to the following registers.

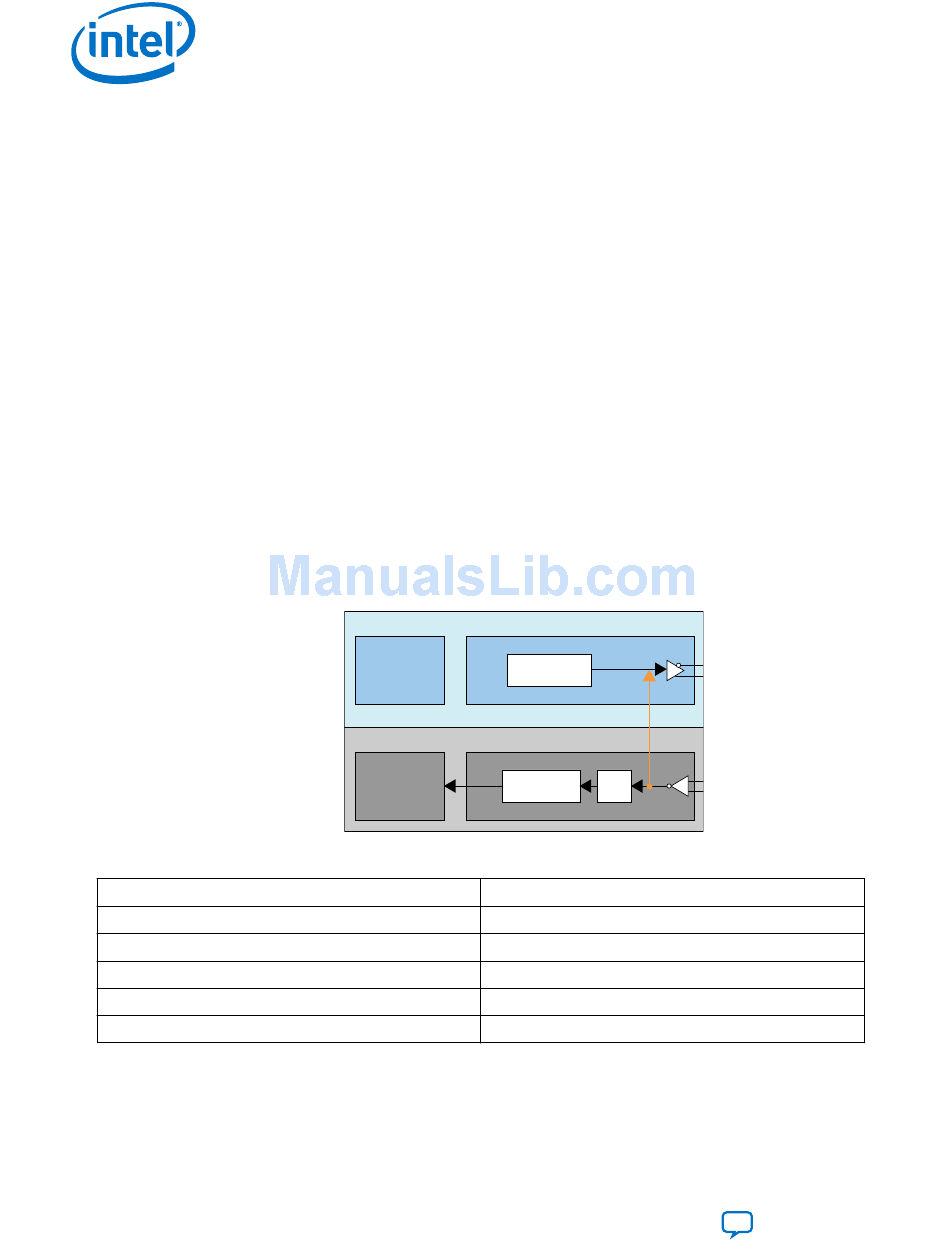

Figure 215. Reverse Serial Loopback Mode (Pre-CDR)
Table 188. Bit Values to Be Set
Note: No specific order to access these registers.
® ®
Intel Cyclone 10 GX Transceiver PHY User Guide
344
Transmitter
PCS
Receiver
PCS
Address
0x137[7]
0x13C[7]
0x132[5:4]
0x142[4]
0x11D[0]
6. Reconfiguration Interface and Dynamic Reconfiguration
PMA
Serializer
Pre-CDR Reverse
Serial Loopback
PMA
Deserializer CDR
Bit Values
UG-20070 | 2018.09.24
1'b1
1'b0
2'b00
1'b1
1'b1
