1.1. Device Transceiver Layout

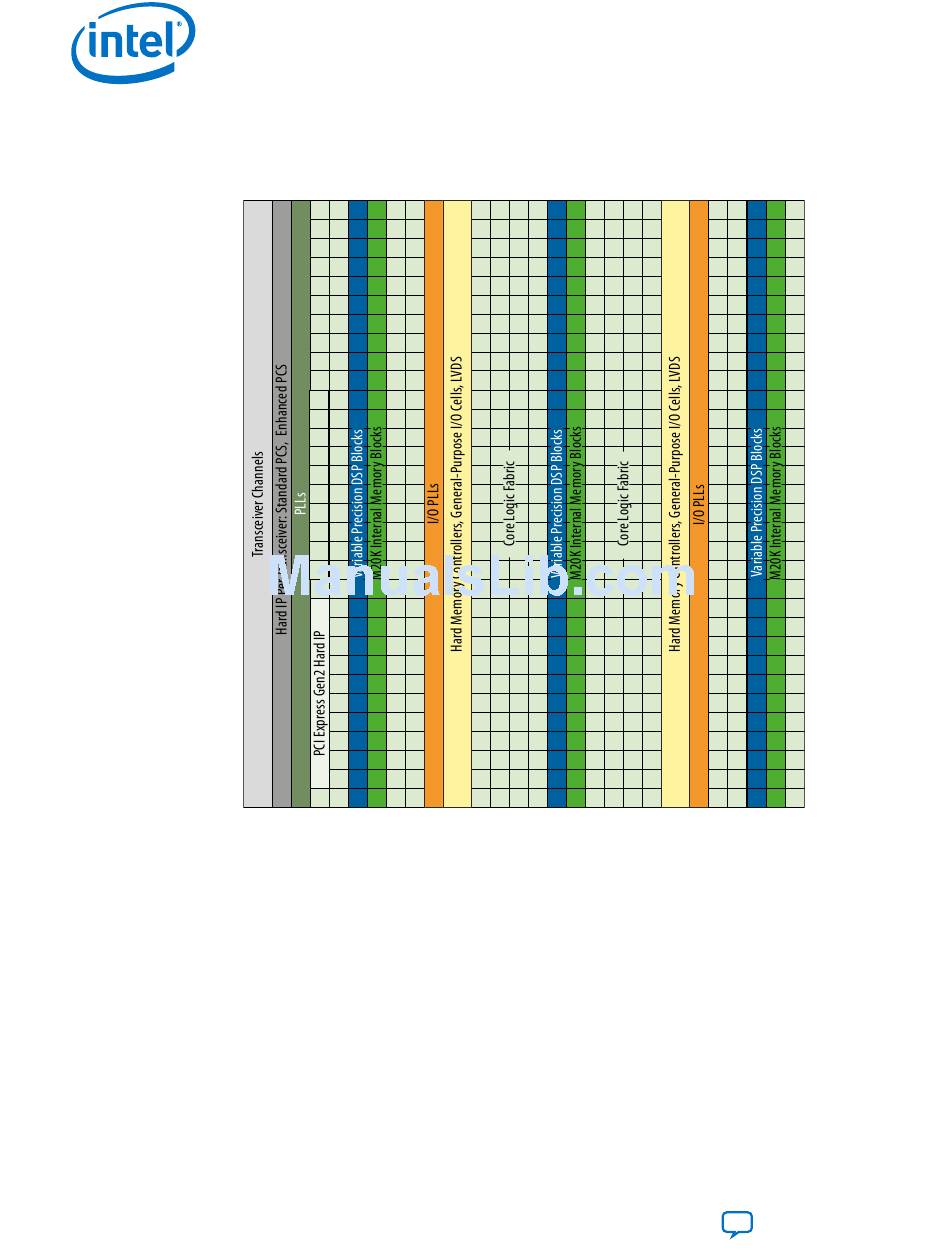

Figure 1.
Intel Cyclone 10 GX FPGA Architecture Block Diagram
The transceiver channels are placed on the left side periphery in Intel Cyclone 10 GX devices.

1.1.1. Intel Cyclone 10 GX Device Transceiver Layout

Intel Cyclone 10 GX devices offer 6-, 10-, or 12-transceiver channel counts. Each
transceiver bank has up to six transceiver channels. Intel Cyclone 10 GX devices also
have one embedded PCI Express Hard IP block.
The figures below illustrate different transceiver bank layouts for Intel Cyclone 10 GX
device variants.
®
®
Intel
Cyclone
10 GX Transceiver PHY User Guide
8
®
®
1. Intel
Cyclone
10 GX Transceiver PHY Overview
UG-20070 | 2018.09.24
