3. PLLs and Clock Networks
UG-20070 | 2018.09.24

3.1.2. ATX PLL

The ATX PLL contains LC tank-based voltage controlled oscillators (VCOs). These LC
VCOs have different frequency ranges to support a continuous range of operation.
When driving the transceiver directly, the ATX PLL only supports the integer mode.

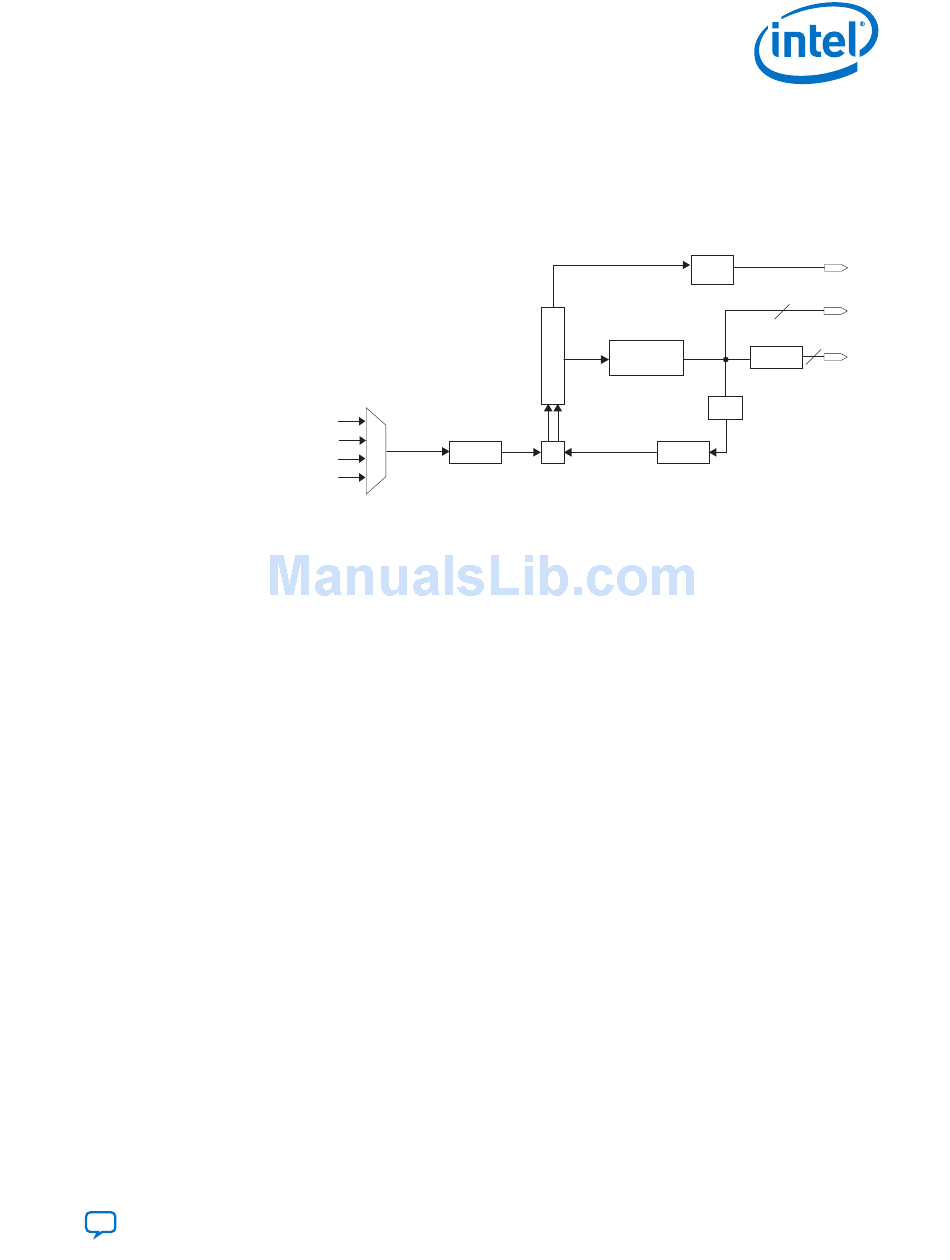

Figure 119. ATX PLL Block Diagram
Dedicated reference clock pin
Reference clock network
Global clock or core clock
Input Reference Clock
This is the dedicated input reference clock source for the PLL.
The input reference clock can be sourced from one of the following:
• Dedicated reference clock pin
• Reference clock network
• Receiver input pin
• Global clock or the core clock network
The input reference clock to the dedicated reference clock pin is a differential signal.
Intel recommends using the dedicated reference clock pin as the input reference clock
source for the best jitter performance. The input reference clock must be stable and
free-running at device power-up for proper PLL operation and PLL calibration. If the
reference clock is not available at device power-up, then you must recalibrate the PLL
when the reference clock is available.
Note: The ATX PLL calibration is clocked by the CLKUSR clock which must be stable and
available for calibration to proceed. Refer to the Calibration section for more details
about the CLKUSR clock.
Reference Clock Multiplexer
The reference clock
the various reference clock sources available.
N Counter
The N counter divides the
2, 4, and 8.
Send Feedback
Refclk
Multiplexer
Input reference
clock
Receiver input pin
) multiplexer selects the reference clock to the PLL from
(refclk
refclk
CP &
VCO
LF
Up Down
refclk
fbclk
N Counter PFD
mux's output. The division factors supported are 1,
®
Intel Cyclone
Lock
pll_locked
Detector
2
2
L Counter
/2
M Counter M Counter
®
10 GX Transceiver PHY User Guide
