2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24
Table 83. 1G/10G Data Rates and Transceiver Configuration Rules
Data Rate
1G
10G
1G/10G

2.6.1. Gigabit Ethernet (GbE) and GbE with IEEE 1588v2

Gigabit Ethernet (GbE) is a high-speed local area network technology that provides
data transfer rates of about 1 Gbps. GbE builds on top of the ethernet protocol, but
increases speed tenfold over Fast Ethernet. IEEE 802.3 defines GbE as an intermediate
(or transition) layer that interfaces various physical media with the media access
control (MAC) in a Gigabit Ethernet system. Gigabit Ethernet PHY shields the MAC
layer from the specific nature of the underlying medium and is divided into three sub-
layers shown in the following figure.

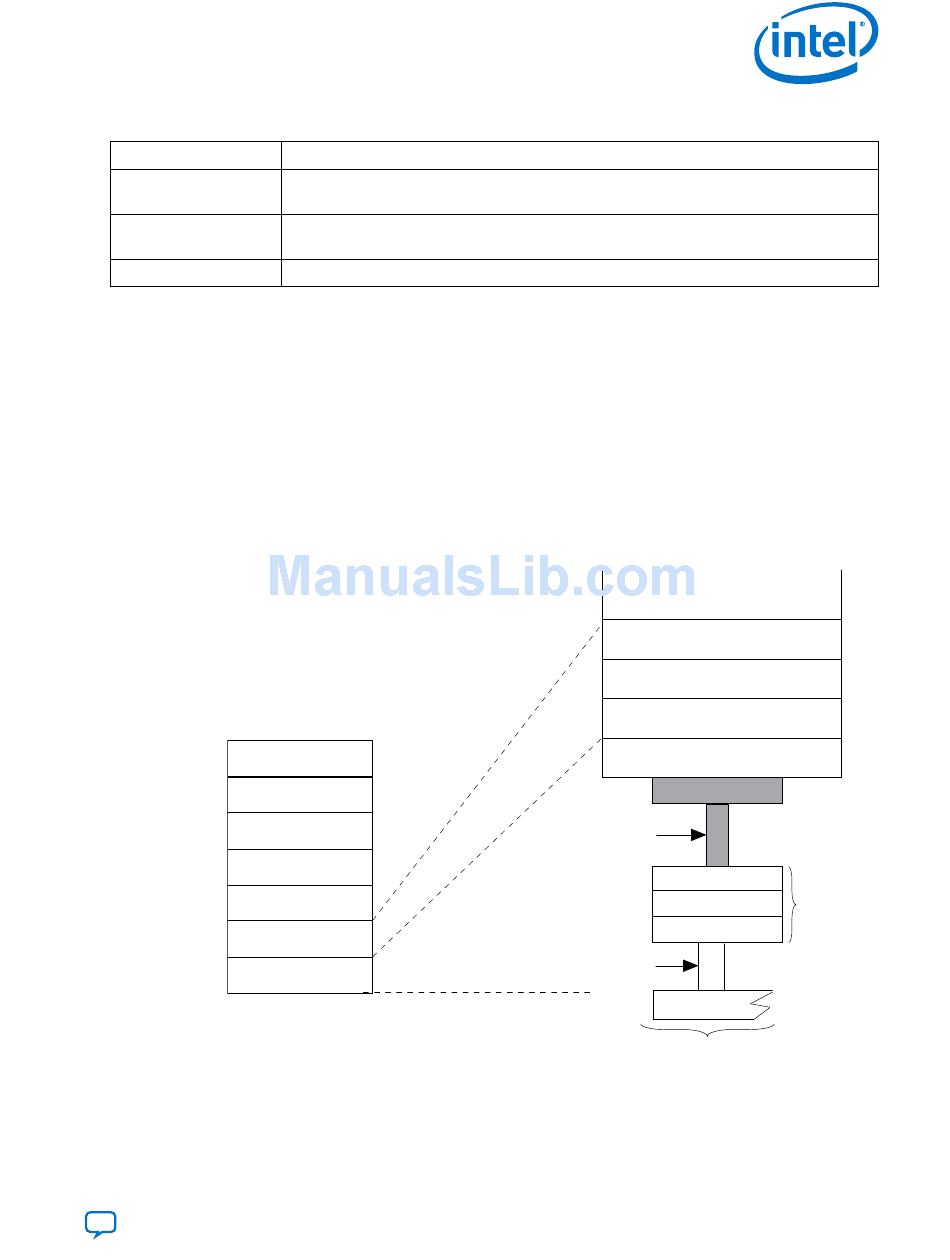

Figure 31. GbE PHY Connection to IEEE 802.3 MAC and RS
Application
Presentation
Send Feedback
• Gigabit Ethernet
• Gigabit Ethernet 1588
• 10GBASE-R
• 10GBASE-R 1588
1G/10G Ethernet PHY IP
OSI
Reference
Model
Layers
Session
Transport
Network
Data Link
Physical
Transceiver Configuration Rule/IP
GMII
MDI
®
Intel Cyclone
LAN
CSMA/CD
LAYERS
Higher Layers
LLC (Logical Link Control)
or other MAC Client
MAC Control (Optional)
Media Access Control (MAC)
Reconciliation
RECONCILIATION
PCS
PHY
PMA
Sublayers
PMD
Medium
1 Gbps
®
10 GX Transceiver PHY User Guide
