Transmitter Datapath - Intel Cyclone 10 GX User Manual

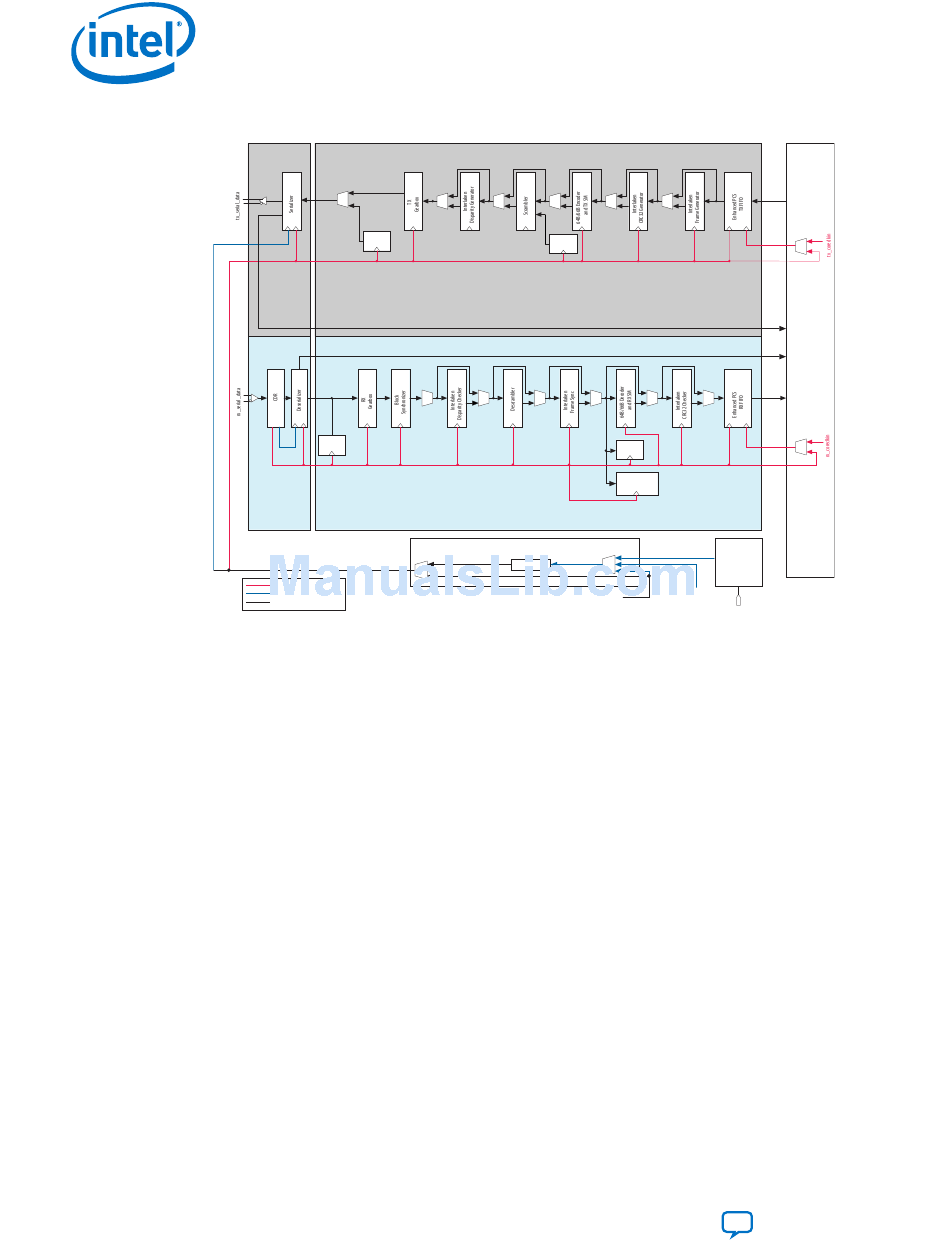

Figure 180. Enhanced PCS Datapath Diagram
Related Information
Implementing Protocols in Intel Cyclone 10 GX Transceivers

5.2.1. Transmitter Datapath

5.2.1.1. Enhanced PCS TX FIFO
The Enhanced PCS TX FIFO provides an interface between the transmitter channel PCS
and the FPGA fabric. The TX FIFO can operate for phase compensation between the
channel PCS and FPGA fabric. You can also use the TX FIFO as an elastic buffer to
control the input data flow, using
channel bonding. The TX FIFO has a width of 73 bits and a depth of 16 words.
You can set the TX FIFO partially full and empty thresholds through the Transceiver
and PLL Address Map. Refer to the Reconfiguration Interface and Dynamic
Reconfiguration chapter for more details.
The TX FIFO supports the following operating modes:
• Phase Compensation mode
• Register mode
• Interlaken mode
• Basic mode
Related Information
Reconfiguration Interface and Dynamic Reconfiguration
® ®
Intel Cyclone 10 GX Transceiver PHY User Guide
