2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24

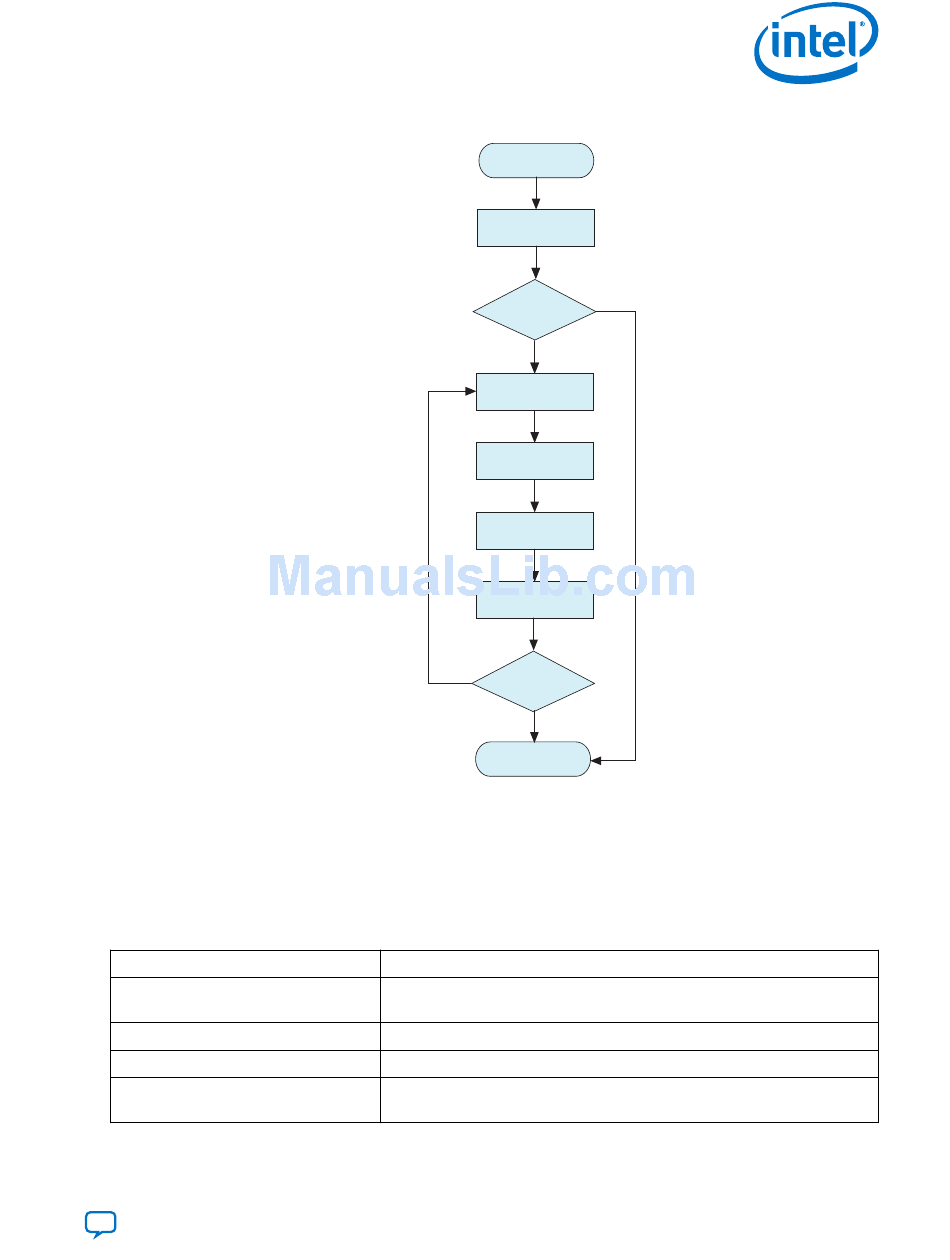

Figure 116. Using NativeLink with Third-Party Simulators
Complete the following steps to specify the directory path and testbench settings for
your simulator:
1. On the Tools menu, click Options, and then click EDA Tool Options.
2. Browse to the directory for your simulator. The following table lists the directories
for supported third-party simulators:
Table 153. Simulator Path
Simulator
Mentor Graphics ModelSim
Mentor Graphics QuestaSim
Synopsys VCS/VCS MX
Cadence Incisive Enterprise
Aldec Active-HDL
Aldec Riviera-Pro
3. On Assignments menu, click Settings.
Send Feedback
Specify EDA Simulator &
Simulator Directory
Perform
Functional Simulation
Does Does
Simulation Give Simulation Give
Expected Results? Expected Results?
No
Debug Design &
Make RTL Changes
Run Quartus Prime
Analysis and Elaboration
Start Simulator, Compile
Design and Testbench
Load Design &
Run Simulation
Does
No
Simulation Give
Expected Results?
Yes
Simulation Complete
<drive>:\<simulator install path>\win32 (Windows)
/<simulator install path>/bin (Linux)
/<simulator install path>/bin (Linux)
/<simulator install path>/tools/bin (Linux)
<drive>:\<simulator install path>\bin (Windows)
/<simulator install path>/bin (Linux)
Yes
Path
® ®
Intel Cyclone 10 GX Transceiver PHY User Guide
191
