hidden line A dashed line representing an edge or surface that cannot be seen in a view.

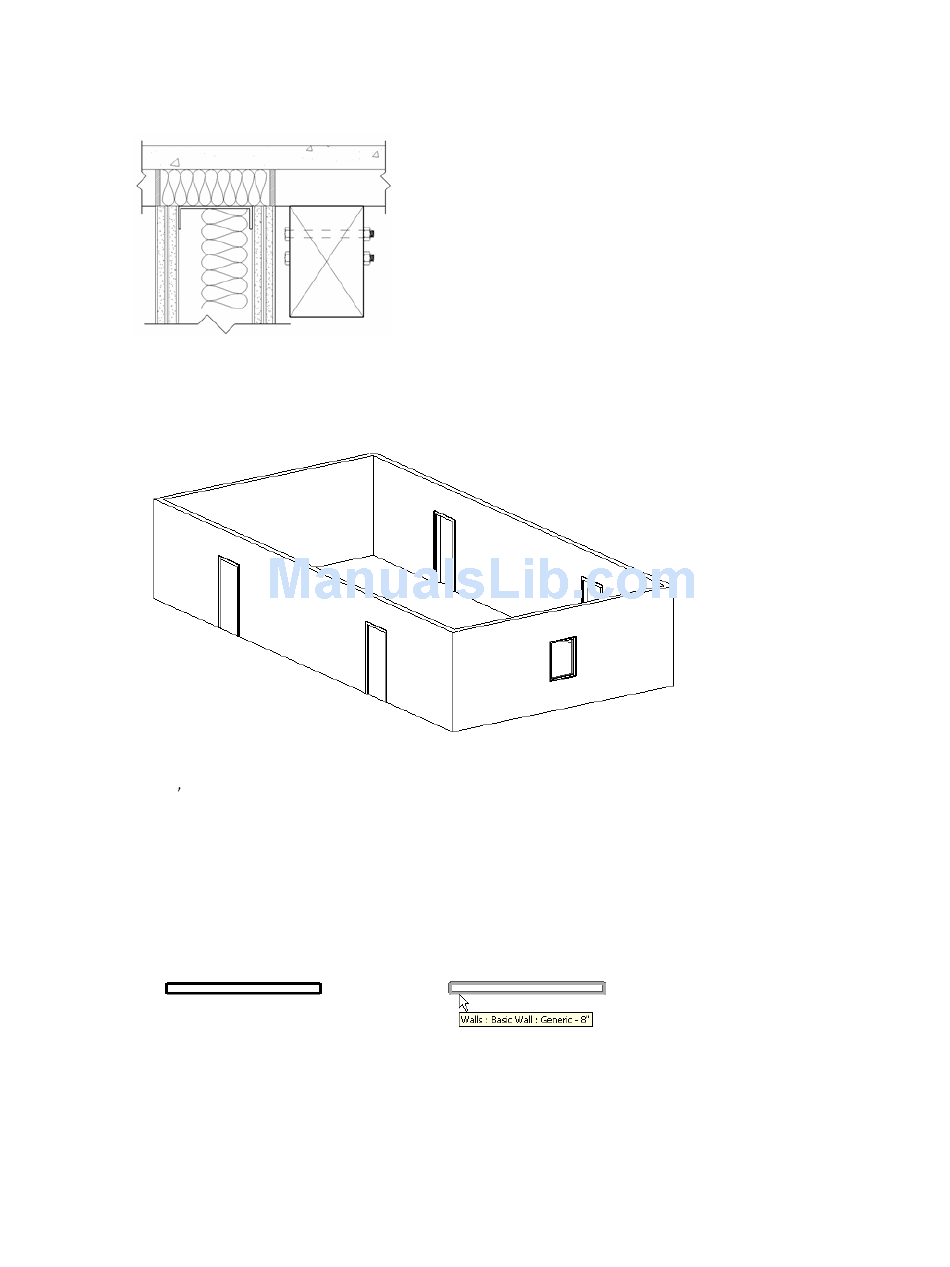

For example, in the following image, 2 bolts go through the stud. The view shows the hidden lines of one
bolt but does not show the hidden lines of the second bolt.
See also hidden line mode
hidden line mode A model graphics style in which Revit Architecture hides the lines of elements that are
obscured by other surfaces. (Compare with
See Hidden Line Model Graphics Style
highlight To move the cursor over an object in the drawing area so that Revit Architecture displays the
object s outline in a different weight (bold) and color (such as gray instead of black). A description of the
element displays on the status bar at the bottom of the Revit window. After a brief delay, the element
description also displays in a tooltip near the cursor.
This highlighting indicates that the object is ready for selection. Click to select the highlighted object.
See Selecting Elements on page 269.
Wall before and after highlighting
host A model element that can accept (host) other components. For example, a wall is a host for windows
and doors. A roof is a host for skylights and dormers. A host may also be referred to as a host element or a
host component.
on page 1407. For more information, see
wireframe
on page 202.
Show Hidden Lines
on page 1470.)
on page 1095.
Glossary | 1511
