CRC functional description

14.3.1

CRC block diagram

crc_hclk
14.3.2

CRC internal signals

Signal name
14.3.3

CRC operation

The CRC calculation unit has a single 32-bit read/write data register (CRC_DR). It is used to
input new data (write access), and holds the result of the previous CRC calculation (read
access).
Each write operation to the data register creates a combination of the previous CRC value
(stored in CRC_DR) and the new one. CRC computation is done on the whole 32-bit data
word or byte by byte depending on the format of the data being written.
The CRC_DR register can be accessed by word, right-aligned half-word and right-aligned
byte. For the other registers only 32-bit access is allowed.
The duration of the computation depends on data width:
• 4 AHB clock cycles for 32-bit
•
2 AHB clock cycles for 16-bit
•
1 AHB clock cycles for 8-bit
An input buffer allows a second data to be immediately written without waiting for any wait
states due to the previous CRC calculation.
The data size can be dynamically adjusted to minimize the number of write accesses for a
given number of bytes. For instance, a CRC for 5 bytes can be computed with a word write
followed by a byte write.

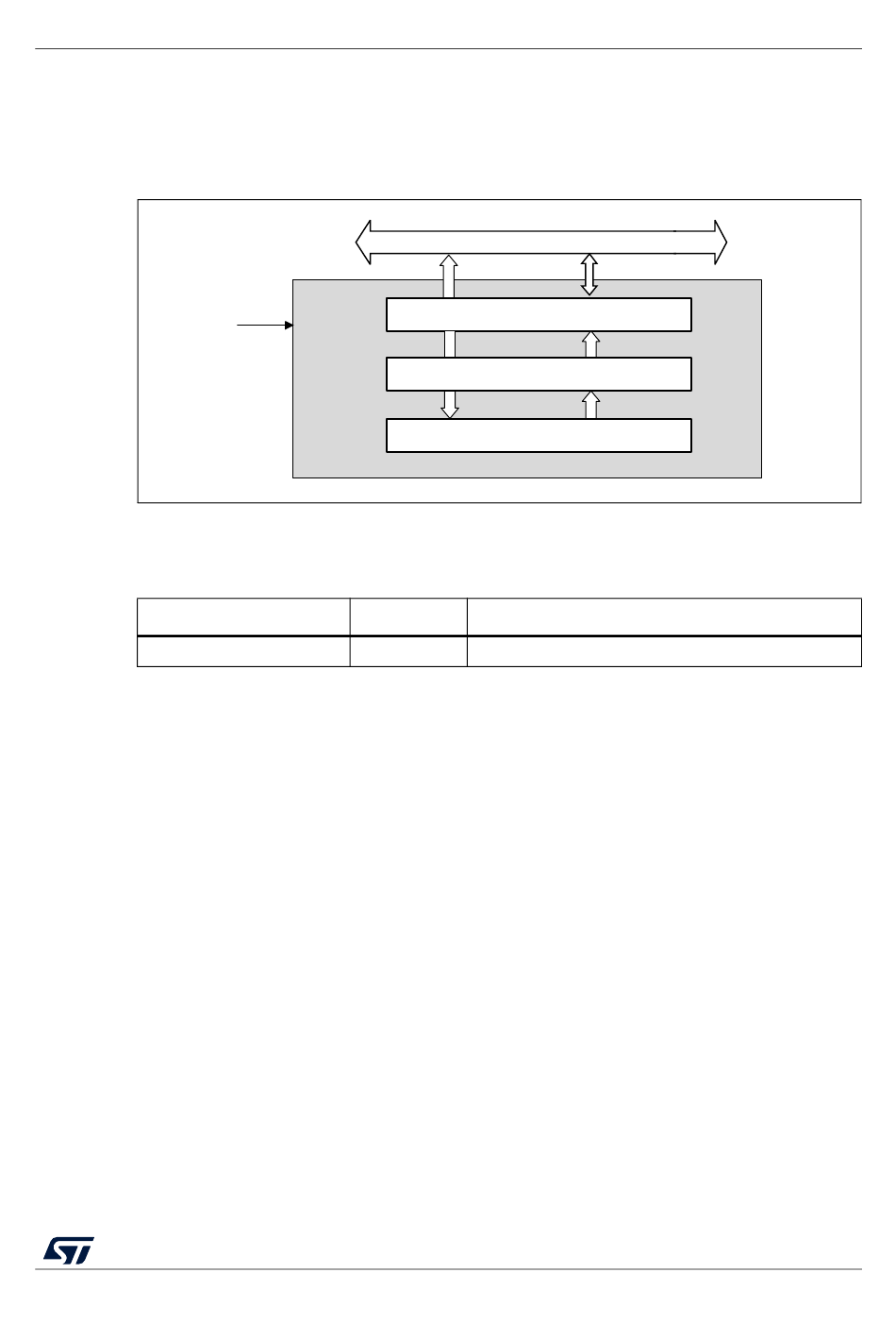

Figure 30. CRC calculation unit block diagram

32-bit (write access)

Table 66. CRC internal input/output signals

Signal type
crc_hclk Digital input
Cyclic redundancy check calculation unit (CRC)
32-bit AHB bus
Data register (output)
CRC computation
Data register (input)
AHB clock
