STM32WBxx Packet Error
Rate measurement with
STM32CubeMonitor-RF
MCD Support Solution Team
Marc LAURY
12th May 2020 – V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the STM32WB Series and is the answer not in the manual?

Questions and answers

Related Manuals for ST STM32WB Series

Summary of Contents for ST STM32WB Series

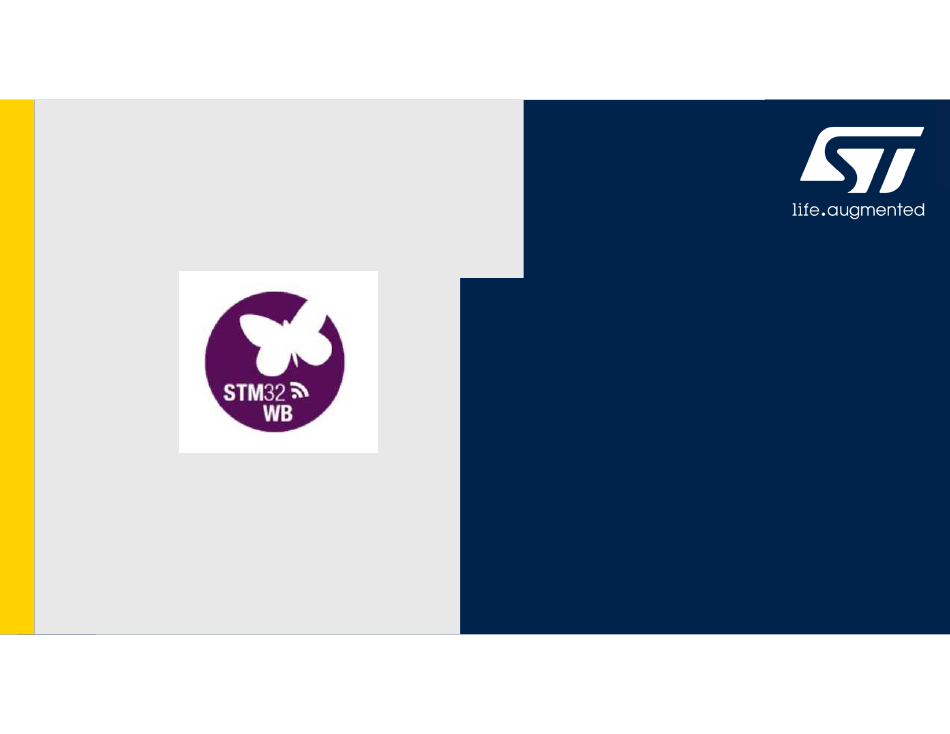

  • Page 1 STM32WBxx Packet Error Rate measurement with STM32CubeMonitor-RF MCD Support Solution Team Marc LAURY 12th May 2020 – V1.0...
  • Page 2 Agenda Introduction STM32CubeMonitor-RF setup PER/RSSI test...
  • Page 3 Introduction • This document present the procedure to measure the Packet Error Rate and the RSSI between two boards using STM32CubeMonitor-RF. • The demonstration below uses the Nucleo Board MB1355C and the USB Dongle MB1293C include in the STM32WB55 Nucleo Pack. •...
  • Page 4 STM32CubeMonitor-RF setup...
  • Page 5 STM32CubeMonitor-RF • Open STM32CubeMonitor-RF and click on BLE.
  • Page 6 Connection with the MB1355C • Connect the Nucleo Board MB1355C to the PC with a USB cable. Select the COM port of your MB1355C (maybe it is not COM60) and click on connect.
  • Page 7 Connection succeeded with the MB1355C • The connection with the MB1355C is established if you see the ACI commands list and messages.
  • Page 8 RF Tests panel • Then, click on RF Tests panel and select Packet error test (PER) Then SELECT TEST MODE.
  • Page 9 Connection with the MB1293C • Connect the USB Dongle MB1293C to the PC. Select the COM port of your MB1293C (maybe it is not COM11) and click on connect.
  • Page 10 PER/RSSI test...

  • Page 11: Test Configuration

    Test configuration • Click on CONFIGURE TESTER.
  • Page 12 TX configuration • Configure the TX Board (in the example, it is the USB Dongle MB1293C) which is always the second device selected. Then click on CONFIGURE DUT.
  • Page 13 RX configuration • Configure the RX Board (in the example, it is the Nucleo Board MB1355C) with the same parameters as the TX Board. Then click on CONFIGURE PARAM.

  • Page 14: Additional Settings

    Additional settings • The channels to test the PER, if the RSSI is needed and if the results can be store in a file for post analysis . Then click on START TEST.
  • Page 15 Additional settings • The channels to test the PER, if the RSSI is needed and if the results can be store in a file for post analysis . Then click on START TEST.

  • Page 16: Test Results

    Test results • The test results are displayed. One click on this icon shows the test results in a graph (next slide).
  • Page 17 Graph results • Graph results.
  • Page 18 Thank you © STMicroelectronics - All rights reserved. The STMicroelectronics corporate logo is a registered trademark of the STMicroelectronics group of companies. All other names are the property of their respective owners.
