Input Capture Mode; Figure 232. Capture/Compare Channel 1 Main Circuit; Figure 233. Output Stage Of Capture/Compare Channel (Channel 1) - ST STM32G0 1 Series Reference Manual

General-purpose timers (TIM14)
Input mode
CC1S[1]
CC1S[0]
IC1PS
CC1E
CC1G
TIMx_EGR
CNT > CCR1
CNT = CCR1
1. Available on TIM12 only.
The capture/compare block is made of one preload register and one shadow register. Write
and read always access the preload register.
In capture mode, captures are actually done in the shadow register, which is copied into the
preload register.
In compare mode, the content of the preload register is copied into the shadow register
which is compared to the counter.
24.3.5

Input capture mode

In Input capture mode, the Capture/Compare Registers (TIMx_CCRx) are used to latch the
value of the counter after a transition detected by the corresponding ICx signal. When a
capture occurs, the corresponding CCXIF flag (TIMx_SR register) is set and an interrupt or
a DMA request can be sent if they are enabled. If a capture occurs while the CCxIF flag was
already high, then the over-capture flag CCxOF (TIMx_SR register) is set. CCxIF can be
724/1390

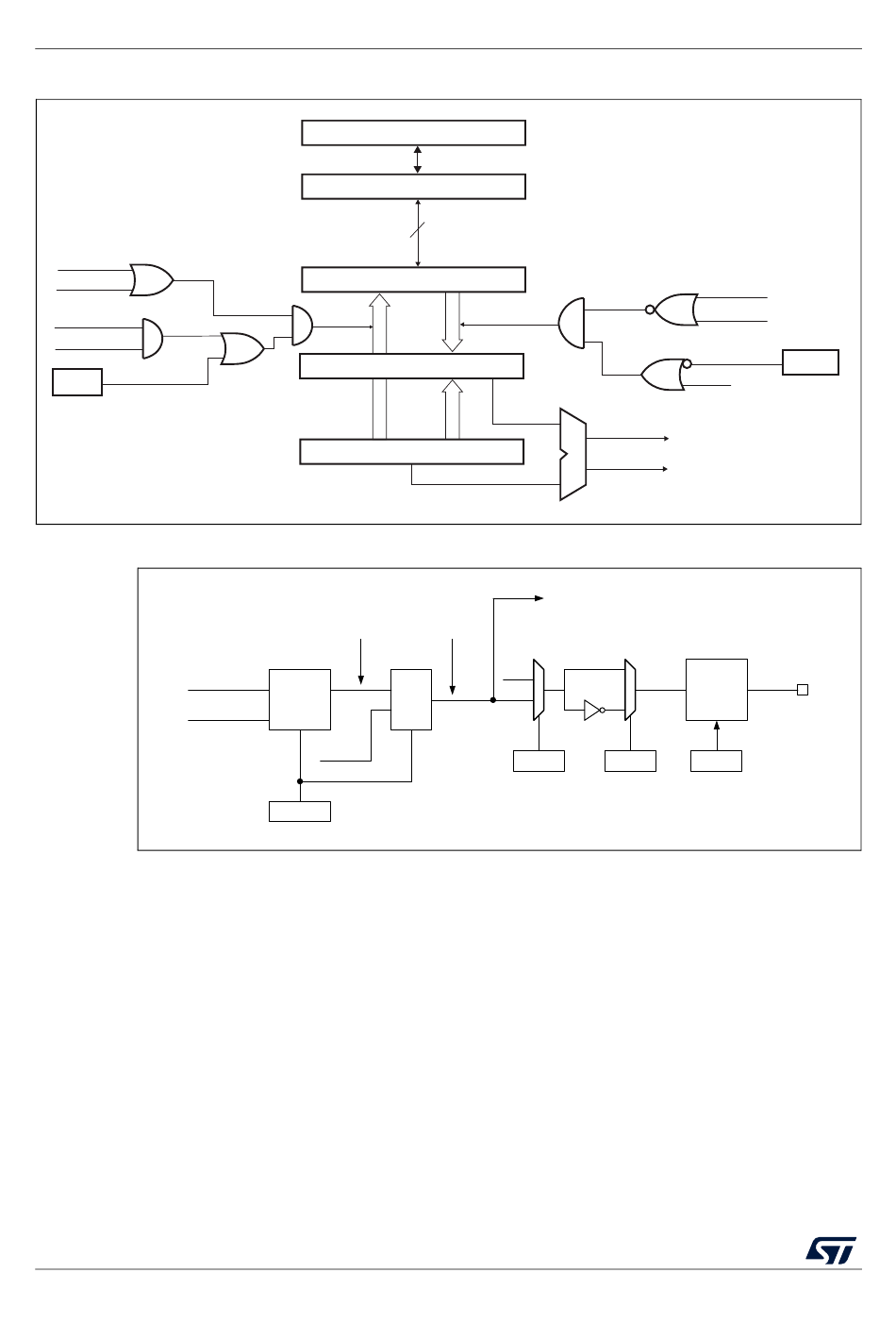

Figure 232. Capture/compare channel 1 main circuit
