Direct memory access controller (DMA)
13.4 DMA functional description
13.4.1 DMA block diagram
The DMA block diagram is shown in
dma1_req [1..7]
dma1_ack [1..7]
dma1_secm [1..7]
dma1_priv[1..7]
dma2_req [1..7]
dma2_ack [1..7]
dma2_secm [1..7]
dma2_priv[1..7]
456/1450
Figure 49.

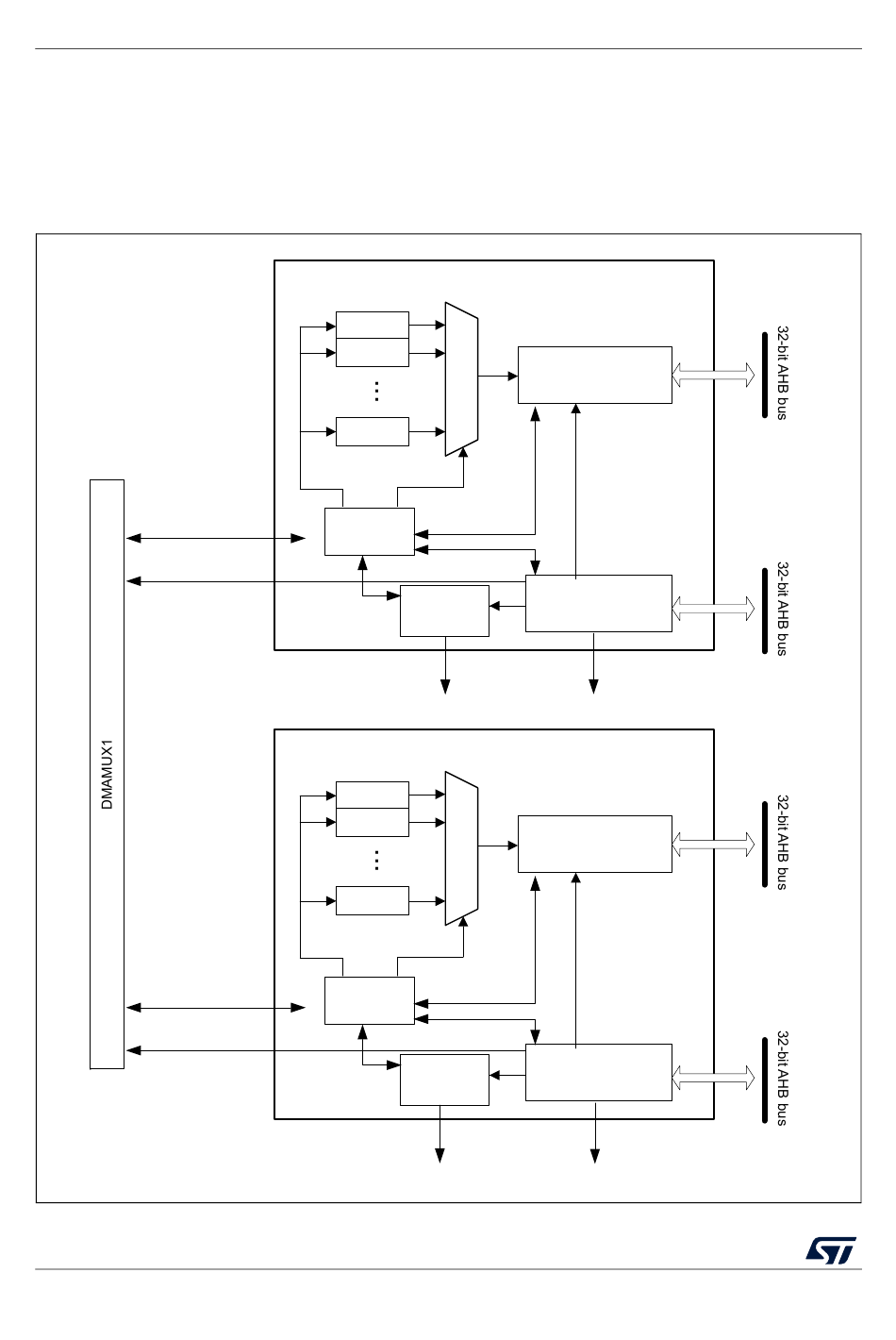

Figure 49. DMA block diagram

DMA1
Ch 1
Ch 2
Ch 7
Arbiter
Interrupt
interface
dma1_it[1..7]
DMA2
Ch 1
Ch 2
Ch 7
Arbiter
Interrupt
interface
dma2_it[1..7]
RM0453 Rev 5
AHB master interface
AHB slave interface
dma1_ilac
AHB master interface
AHB slave interface
dma2_ilac
