Analog-to-digital converter (ADC)

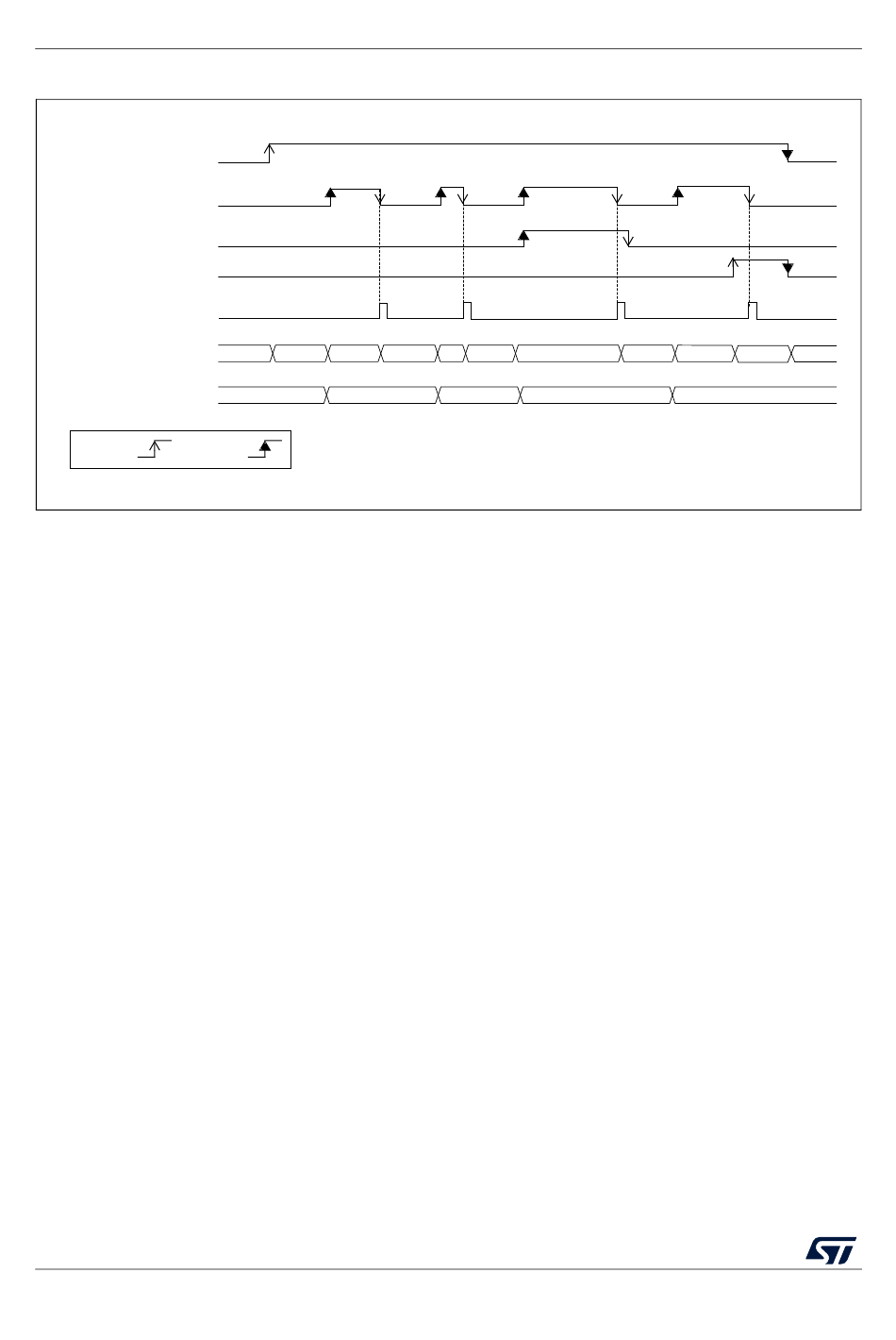

Figure 73. Wait mode conversion (continuous mode, software trigger)

ADSTART
EOC
EOS
ADSTP
ADC_DR Read access
ADC state
ADC_DR
by H/W
by S/W
1. EXTEN = 00, CONT = 1
2. CHSEL = 0x3, SCANDIR = 0, WAIT = 1, AUTOFF = 0
18.6.2 Auto-off mode (AUTOFF)
The ADC has an automatic power management feature which is called auto-off mode, and
is enabled by setting AUTOFF = 1 in the ADC_CFGR1 register.
When AUTOFF = 1, the ADC is always powered off when not converting and automatically
wakes-up when a conversion is started (by software or hardware trigger). A startup-time is
automatically inserted between the trigger event which starts the conversion and the
sampling time of the ADC. The ADC is then automatically disabled once the sequence of
conversions is complete.
Auto-off mode can cause a dramatic reduction in the power consumption of applications
which need relatively few conversions or when conversion requests are timed far enough
apart (for example with a low frequency hardware trigger) to justify the extra power and
extra time used for switching the ADC on and off.
Auto-off mode can be combined with the wait mode conversion (WAIT = 1) for applications
clocked at low frequency. This combination can provide significant power savings if the ADC
is automatically powered-off during the wait phase and restarted as soon as the ADC_DR
register is read by the application (see
Note: Refer to the Section Reset and clock control (RCC) for the description of how to manage
the dedicated 14 MHz internal oscillator. The ADC interface can automatically switch
ON/OFF the 14 MHz internal oscillator to save power.
556/1450
RDY CH1 DLY CH2
D1
RM0453 Rev 5
DLY CH3 DLY
D2 D3
Figure 75: Behavior with WAIT = 1, AUTOFF =
RM0453
CH1 DLY STOP RDY
D1
MSv30344V2
1).
