Dac Conversion; Figure 56. Data Registers In Dual Dac Channel Mode; Figure 57. Timing Diagram For Conversion With Trigger Disabled Ten = 0 - ST STM32F40 Series Reference Manual

Digital-to-analog converter (DAC)
●
Dual DAC channels, there are three possibilities:
–
–
–
Depending on the loaded DAC_DHRyyyD register, the data written by the user is shifted and
stored into DHR1 and DHR2 (data holding registers, which are internal non-memory-
mapped registers). The DHR1 and DHR2 registers are then loaded into the DOR1 and
DOR2 registers, respectively, either automatically, by software trigger or by an external
event trigger.

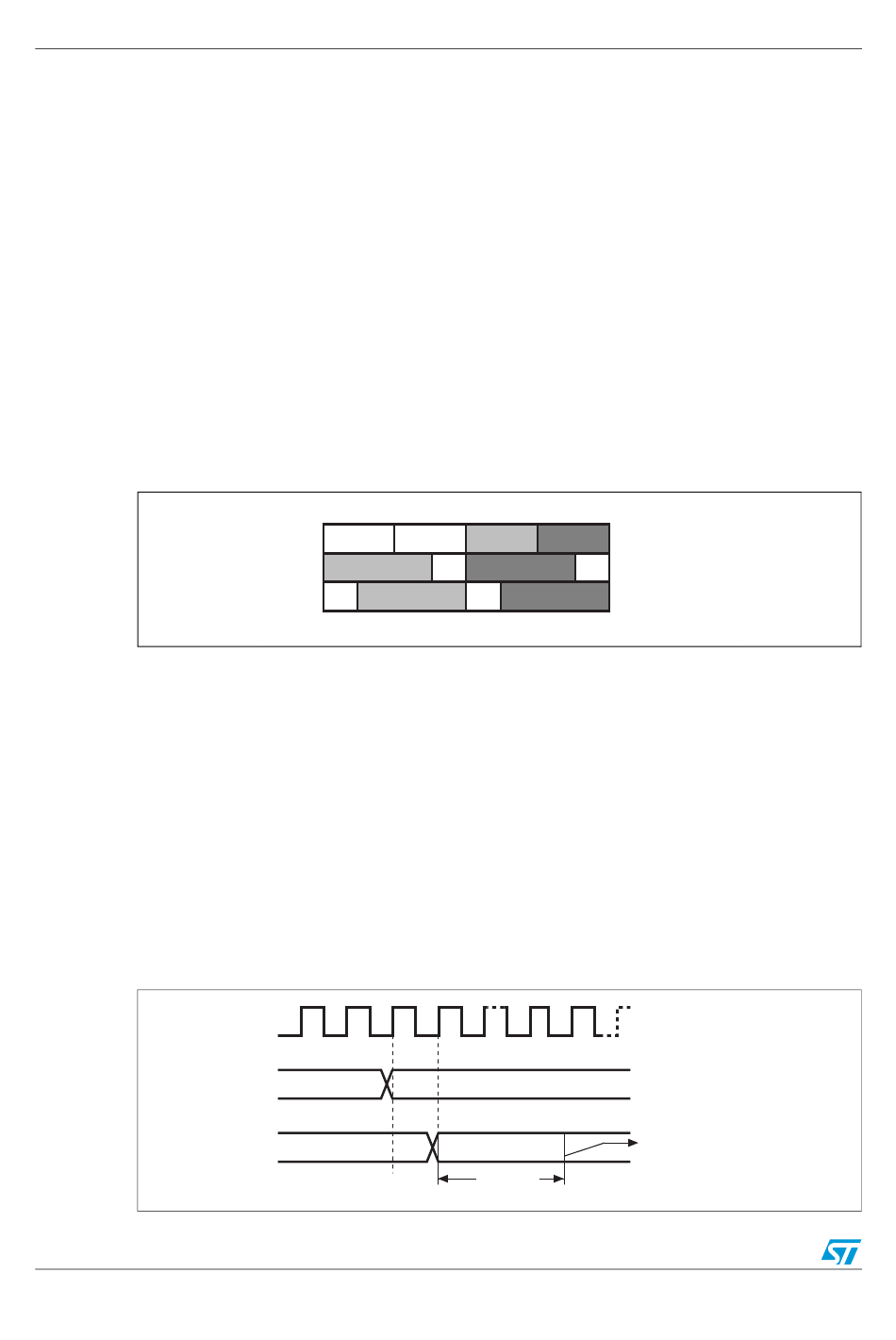

Figure 56. Data registers in dual DAC channel mode

12.3.4

DAC conversion

The DAC_DORx cannot be written directly and any data transfer to the DAC channelx must
be performed by loading the DAC_DHRx register (write to DAC_DHR8Rx, DAC_DHR12Lx,
DAC_DHR12Rx, DAC_DHR8RD, DAC_DHR12LD or DAC_DHR12LD).
Data stored in the DAC_DHRx register are automatically transferred to the DAC_DORx
register after one APB1 clock cycle, if no hardware trigger is selected (TENx bit in DAC_CR
register is reset). However, when a hardware trigger is selected (TENx bit in DAC_CR
register is set) and a trigger occurs, the transfer is performed three APB1 clock cycles later.
When DAC_DORx is loaded with the DAC_DHRx contents, the analog output voltage
becomes available after a time t
analog output load.

Figure 57. Timing diagram for conversion with trigger disabled TEN = 0

APB1_CLK
313/1422
8-bit right alignment: data for DAC channel1 to be loaded into the DAC_DHR8RD
[7:0] bits (stored into the DHR1[11:4] bits) and data for DAC channel2 to be loaded
into the DAC_DHR8RD [15:8] bits (stored into the DHR2[11:4] bits)
12-bit left alignment: data for DAC channel1 to be loaded into the DAC_DHR12LD
[15:4] bits (stored into the DHR1[11:0] bits) and data for DAC channel2 to be
loaded into the DAC_DHR12LD [31:20] bits (stored into the DHR2[11:0] bits)
12-bit right alignment: data for DAC channel1 to be loaded into the
DAC_DHR12RD [11:0] bits (stored into the DHR1[11:0] bits) and data for DAC
channel2 to be loaded into the DAC_DHR12LD [27:16] bits (stored into the
DHR2[11:0] bits)
31
DHR
DOR
Doc ID 018909 Rev 4
24 15 7
that depends on the power supply voltage and the
SETTLING
0x1AC
0x1AC
t
SETTLING
0
8-bit right aligned
12-bit left aligned
12-bit right aligned
ai14709
Output voltage
available on DAC_OUT pin
ai14711b
RM0090
