RM0453
19.4.4
DAC data format
Depending on the selected configuration mode, the data have to be written into the specified
register as described below:
•
Single DAC channel
There are three possibilities:
–
–
–
Depending on the loaded DAC_DHRyyyx register, the data written by the user is shifted and
stored into the corresponding DHR1 (data holding registerx, which are internal non-
memory-mapped registers). The DHR1 register is then loaded into the DOR1 register either
automatically, by software trigger or by an external event trigger.
19.4.5
DAC conversion
The DAC_DOR1 cannot be written directly and any data transfer to the DAC channel1 must
be performed by loading the DAC_DHR1 register (write operation to DAC_DHR8R1,
DAC_DHR12L1, DAC_DHR12R1, DAC_DHR8RD, DAC_DHR12RD or DAC_DHR12LD).
Data stored in the DAC_DHR1 register are automatically transferred to the DAC_DOR1
register after one dac_pclk clock cycle, if no hardware trigger is selected (TEN1 bit in
DAC_CR register is reset). However, when a hardware trigger is selected (TEN1 bit in
DAC_CR register is set) and a trigger occurs, the transfer is performed three dac_pclk clock
cycles after the trigger signal.
When DAC_DOR1 is loaded with the DAC_DHR1 contents, the analog output voltage
becomes available after a time t
analog output load.
8-bit right alignment: the software has to load data into the DAC_DHR8R1[7:0] bits
(stored into the DHR1[11:4] bits)
12-bit left alignment: the software has to load data into the DAC_DHR12L1 [15:4]
bits (stored into the DHR1[11:0] bits)
12-bit right alignment: the software has to load data into the DAC_DHR12R1 [11:0]
bits (stored into the DHR1[11:0] bits)

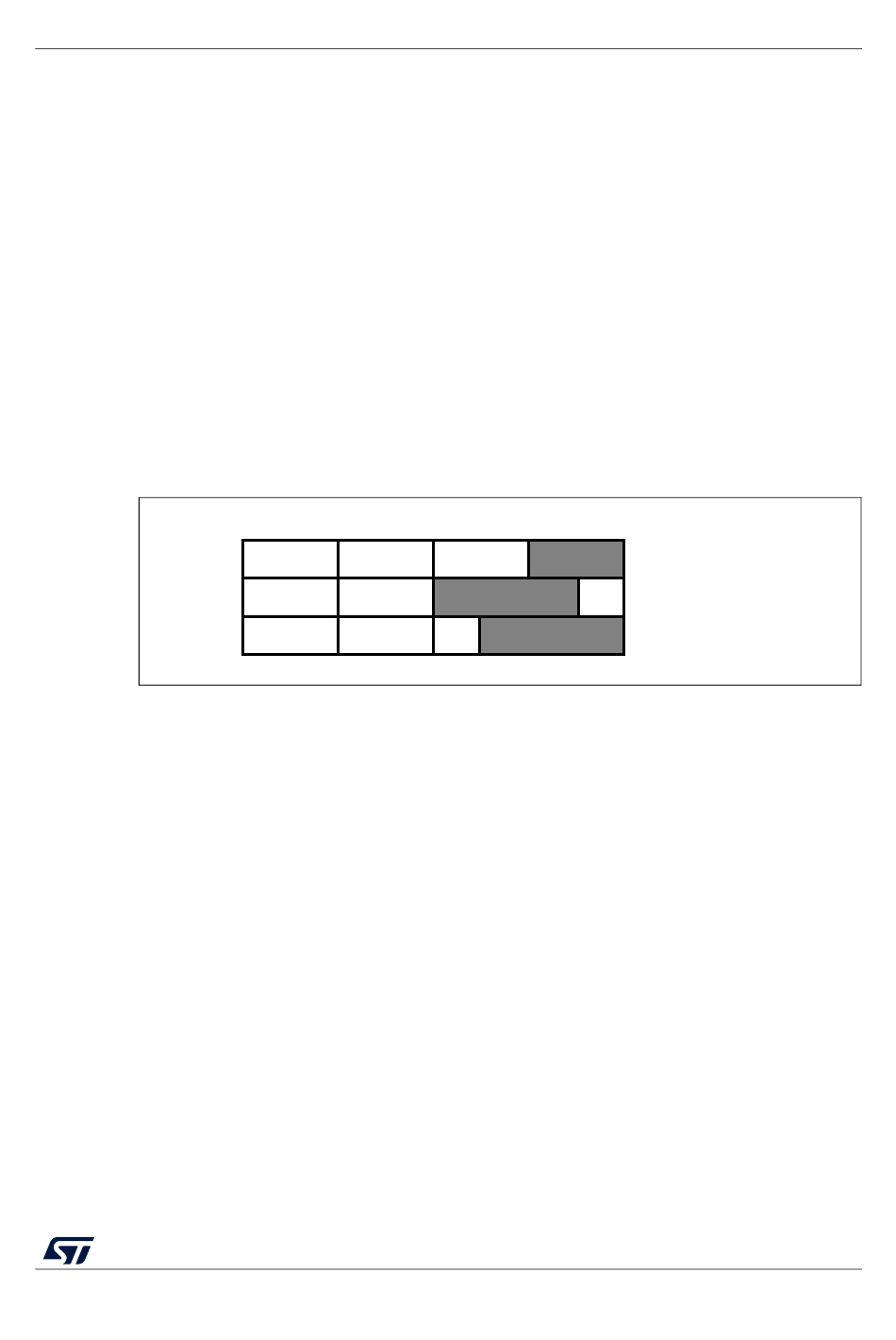

Figure 87. Data registers in single DAC channel mode
31
24
15
7
that depends on the power supply voltage and the
SETTLING
RM0453 Rev 1
Digital-to-analog converter (DAC)
0
8-bit right aligned
12-bit left aligned
12-bit right aligned
ai14710b
597/1461
618
