Ethernet (ETH): media access control (MAC) with DMA controller

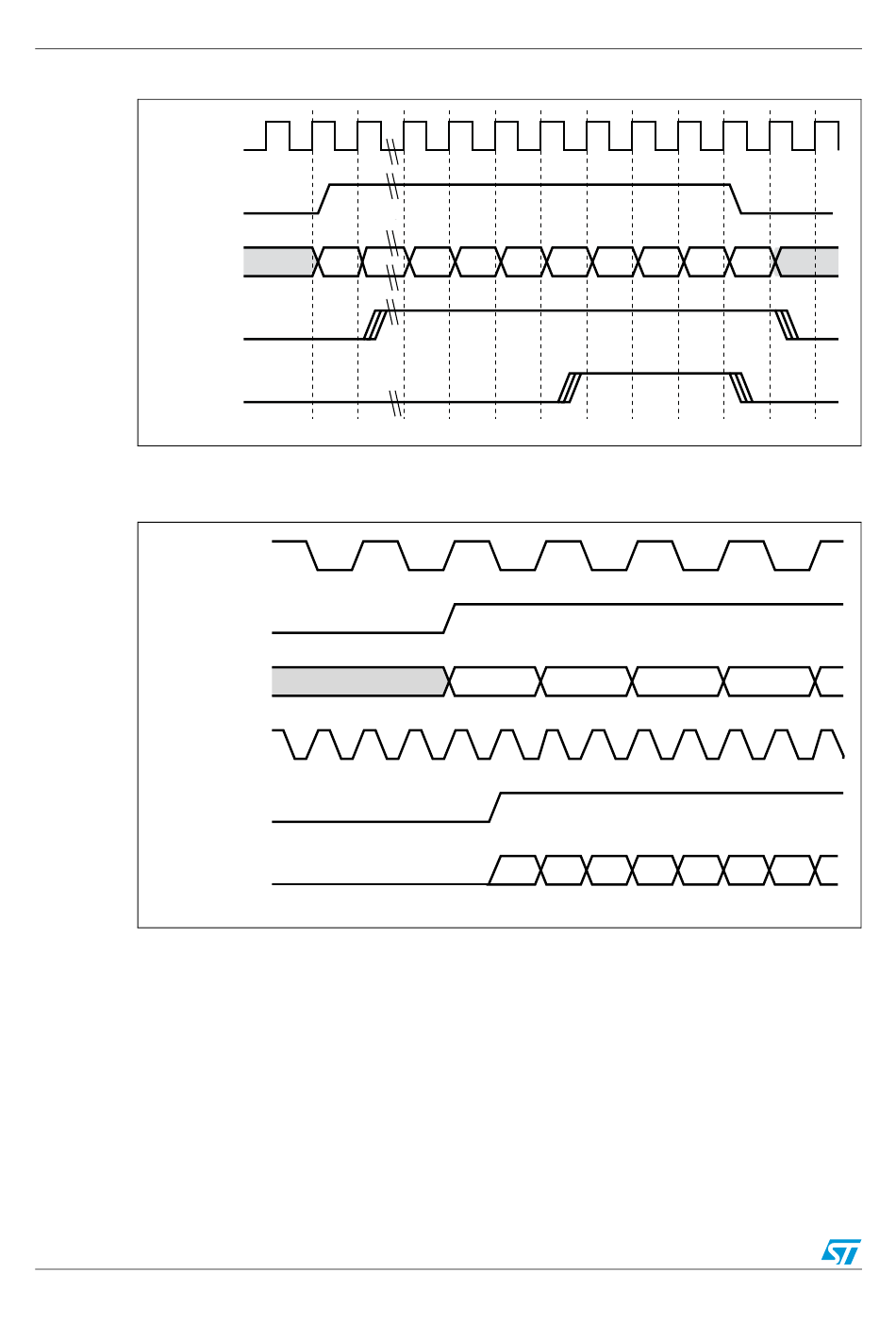

Figure 335. Transmission with collision

MII_TX_CLK
MII_TX_EN
MII_TXD[3:0]
MII_CS
MII_COL
Figure 336

Figure 336. Frame transmission in MMI and RMII modes

MII_RX_CLK
MII_TX_EN
MII_TXD[3:0]
RMII_REF_CLK
RMII_TX_EN
RMII_TXD[1:0]
29.5.3

MAC frame reception

The MAC received frames are pushes into the Rx FIFO. The status (fill level) of this FIFO is
indicated to the DMA once it crosses the configured receive threshold (RTC in the
ETH_DMAOMR register) so that the DMA can initiate pre-configured burst transfers towards
the AHB interface.
In the default Cut-through mode, when 64 bytes (configured with the RTC bits in the
ETH_DMAOMR register) or a full packet of data are received into the FIFO, the data are
popped out and the DMA is notified of its availability. Once the DMA has initiated the transfer
to the AHB interface, the data transfer continues from the FIFO until a complete packet has
925/1422
PR EAM
shows a frame transmission in MII and RMII.
Doc ID 018909 Rev 4
BLE SFD DA DA JAM JAM JAM JAM
RM0090
ai15651
ai15652
