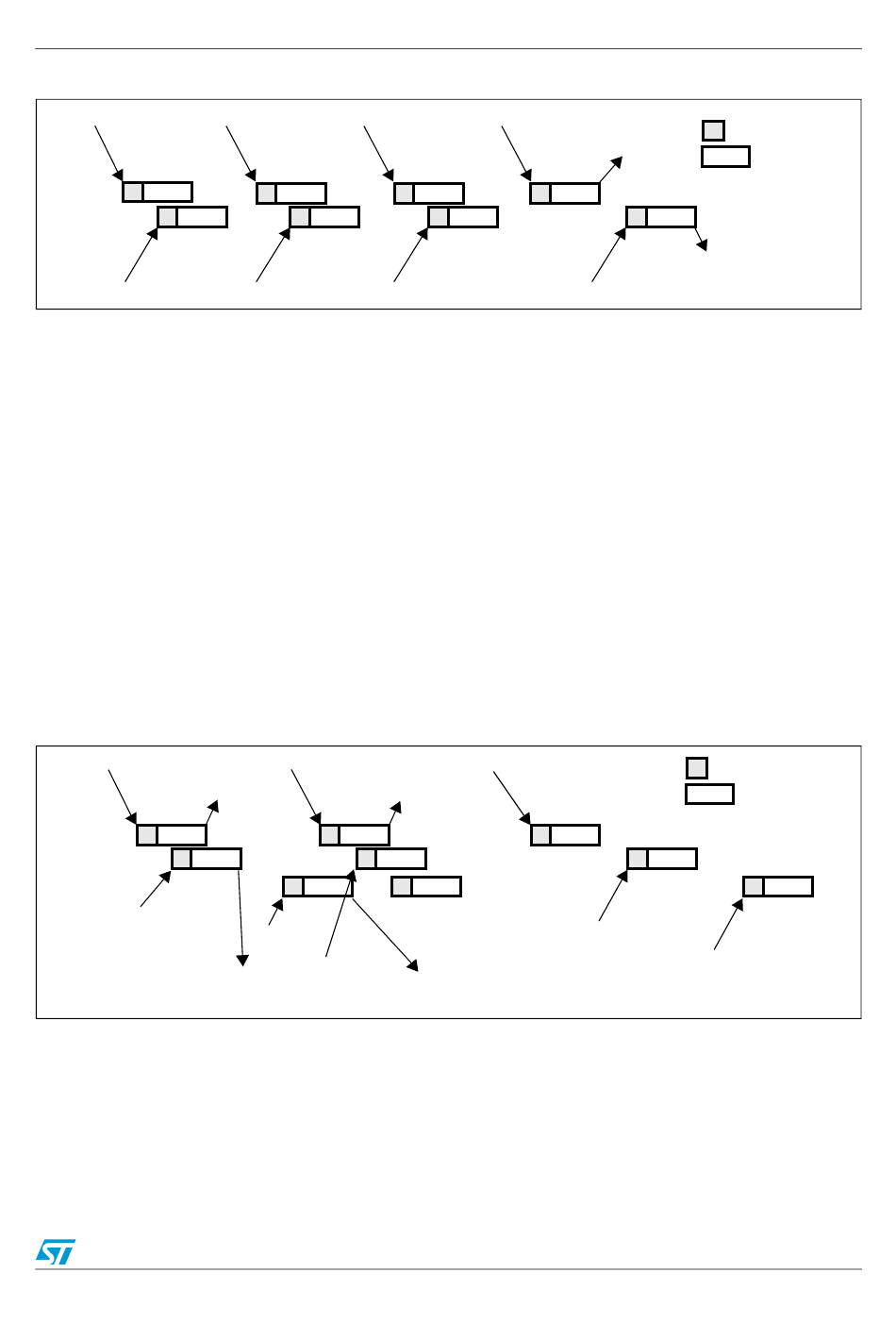

Combined Regular/Injected Simultaneous Mode; Figure 49. Alternate Trigger: 4 Injected Channels (Each Adc) In Discontinuous Mode; Figure 50. Alternate Trigger: Injected Group Of Each Adc - ST STM32F40 Series Reference Manual

Hide thumbs Also See for STM32F40 Series:

Table of Contents

Triple ADC mode

When the 1st trigger occurs, all injected ADC1 channels in the group are converted.

When the 2nd trigger occurs, all injected ADC2 channels in the group are converted.

When the 3rd trigger occurs, all injected ADC3 channels in the group are converted.

A JEOC interrupt, if enabled, is generated after all injected ADC1 channels in the group

have been converted.

A JEOC interrupt, if enabled, is generated after all injected ADC2 channels in the group

have been converted.

A JEOC interrupt, if enabled, is generated after all injected ADC3 channels in the group

have been converted.

If another external trigger occurs after all injected channels in the group have been

converted then the alternate trigger process restarts by converting the injected ADC1

channels in the group.

Combined regular/injected simultaneous mode

It is possible to interrupt the simultaneous conversion of a regular group to start the

simultaneous conversion of an injected group.

In combined regular/injected simultaneous mode, one must convert sequences with the

same length or ensure that the interval between triggers is longer than the long conversion

time of the 2 sequences (Dual ADC mode) /3 sequences (Triple ADC mode). Otherwise, the
