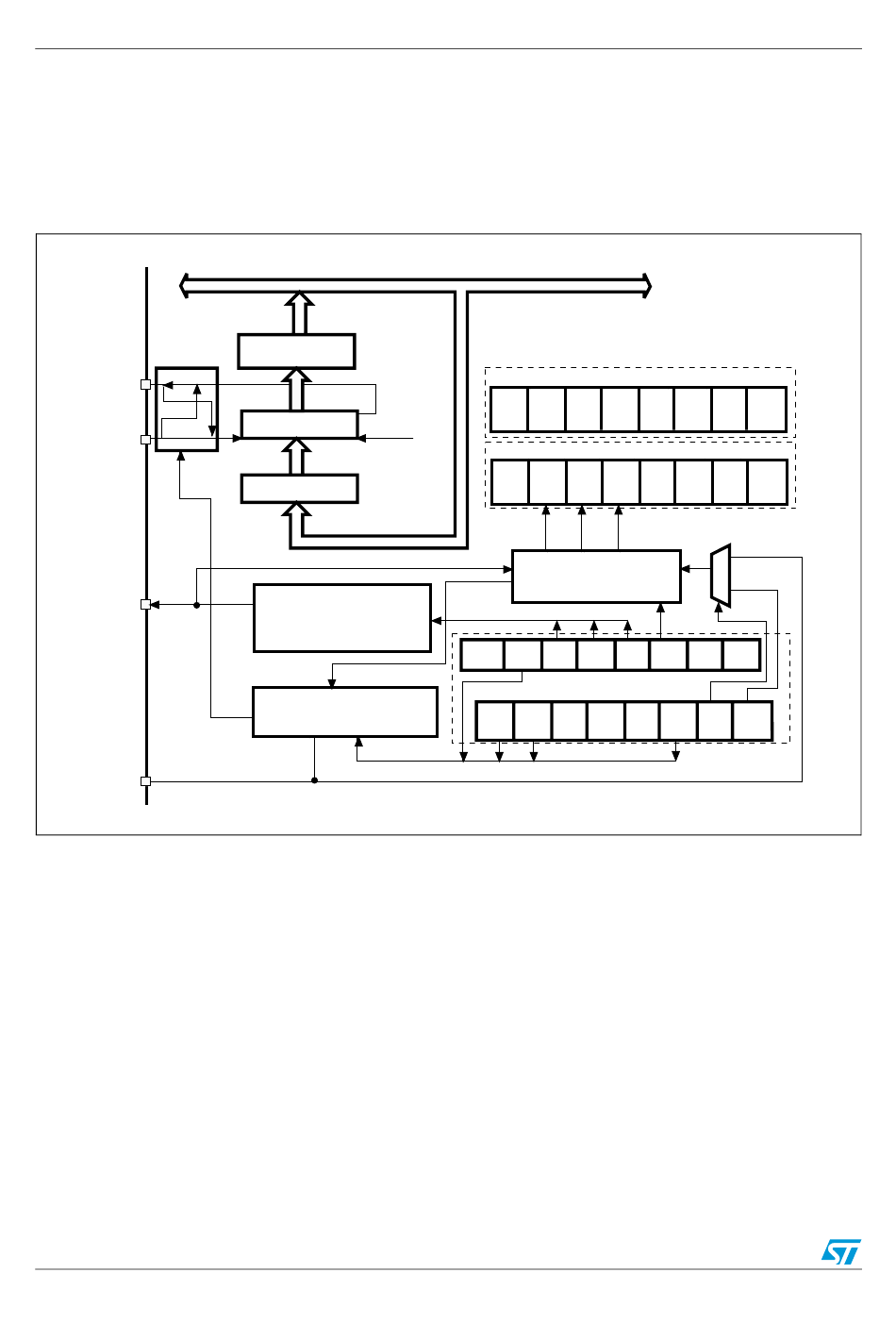

Spi Functional Description; General Description; Figure 271. Spi Block Diagram - ST STM32F40 Series Reference Manual

Hide thumbs Also See for STM32F40 Series:

Table of Contents

Serial peripheral interface (SPI)

SPI functional description

The block diagram of the SPI is shown in

Usually, the SPI is connected to external devices through 4 pins:

MISO: Master In / Slave Out data. This pin can be used to transmit data in slave mode

and receive data in master mode.

MOSI: Master Out / Slave In data. This pin can be used to transmit data in master

mode and receive data in slave mode.

SCK: Serial Clock output for SPI masters and input for SPI slaves.

NSS: Slave select. This is an optional pin to select a slave device. This pin acts as a

'chip select' to let the SPI master communicate with slaves individually and to avoid

contention on the data lines. Slave NSS inputs can be driven by standard IO ports on

the master device. The NSS pin may also be used as an output if enabled (SSOE bit)

and driven low if the SPI is in master configuration. In this manner, all NSS pins from

devices connected to the Master NSS pin see a low level and become slaves when

they are configured in NSS hardware mode. When configured in master mode with

NSS configured as an input (MSTR=1 and SSOE=0) and if NSS is pulled low, the SPI

Address and data bus

Shift register

Baud rate generator

Master control logic

Doc ID 018909 Rev 4

Communication

MSTR CPOL CPHA
