Hash processor (HASH)
register), the HASH_CSR22 to HASH_CSR37 registers do not have to be saved and
restored.
22.3.8

HASH interrupt

There are two individual maskable interrupt sources generated by the HASH processor.
They are connected to the same interrupt vector.
You can enable or disable the interrupt sources individually by changing the mask bits in the
HASH_IMR register. Setting the appropriate mask bit to 1 enables the interrupt.
The status of the individual interrupt sources can be read from the HASH_SR register.

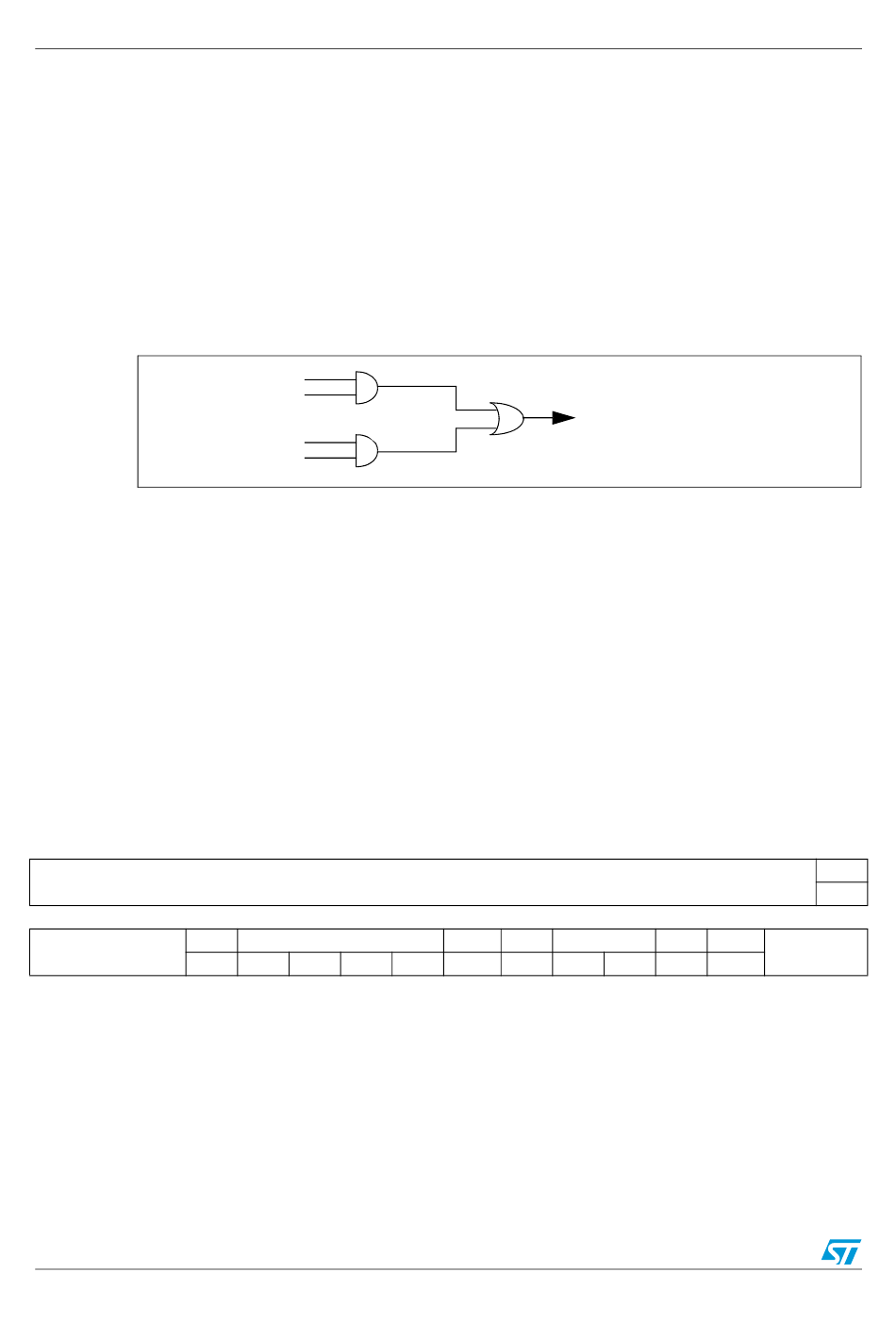

Figure 221. HASH interrupt mapping diagram

22.4

HASH registers

The HASH core is associated with several control and status registers and five message
digest registers.
All these registers are accessible through word accesses only, else an AHB error is
generated.
22.4.1

HASH control register (HASH_CR) for

STM32F405xx/07xx and STM32F415xx/17xx

Address offset: 0x00
Reset value: 0x0000 0000
31 30 29
15 14 13
DINNE
Reserved
609/1422
DCIS
DCIM
DINIS
DINIM
28 27 26 25
12 11 10 9
NBW
r r r r
Doc ID 018909 Rev 4
24 23 22
Reserved
8 7 6
ALGO[0] MODE
r rw rw
HASH interrupt to NVIC
21 20 19 18
5 4 3 2
DATATYPE DMAE INIT
rw rw rw w
RM0090
ai16086
17 16
LKEY
rw
1 0
Reserved
