RM0090

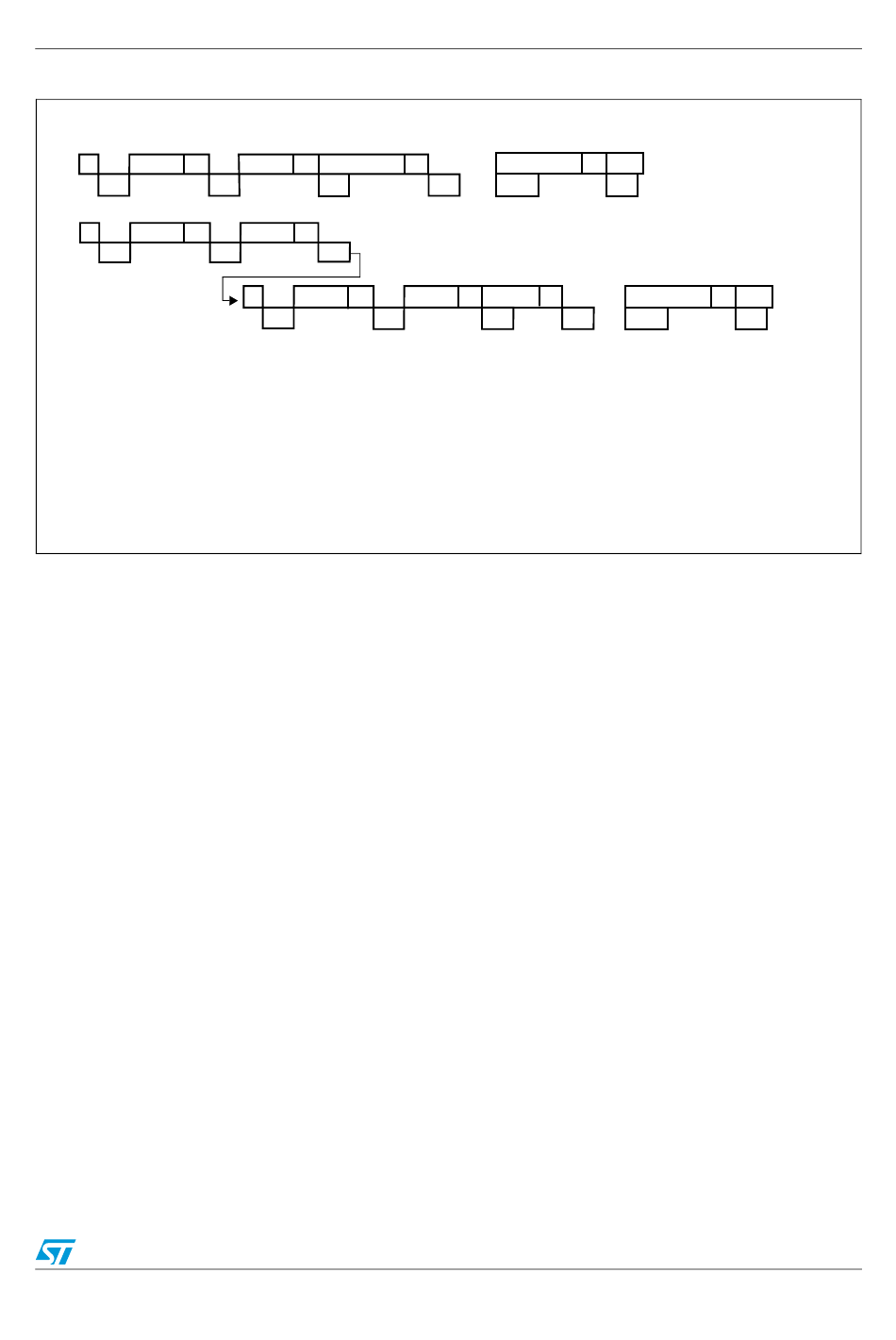

Figure 244. Transfer sequence diagram for master receiver

7-bit master receiver
S Address A
EV5
10-bit master receiver
S Header A
EV5
Legend: S= Start, S r = repeated Start, P = Stop, A= Ackowledge, NA = Non-acknowledge,
EVx= Event (with interrupt if ITEVFEN=1)
EV5: SB=1, cleared by reading SR1 register followed by writing DR register.
EV6: ADDR=1, cleared by reading SR1 register followed by reading SR2. In 10-bit master receiver mode, this sequence
should be followed by writing CR2 with SART = 1.
In case of the reception of 1 byte, the Acknowledge disable must be performed suring EV6 event, i.e. before clearing ADDR flag.
EV7: RxNE = 1 cleared by reading DR register.
EV7_1: RxNE = 1 cleared by reading DR register, programming ACK = 0 and STOP request.
EV9: ADD10 = 1, cleared by reading SR1 register followed by writng DR register.
1. If a single byte is received, it is NA.
2. The EV5, EV6 and EV9 events stretch SCL low until the end of the corresponding software sequence.
3. The EV7 event stretches SCL low if the software sequence is not completed before the end of the next byte
reception.
4. The EV7_1 software sequence must be completed before the ACK pulse of the current byte transfer.
The procedures described below are recommended if the EV7-1 software sequence is not
completed before the ACK pulse of the current byte transfer.
These procedures must be followed to make sure:
●
The ACK bit is set low on time before the end of the last data reception
●
The STOP bit is set high after the last data reception without reception of
supplementary data.
For 2-byte reception:
●
Wait until ADDR = 1 (SCL stretched low until the ADDR flag is cleared)
●
Set ACK low, set POS high
●
Clear ADDR flag
● Wait until BTF = 1 (Data 1 in DR, Data2 in shift register, SCL stretched low until a data
1 is read)
●
Set STOP high
●
Read data 1 and 2
(1)
Data1 A Data2
EV6 EV7
Address
A
EV9 EV6
S Header A
r
EV5 EV6
Doc ID 018909 Rev 4
Inter-integrated circuit (I
A DataN
.....
EV7_1
EV7
(1)
A Data2 A
Data1
EV7
EV7
2
NA P
EV7
DataN NA P
.....
EV7
EV7_1
C) interface
ai17540c
718/1422
